CLEARANCES
6
30
0
INSTALLATION

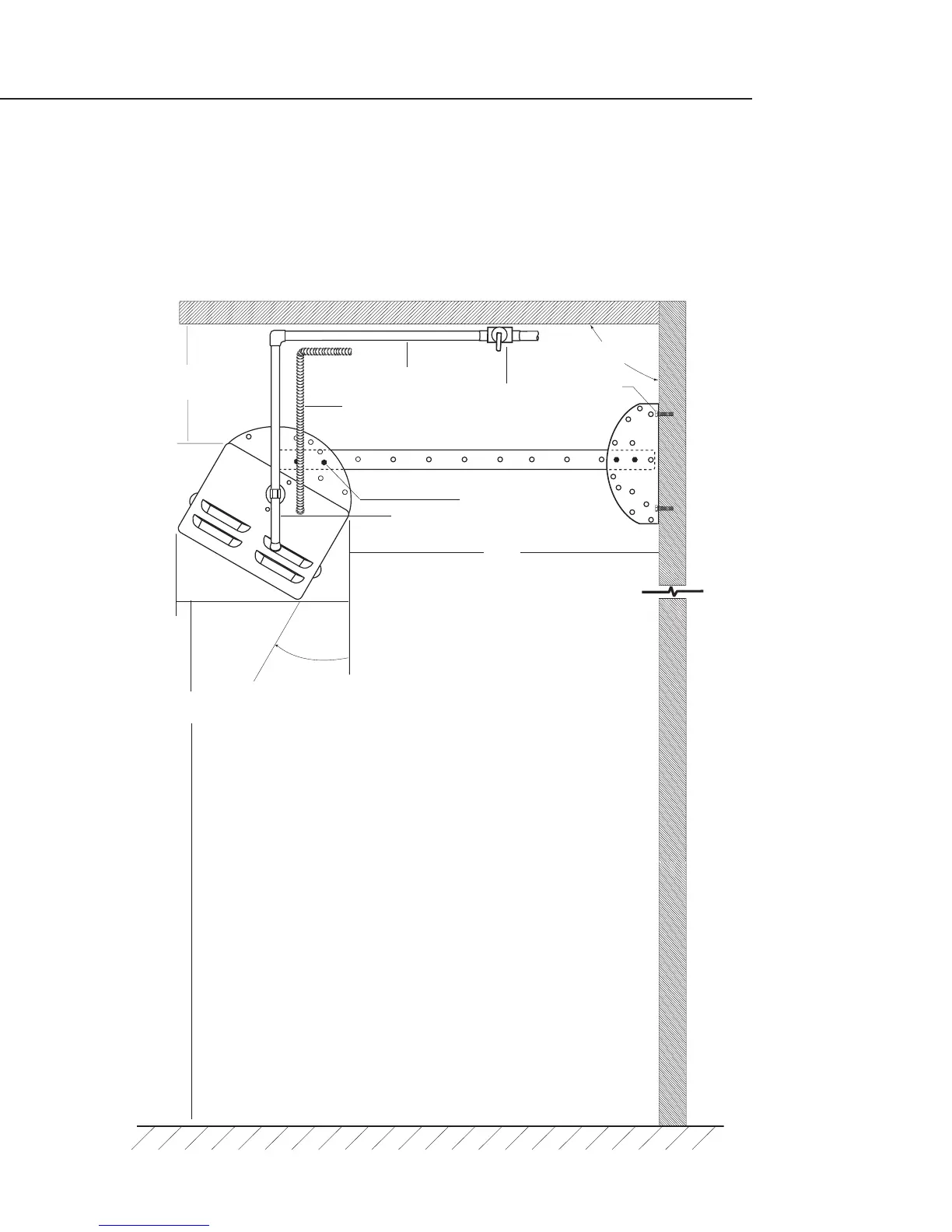

MINIMUM CLEARANCES TO COMBUSTIBLE MATERIAL.
Note: Mounting channels can be hacksawed 13” for use in 30
0
installations.
10"
SIDE VIEW
23"
30
0
max.
4 bolts per
bracket
Surface
Combustible
(installer supplied)
FLOOR
96"
1/2" Conduit
(installer supplied)
Gas Shut-off
Valve
(installer supplied)
Gas Pipe
(installer supplied)
Utilize 2
bolts (min)
per bracket.
Drip Leg
min.
Min
