11
12a

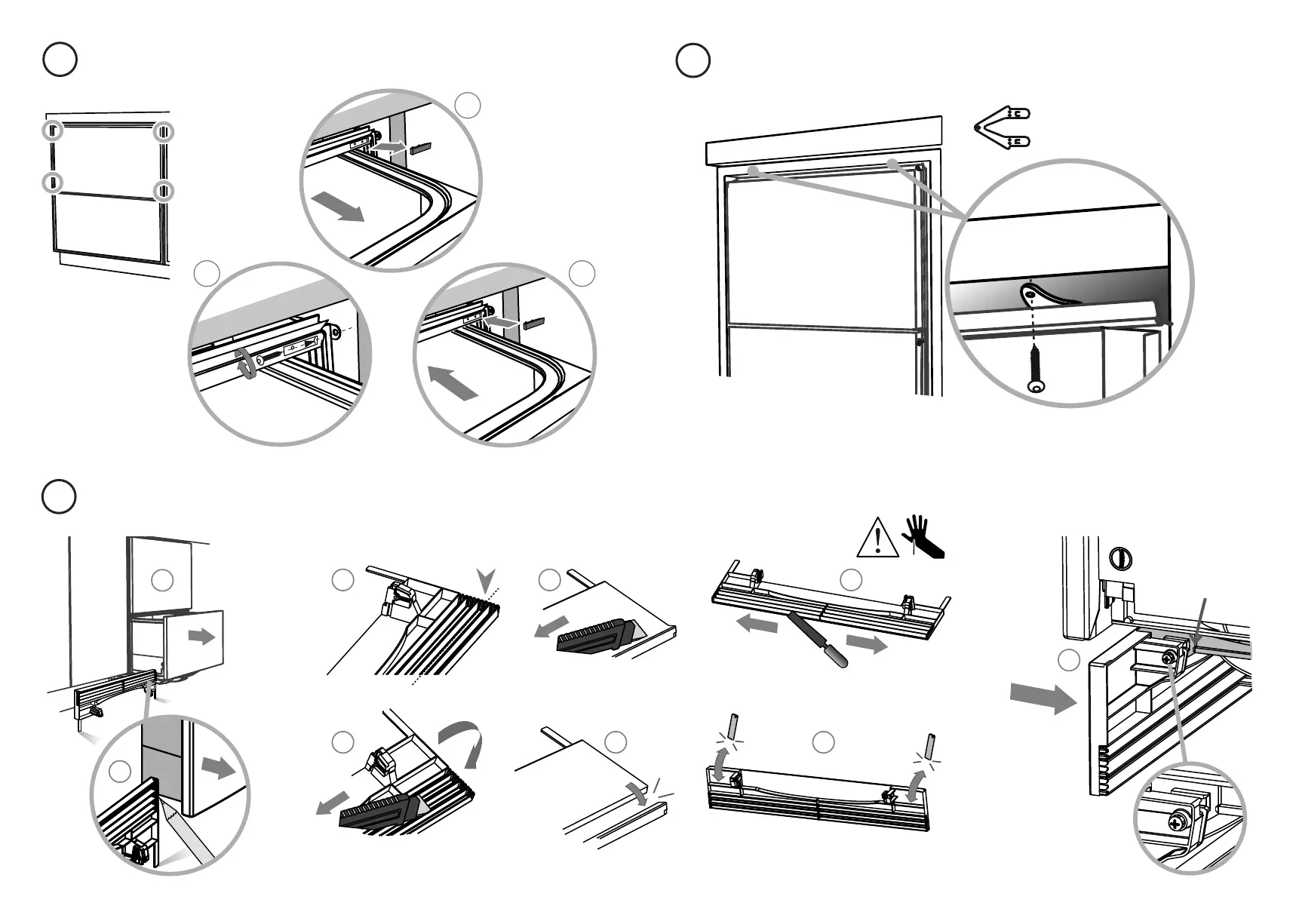

FIT THE SUPPLIED TOEKICK PANEL
3
4 6 8
5 7
9
1
2
19
19
Important!
Do not overtighten screw.
Where the toekick
meets the bottom
of the tub is the
cut-off point
Mark this point
on the toekick
with a pencil
Lay the toekick face down on
a chopping board or similiar
Smooth the edge with a file.
Be careful of sharp edges.
Snap off the two end tabs
Slide the toekick onto
the mounting rails
either side and screw
the toekick onto the
bottom of tub on
either side.
Mounting rail
Score along with a knife
Turn the toekick over and
score along the same line
Gently snap off the excess
10a
SECURE TO THE CABINETRY ON THE SIDES
1
32
Open the
drawer halfway.
Using a flat-bladed
screwdriver, prize
the gray
rubber plug out
of the trim moulding.
Replace the gray
rubber plug back into
the trim moulding
and ensure the trim
seal is facing forward.
Repeat for all
four brackets.
Using a small Philips
screwdriver,
screw through the trim
moulding, securing the
side mounting bracket
to the cabinetry.
Do not damage the
rubber trimseal.
11a
OPTIONALLY SECURE TO THE CABINETRY ABOVE
(x2)
The top mounting
brackets will only bend
upwards a maximum
of ⁄” (10 mm).
