14
x4
12b

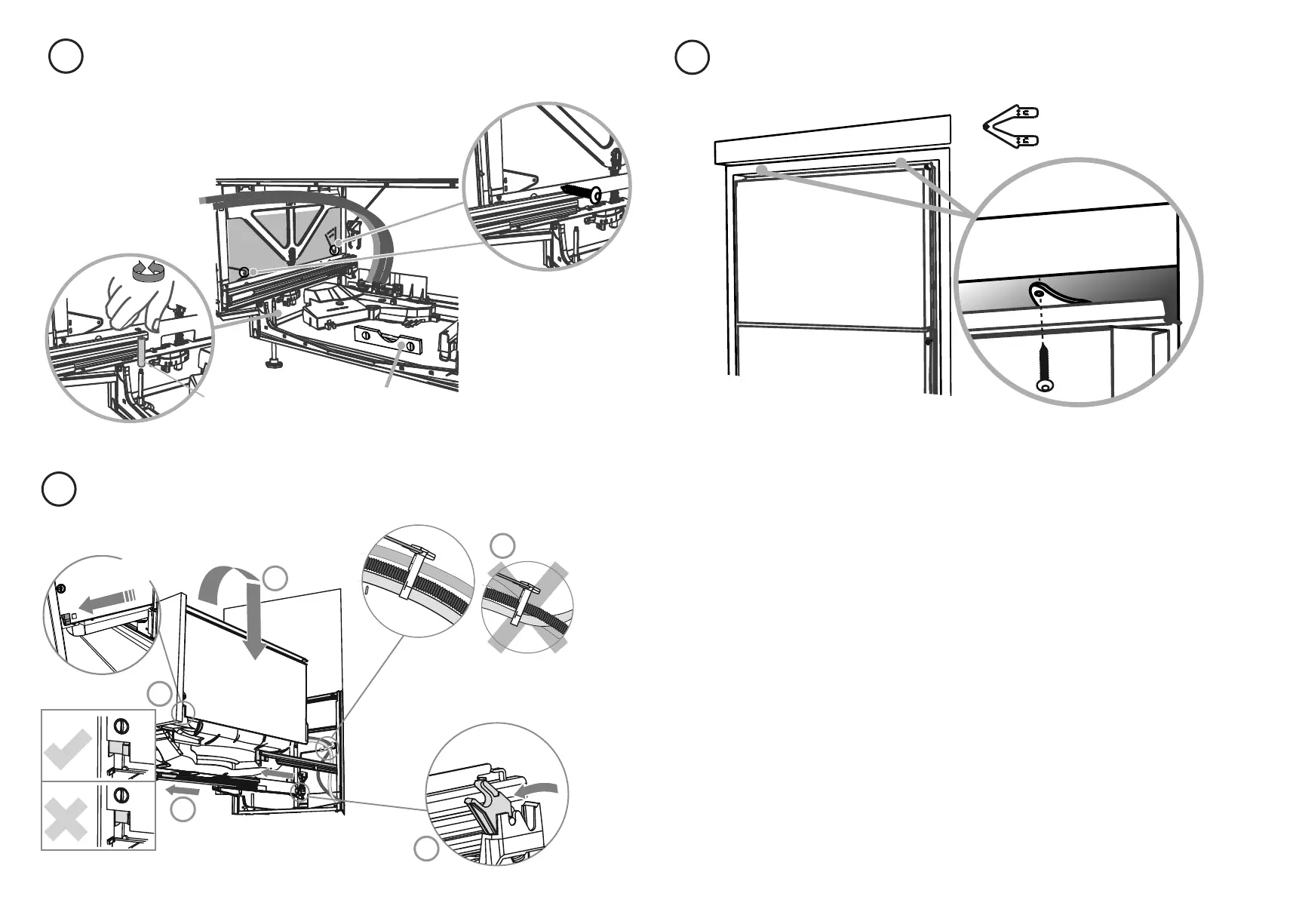

REFIT THE DRAWER ONTO THE RUNNERS
10b
To access the side brackets,
you might have to push aside
the insulation. After securing,
ensure the sound insulation is
repositioned correctly.
Secure using two pairs
of formed brackets
(use ⁄” (16 mm)
screws). Repeat on
the other side of the
chassis.
11b
OPTIONALLY SECURE TO THE CABINETRY ABOVE
(x2)
The top mounting
brackets will only bend
upwards a maximum of
⁄”(10 mm).
SECURE TO THE CABINETRY ON THE SIDES
For further adjustment,
using the most appropriate
length Hexagonal socket
supplied, fully extend
leveling feet up to required
distance by hand.
Ensure product is level and
aligning with cabinetry.
Hexagonal
socket
13
14
15
16
19
Before refitting the drawer,
ensure the hoses are not
twisted and the latches at
the rear of each drawer
runner are facing forward.
Ensure the release tabs on
both sides are reset fully.
Ensure the drawer
is now rotated
clockwise back.
Pull forward the release tabs
on both sides 4”(100
mm)
1
2
3
4
5
