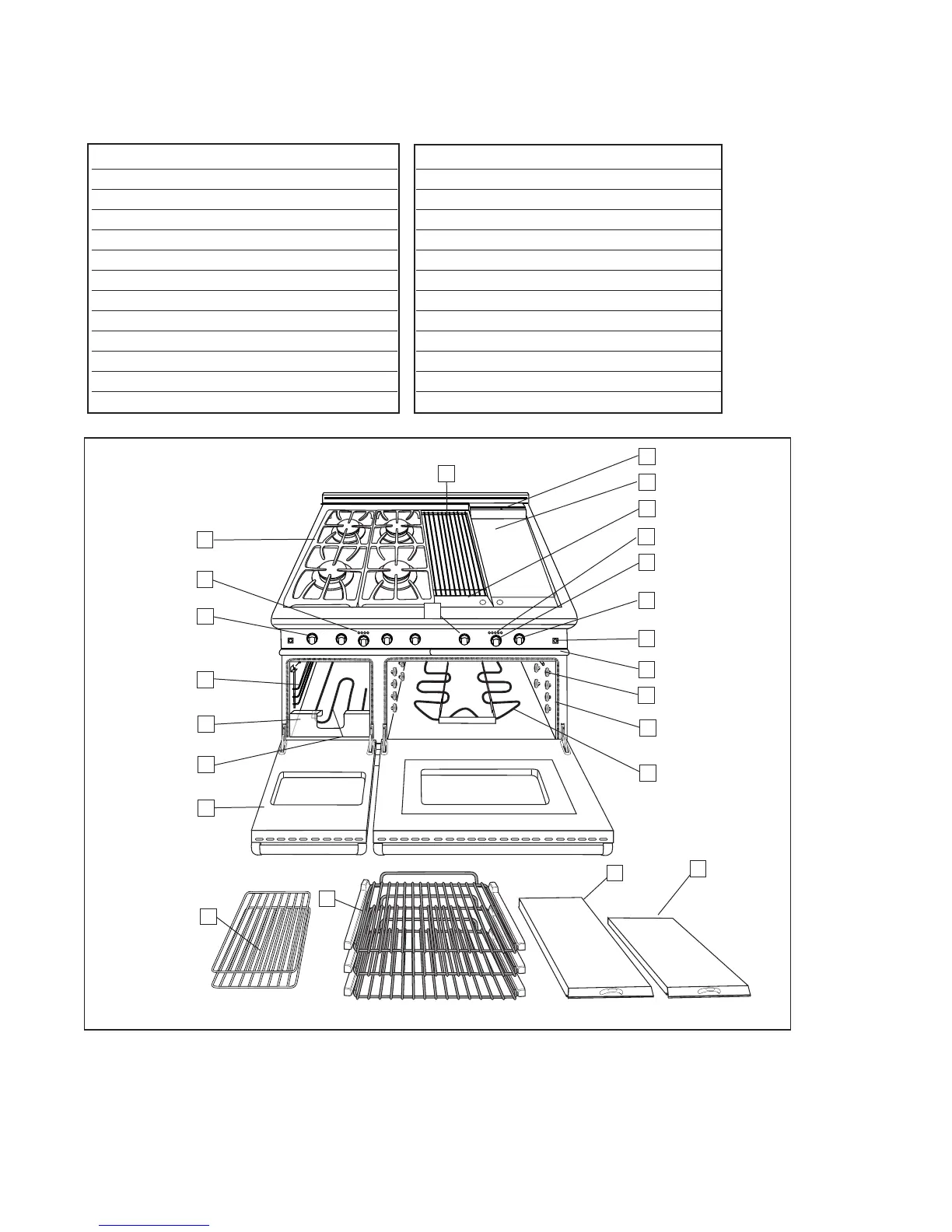

PARTS IDENTIFICATION
* Rating Plate Located
on the back panel
Item DescrIptIon
1 Grill
2 Burner Grates
3 Griddle
4 Grill Grates
5 27” Oven Control Knob
6 Griddle Control Knob
7 Oven Light Switch
8 Oven Door Gasket
9 Oven Heating Element Bake
10 Grill Control Knob
11 12” Oven Control Knob
12 Burner Control Knob
Item DescrIptIon
13 Oven Rack Slides
14 12” Oven Crumb Catch Tray
15 Oven Heating Element
16 12” Oven Door
17 12” Oven Rack
18 27” & 24” Oven Racks
19 Drip Tray
20 Griddle Flue Cover
21 Push Button Selectors
22 Rack Rollers
23 Grill Cover
24 Griddle Cover
