Removing the Reservoir:
Remove the escutcheon panel from the inside of the unit.1.
Remove the cutter-grid (see Figure 6.1).2.
Remove the four screws that secure the ice deector.3.
Remove the ice deector.4.
Drain the reservoir by removing the drain plug located on the bottom of the reservoir.5.
Remove the two screws and spacers that secure the reservoir (see Figure 6.2).6.
Remove the reservoir by lifting the drain tube o the reservoir and away from the circulation pump (see Figures 6.3 and 6.4).7.
Installing the Reservoir:
Slide the circulation pump into the reservoir.1.
Insert the reservoir drain tube tting to the drain tube in the back of the liner.2.
Tilt the reservoir forward and line up the screw holes in the reservoir with those of the liner.3.
Insert the spacer to the outside of the reservoir and then the screw and plastic washer to the inside of the reservoir. Repeat 4.
for the other side.
Route the water line from the circulation pump between the liner and the reservoir and through the clamp attached to the 5.
evaporator. This will keep it away from the path of the ice slab (see Figure 6.5).
Reinstall the ice deector.6.
Reinstall the cutter-grid.7.
Plug the cutter-grid into the receptacle on the side of the liner. Route the plug wire between the reservoir and liner. This will 8.
keep it away from the path of the ice slab.
Reinstall the escutcheon panel. Adjustment to the brackets may be necessary to align the escutcheon panel.9.

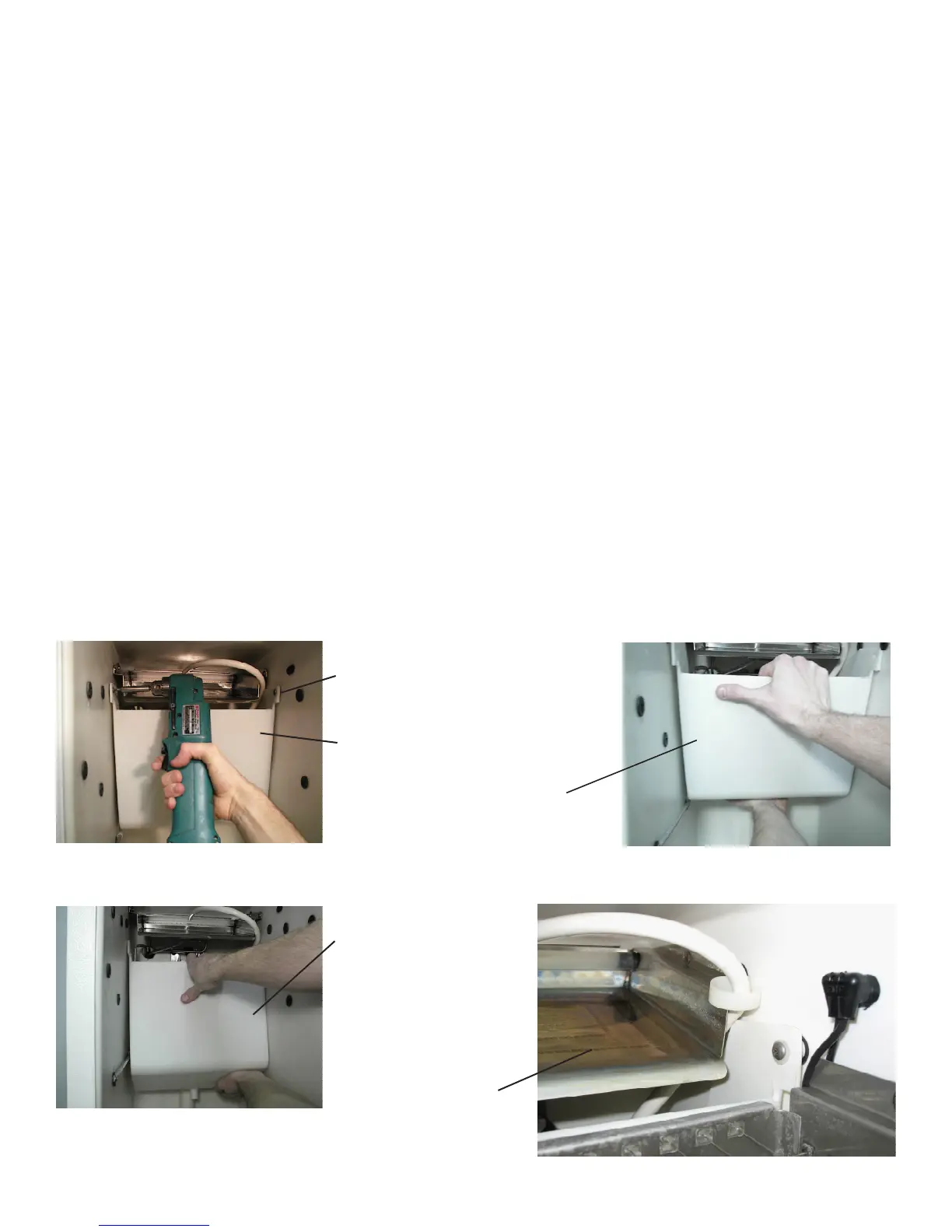

Figure 6.2
Figure 6.3
Figure 6.4
Figure 6.5
Remove the two screws and spac-
ers at the reservoir.
Reservoir
Gently lift reservoir o drain tube.
Lower the reservoir to clear
the circulation pump.
Make certain that the water
line is in the clamp and
away from the path of the
ice slab. Otherwise, the ice
slab may hang-up.
INTERIOR COMPONENTS
