DCS WO-130SS - Component Access; Rear Components Access

Component Acces s
34
REAR COMPONENTS
NOTE: Power to the oven must be turned off before servicing the oven.
STEP 1
Using an oven dolly, pull the oven from its cutout. With a 5/16” socket, remove the eleven (11) screws
securing the cover to the oven.
STEP 2

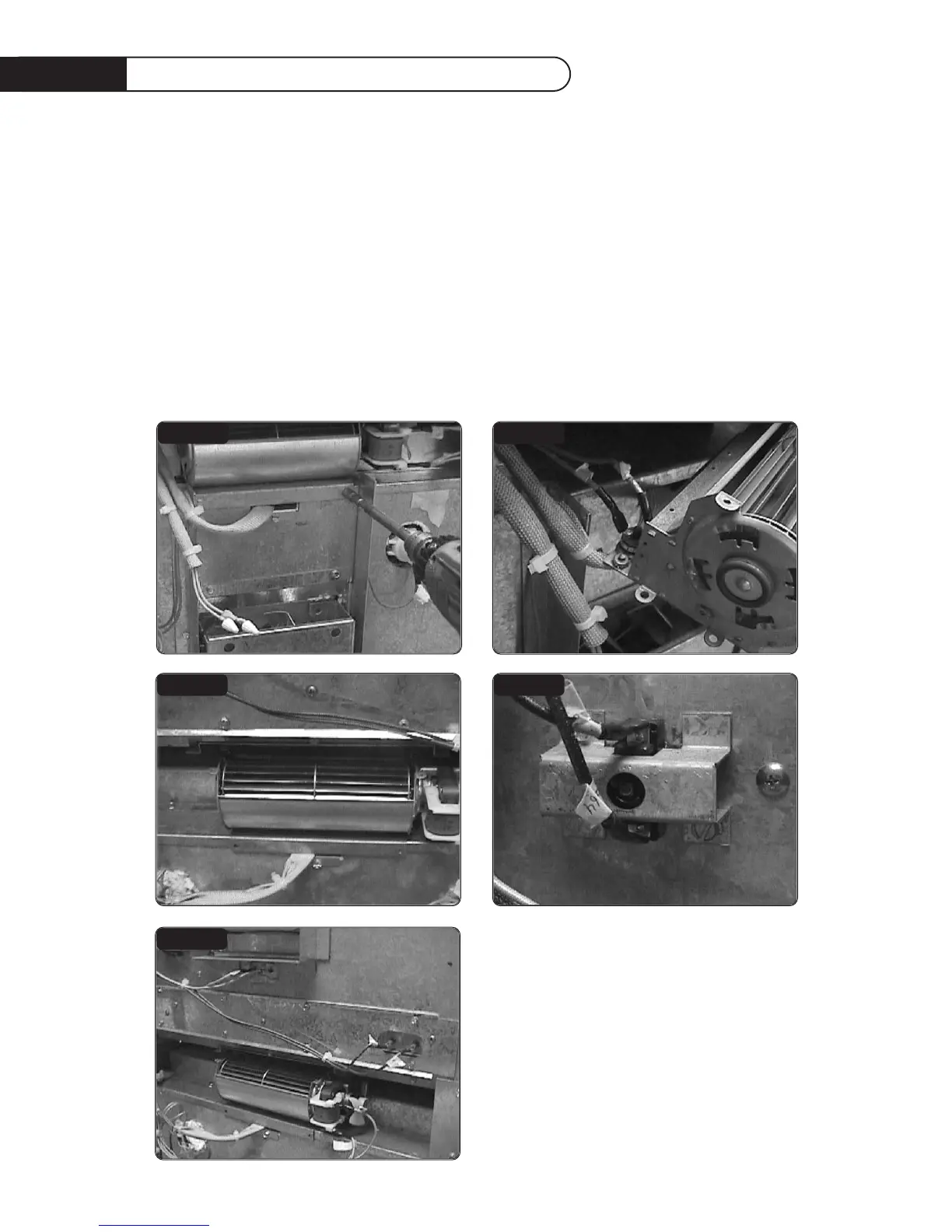

You will now have access to Blower Motor, Blower Thermostat, High Temperature Cut-out and Bake
Elements (figs 07 & 09).
FIG.06
FIG.07
FIG.05
FIG.08
FIG.09
Hi-Temp
Cutout
Bake
Element
