- 7 - 100.6702.6

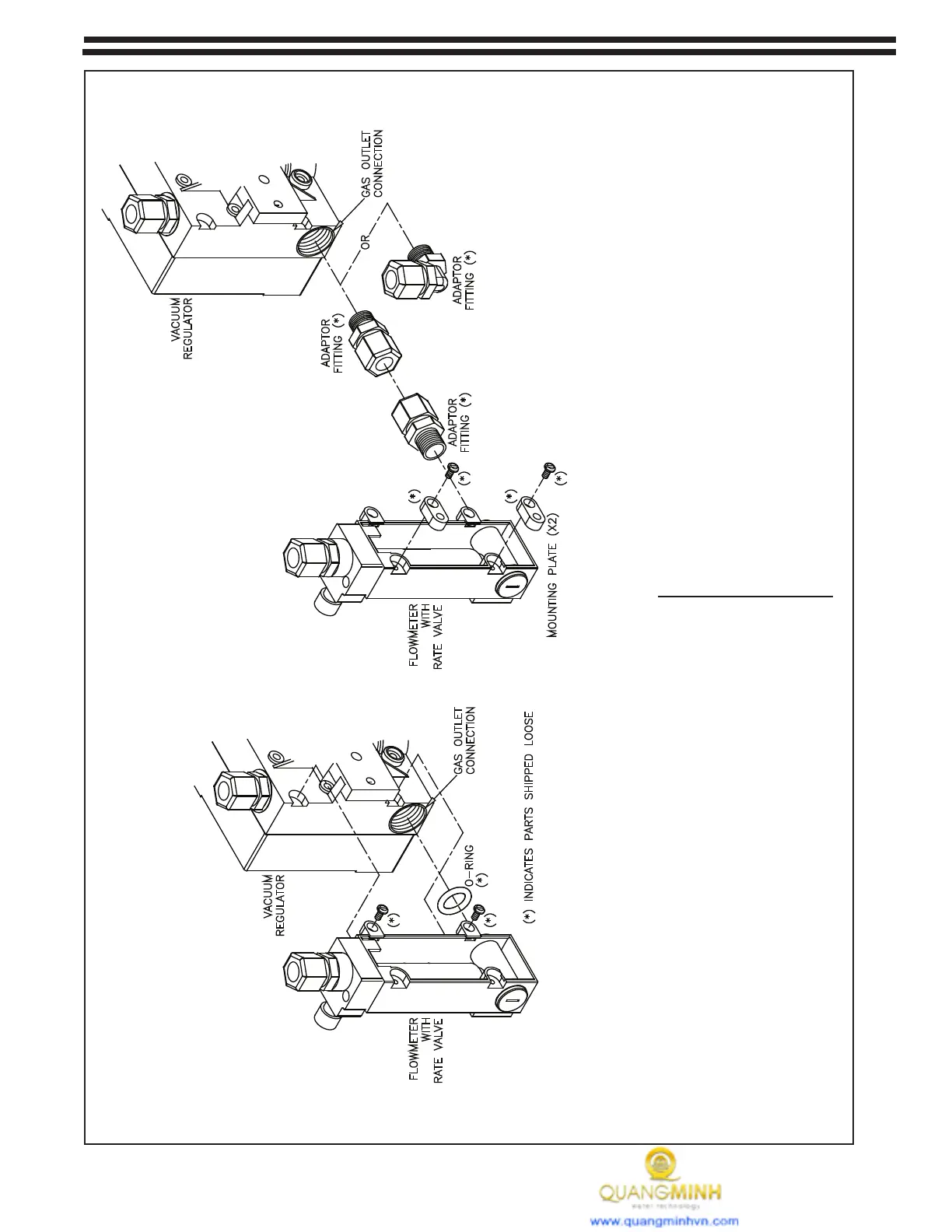

Figure 2 - Basic Assembly Procedures
INTEGRAL MOUNTING
METER ASSEMBLY ON VACUUM REGULATOR
Seat the seal O-ring in the outer counterbore of the gas outlet con-
nection of the vacuum regulator. Then mount the flowmeter-rate valve
assembly on the side of the regulator as indicated.
Set aside the mounting plates and adaptor fittings (loose packaged to
permit for optional wall mounting) which are not needed in this applica-
tion.
PREPARING METER ASSEMBLY
FOR WALL MOUNTING
Install the mounting plates on the rear of the meter assembly as indi-
cated. Then install the adaptor fitting(s), as required, in the gas outlet
connection of the vacuum regulator(s).
If only one flowmeter-rate valve assembly is used, install the adaptor
fitting, as indicated, in the gas inlet connection of this component. Then
mount as described in Figure 5 and complete the interconnections as
shown in Figure 1. Or, if two or more meter assemblies are used, pro-
ceed as directed in Figure 3.
