DECATHLON SERIES GAS FRYERS
CHAPTER 1: SERVICE PROCEDURES
1-27
1.7.8 Replacing the Frypot (cont.)
20. Remove the burner shield. Loosen burner
bolts (two per burner) that secure burners to the
burner support rail.
NOTE: On most fryers, do not remove bolts
from burners. Some fryers have an additional
bracket that warrants removal of the burner
bolts.
21. Lift each burner upward to clear the orifice,
and slant the top of the burner inward to clear
the burner-brace keyholes.
NOTE: On older Decathlon fryers, the right-
center and center burners cannot be removed
until the trailing pilot assembly is removed
(explained in Step 22).
22. On Decathlon fryers with a burner-mounted
trailing pilot, loosen the bolts securing the pilot
assembly to the burners and remove.
NOTE: Current production units do not
require removal of trailing pilot when
removing burners.

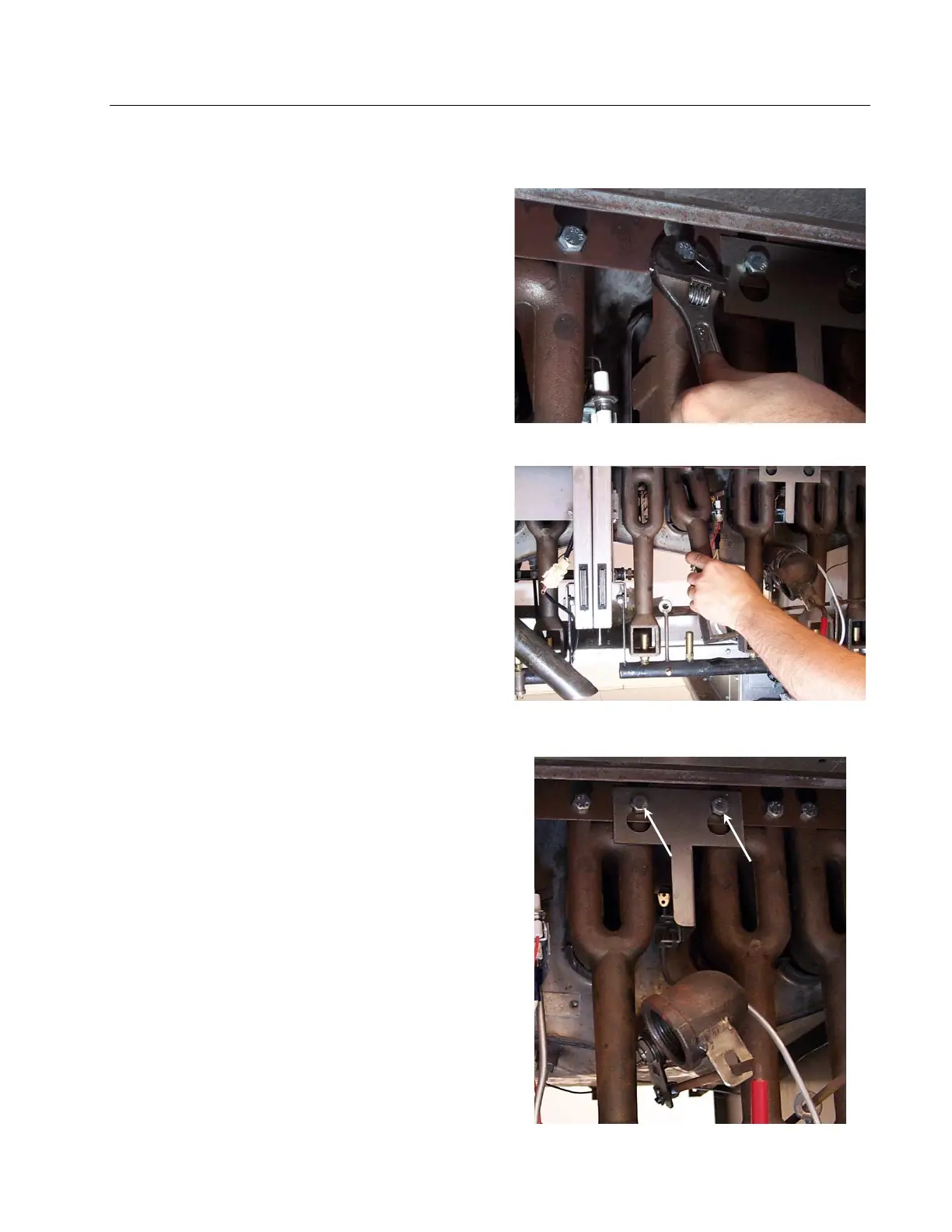

Loosening burner bolts prior to burner removal.
Old-style trailing pilot bracket is mounted on burners.
Removing burners from fryer.
