DECATHLON SERIES GAS FRYERS
CHAPTER 2: PARTS LIST
2-17

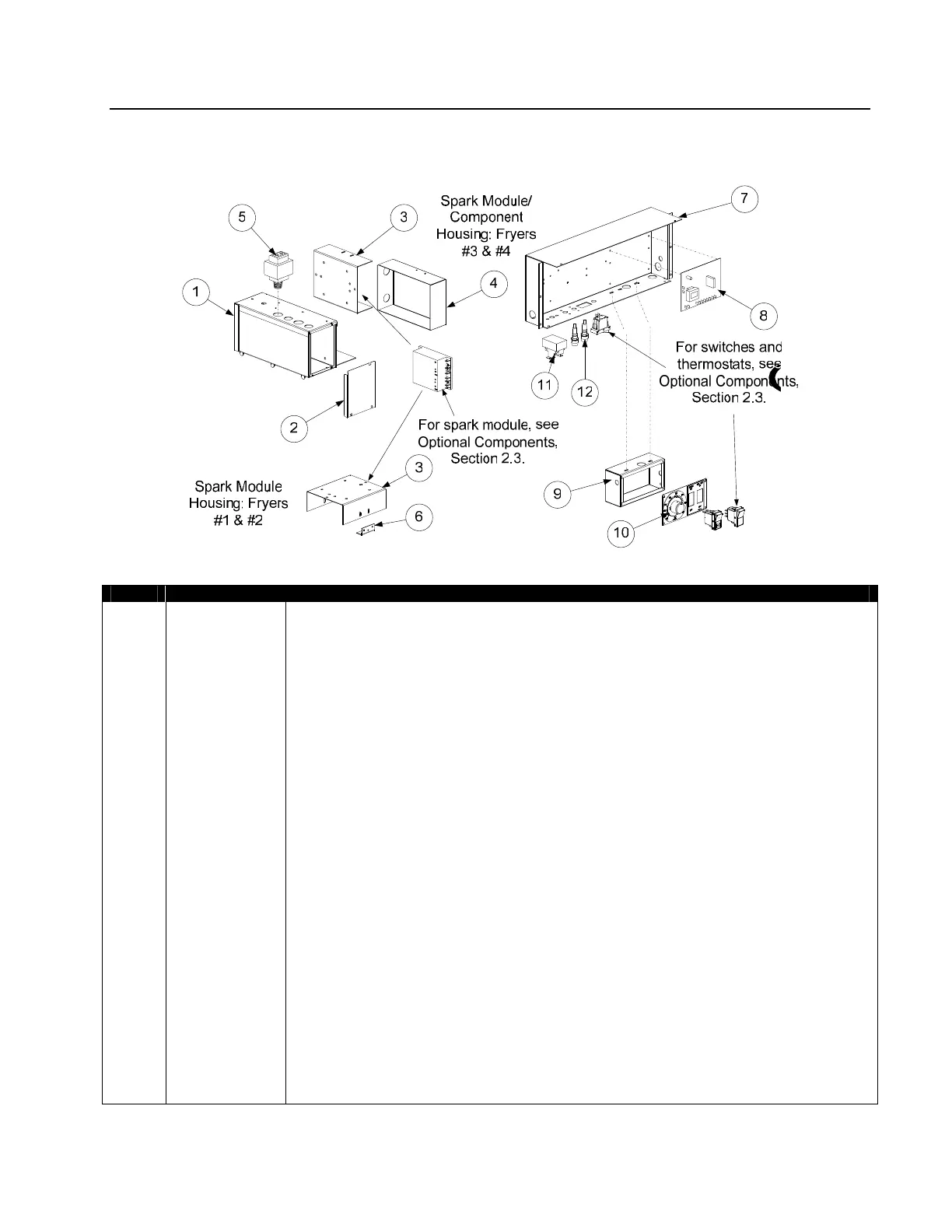

2.4 Transformers & Component Boxes; Multi-batteried Decathlons
ITEM PART COMPONENT
1 823-3242 Control Box (D50/CFD50/SCFD50)
* 106-2691 Control Box (FPD65)
2 210-1364 Plate, Face (for Item 1)
* 210-2966 Plate, Face (for Item 1, FPD65)
3 200-1322 Bracket, Spark Module
4 200-1326 Cover, Spark Module (Fryers 3 & 4)
5 807-3551 Transformer
6 200-2307 Bracket, Spark Module Attachment (Fryers 1 & 2)
7 824-0961 Wireway, Control Panel (D50)
* 824-0951 Wireway, Control Panel (D60)
* 824-1195 Wireway, Control Panel (SCFD models)
* 824-1162 Wireway, Control Panel (D80)
8 826-2086 Thermatron Board, 115/230V
* 106-3729 Thermatron Board, 24V, Melt Cycle
* 826-2088 Kit, Thermatron, 24V
* 826-2031 Kit, Thermatron, 115/220V
9 200-3212 Housing, Electronic Thermostat, Two Cut-outs
10 210-3214 Face Plate, Electronic Thermostat, Power/Boil-out
* 807-3536 Potentiometer, Electronic Thermostat (spade terminals; with trim resistor)
* 106-0801 Potentiometer, Electronic Thermostat (molex connector; with trim resistor)
* 106-5809 Potentiometer, Electronic Thermostat (molex connector; without trim resistor)
* 816-0534 Knob, Electronic Thermostat Potentiometer
11 807-3680 High-limit Thermostat, Manual Reset 450° F (non-CE only)
* 807-3559 High-limit Thermostat, Manual Reset 435° F
* 807-3560 High-limit Thermostat, Manual Reset 410° F (CE only)
* 106-1131SP Harness, Spark Module
* 807-3592 Fuse, 2A, Slow Blow
* 807-3577 Circuit Breaker, 7 amp
* Not illustrated.
