Air Conditioning Option - Outdoor Air Condensers (OACC)
Packaged AC option (built-in outdoor air condenser) is a
standard one for this type of dehumidifier, however it could
be provided with remote AC option – remotely installed
Outdoor Air condenser or Fluid Cooler
Basic views of remote outdoor air condensers are shown on
Pic.C.4-C; standard combinations of the dehumidifier and
respective air conditioning option (based on their
capacities) are shown in Table C.1.
* Table C.1 shows standard dehumidifier and
condenser combination; depending on number of factors,
dehumidifier may have different condenser provided with it
- refer to the dehumidifier’s submittal documentation for
more details.
** Two-compressor dehumidifier would normally
have paired-up two outdoor condensers of respective size
(one per compressor).
For example, DS08D would have double-
condenser, composed of two NC-Z-1 (see
Pic.C.4, Fig.1).
Table C.1. Dehumidifier-AC Combination*
Dehumidifier – Outdoor Condenser**
Fig.#
DS020
NC-B
1
DS025 – DS040
NC-Z-1
2
DS050 – DS080
NC-Z-2
3
Attention!
Equipment Clearances and Dimensions!
Proper clearances should be maintained for
adequate airflow and heat rejection! Generally, up
to 36” side and 96” top clearances are required. For
more information on clearances as well as
equipment dimensions and other details, refer to
the submittal documentation.

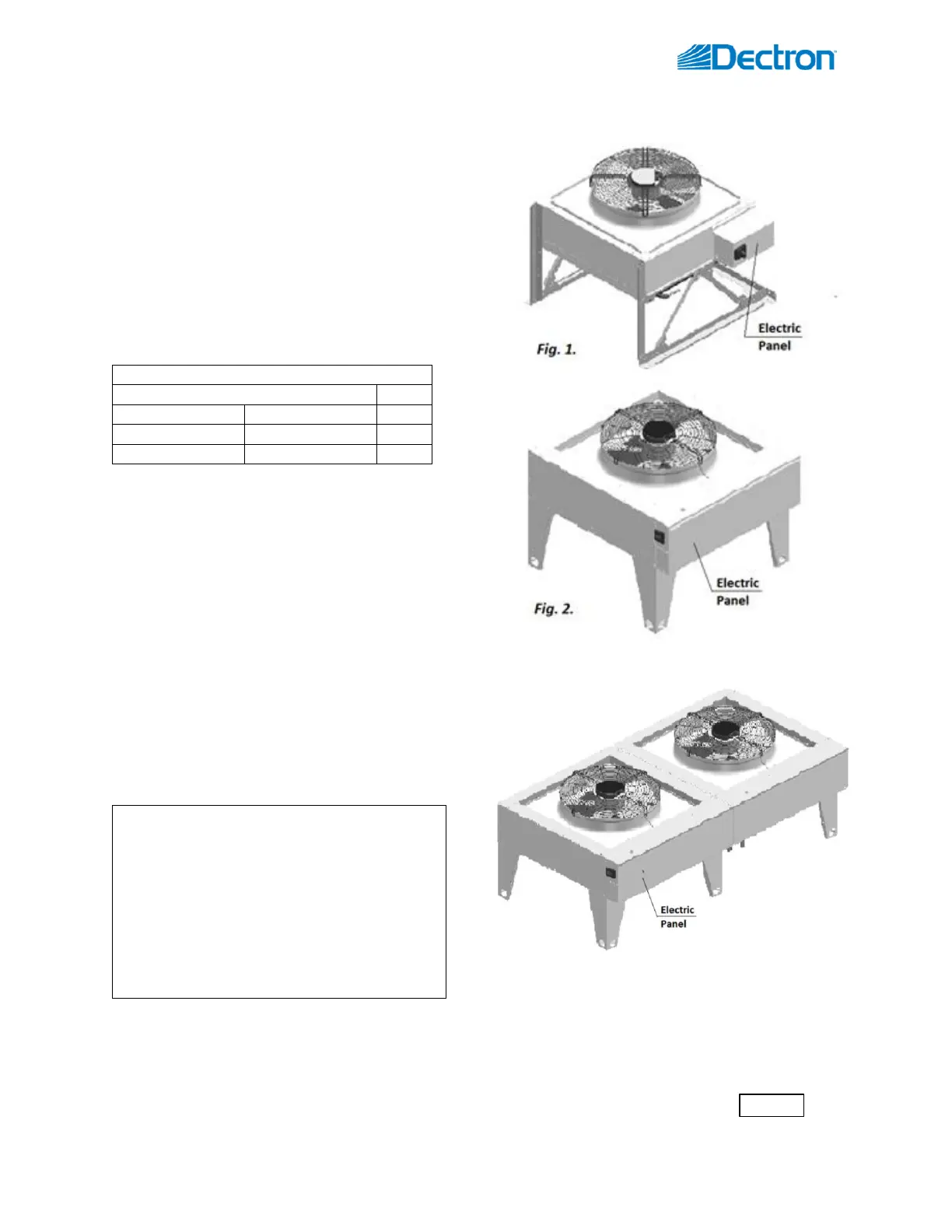

Pic. C.4-C
Fig. 3.
