Dectron DS Series – Outdoor OMM 6 September 2020
This configuration somewhat
limits the RA and SA options – refer
to your dehumidifier submittal.
Outdoor gas heater package
can also accommodate optional Full
Flow Pool Water Heater – refer to
submittal documentation for such
option additional details.
Dehumidifier External Systems Connection – SLX Cab

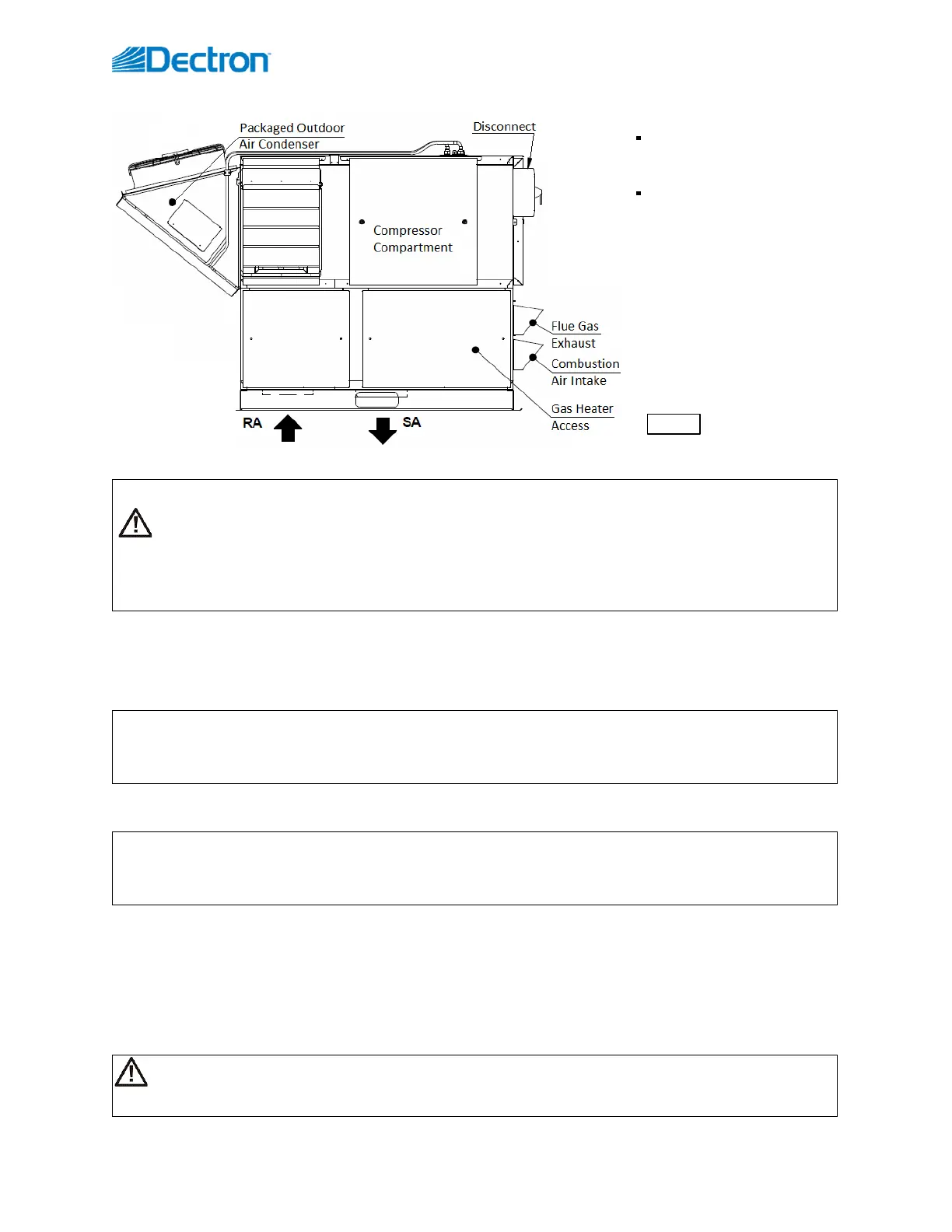

Pic. C.1 shows provisions for external systems connections, including ductwork, electric power and control wires
and various piping connections.
• Except for the condensate, all other piping systems are optional and may not be present in each dehumidifier.
• Electrical Power to be brought to the dehumidifier disconnect.
• Pool Heating and Space Heating water connections, as well as control wiring, are normally brought through
the pipe chase, located in the compressor compartment floor.
• Remote AC option (Outdoor Condenser or Fluid Cooler) piping connection: top (same as packaged AC option).
• Gas line. If the dehumidifier is equipped with a gas heater package for space heating purposes, the gas line
connection is to be brought to the gas heater directly.
Attention! Equipment Clearances and Dimensions!
CAUTION! For equipment proper operation, maintenance and service, respective clearances should be
maintained. Generally, 30” clearances to the equipment must be kept for the maintenance and service purposes.
For the specific required clearances information, as well as dehumidifier overall dimensions, distances to pipe
connections, duct connections etc., refer to the submittal documentation.
NOTE. Dehumidifier MUST be equipped with a P-trap at the condensate connection for proper operation! If
dehumidifier is requested/provided from the factory without P-trap, one MUST be installed on site prior to
dehumidifier being commissioned. Refer to the dehumidifier stickers and Installation Manual for details.
CAUTION! Current manual shows general/default connections’ location. For details regarding specific
dehumidifier’s connections (actual location, piping sizes and position dimensions, circuit type and flow direction
etc.), refer to the dehumidifier’s submittal documentation as well as dehumidifier’s labels and stickers.
WARNING! Gas Line. The gas line must be installed in accordance with respective device documentation
(boiler, furnace, etc.) and local codes and regulations.
