Electrical diagram
Only qualified professionals may carry out electrical connections, always with the power off.
Earth the appliance before making any electrical connections in accordance with standard NFC 15-100 and current
norms.
The appliance must be supplied by a special line protected upstream by an omnipolar circuit breaker switch
The cable cross-sections are given as a guide only. The installer is responsible for checking that these comply with
current norms.
MUSE 40-2
MUSE 50-2
MUSE 60-3
MUSE 80-3
MUSE 100-4
MUSE 120-5
Voltage/Frequency values
V/Hz
220-240/50
220-240/50
220-240/50
220-240/50
220-240/50
220-240/50
Nominal current in cooling mode
A
5.4
7.6
8.3
10.7
18.7
20.6
Maximum current
A
10
11
13
16
22.5
24.5
Power cable cross-section
mm2
3G1.5
3G1.5
3G1.5
3G2.5
3G4.0
3G4.0
Circuit breaker
C16A
C16A
C16A
C20A
C25A
C25A
Cross-section of cable connecting
the indoor and outdoor units
mm2
4G1.5
4G1.5
4G1.5
4G1.5
4G1.5
4G1.5

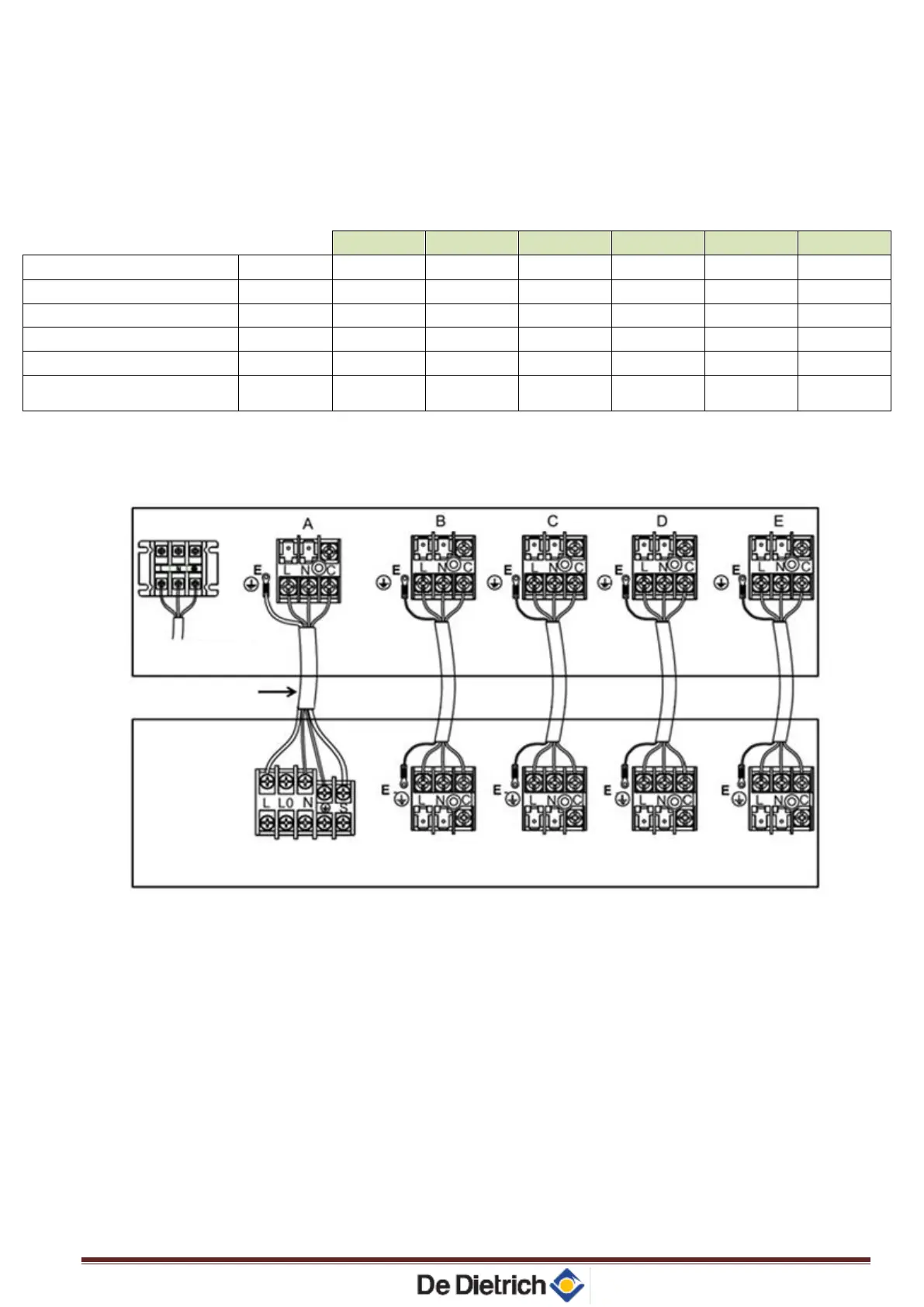

Connect the main supply to the outdoor unit and make the connection as shown in the diagram below:
The connection cable on indoor units must be connected to the corresponding terminal block. If not, this will cause
the unit to malfunction or may even damage the equipment.
- The diagram above is just one example of 5x1 outdoor units connected. Wall-mounted, ceiling-
mounted/consoles, cassettes and ductable units can be connected to any terminal on the outdoor unit.
- Ensure that the earth wire is connected correctly, to avoid the risk of certain electrical components
malfunctioning and to avoid causing a shock or a fire.
- Do not reverse the polarity.
OUTDOOR UNIT
POWER SUPPLY CABLE
WALL-MOUNTED
INDOOR UNIT
CONSOLE/DUCTABLE/CASSETTE
INDOOR UNIT
INDOOR UNIT
