20181270 CR v8-2019Page 45

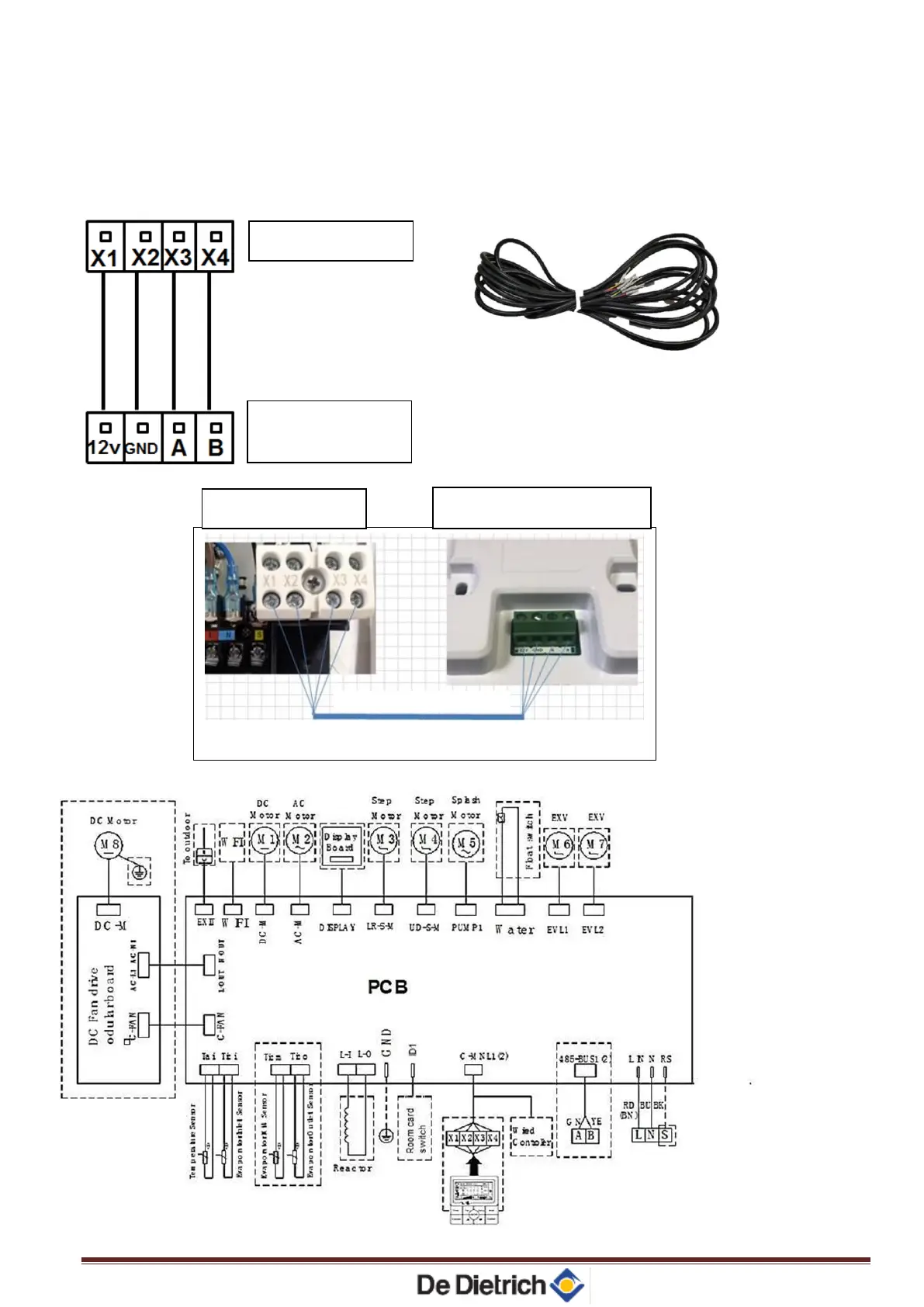

CONNECTION TO THE WIRED REMOTE CONTROL FOR CONSOLES AND DUCTABLE UNITS
For ductable units, the wired control is supplied as standard
- Connect the wired remote control, using the cable provided, to terminal block X1, X2, X3, X4 on the
indoor unit. Follow the colour code and ensure that the connection terminals on the wired remote
control are correctly connected to the terminal blocks on the indoor unit as follows:
