PAGE 6 OF 12

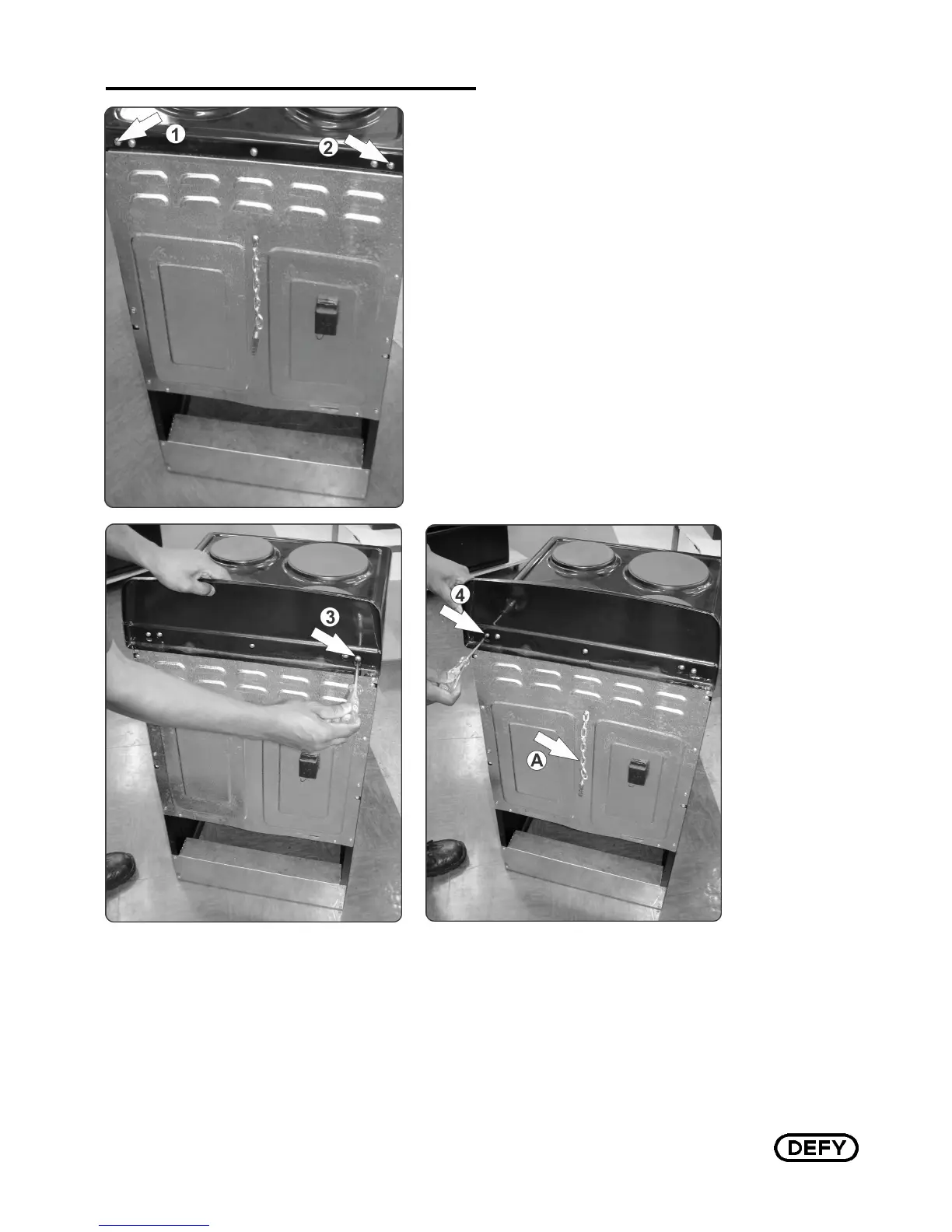

Fitting the removable splashback
Remove the splashback (recessed in the
polystyrene) from the polystyrene packaging.
Loosen screws numbered 1 and 2 on the
stove.
Align the 2 splashback key slotted holes with
the 2 holes on the back of the stove.
Slide the key slotted holes of the splashback
over the loosened screws and gently push
the splashback into position.
Please see instructions on the previous page regarding correct fitment and
securing of the anti tilt mechanism (A) to the wall.
Fasten the screws 3 & 4 to secure the splashback in place as indicated in the
diagrams above.
