Defy 600STW - Eye-Level Installation; Hob Installation

NOTE
Defy Slimline undercounter ovens may be installed at eye level if so desired.
This will require the purchase of a wiring extension kit (part No. 061120) from the
nearest Defy Service Centre

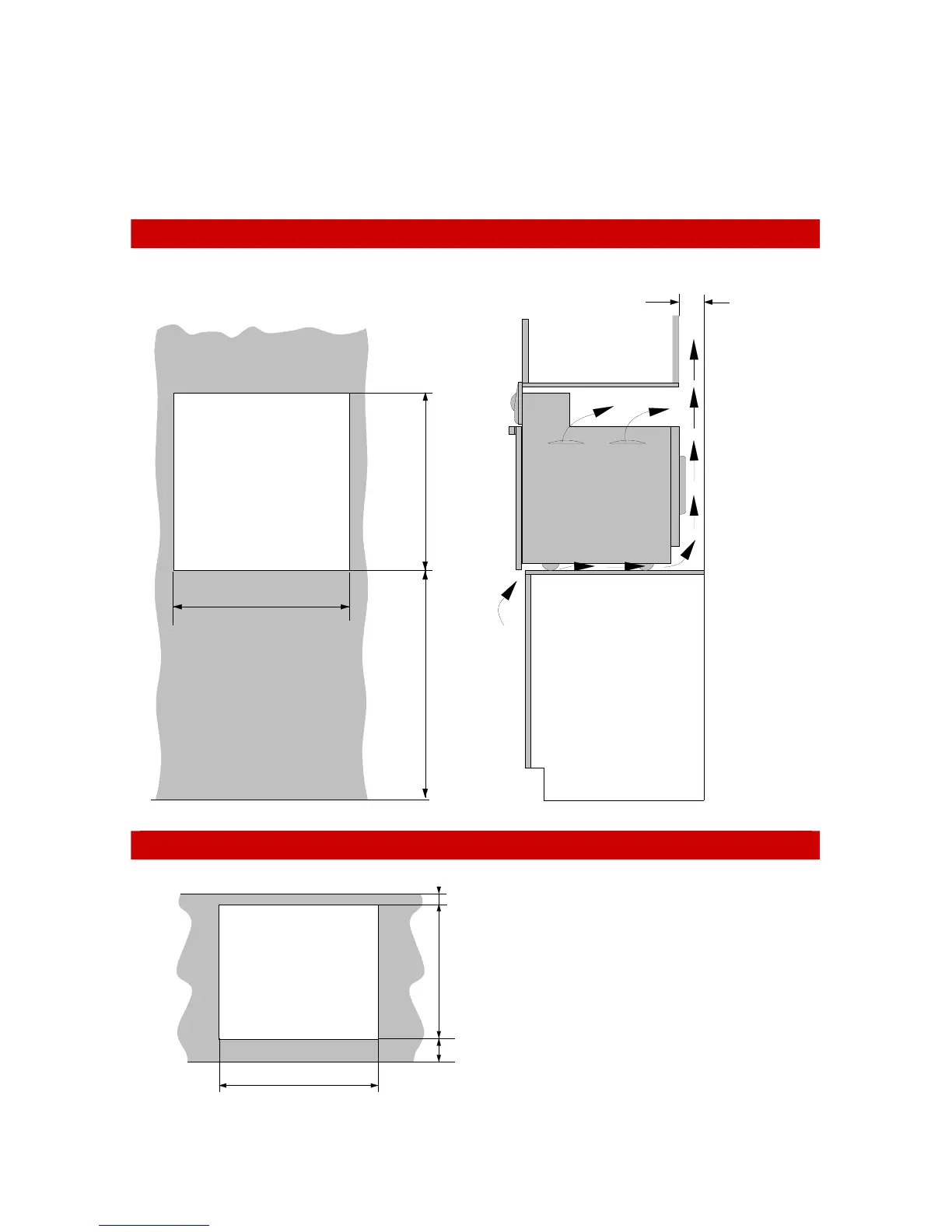

EYE-LEVEL INSTALLATION model 600C, optional for 600S and 600ST
590
Aperture
Typical section showing
ventilation requirements
Aperture
590 H x 565 W x 570 D
565
Aperture
900
Above floor
level
Floor
60
+
_
3
0
+
_
3
0
+
_
3
0
+
_
3
0
HOB INSTALLATION
57 0
80
Worktop front
480
+
_
3
0
+
_
3
0
+
_
3
0
( 40 )
MODELS
600SP – CP
600SP—NCP
600 Ceran—NCP
