Page 18

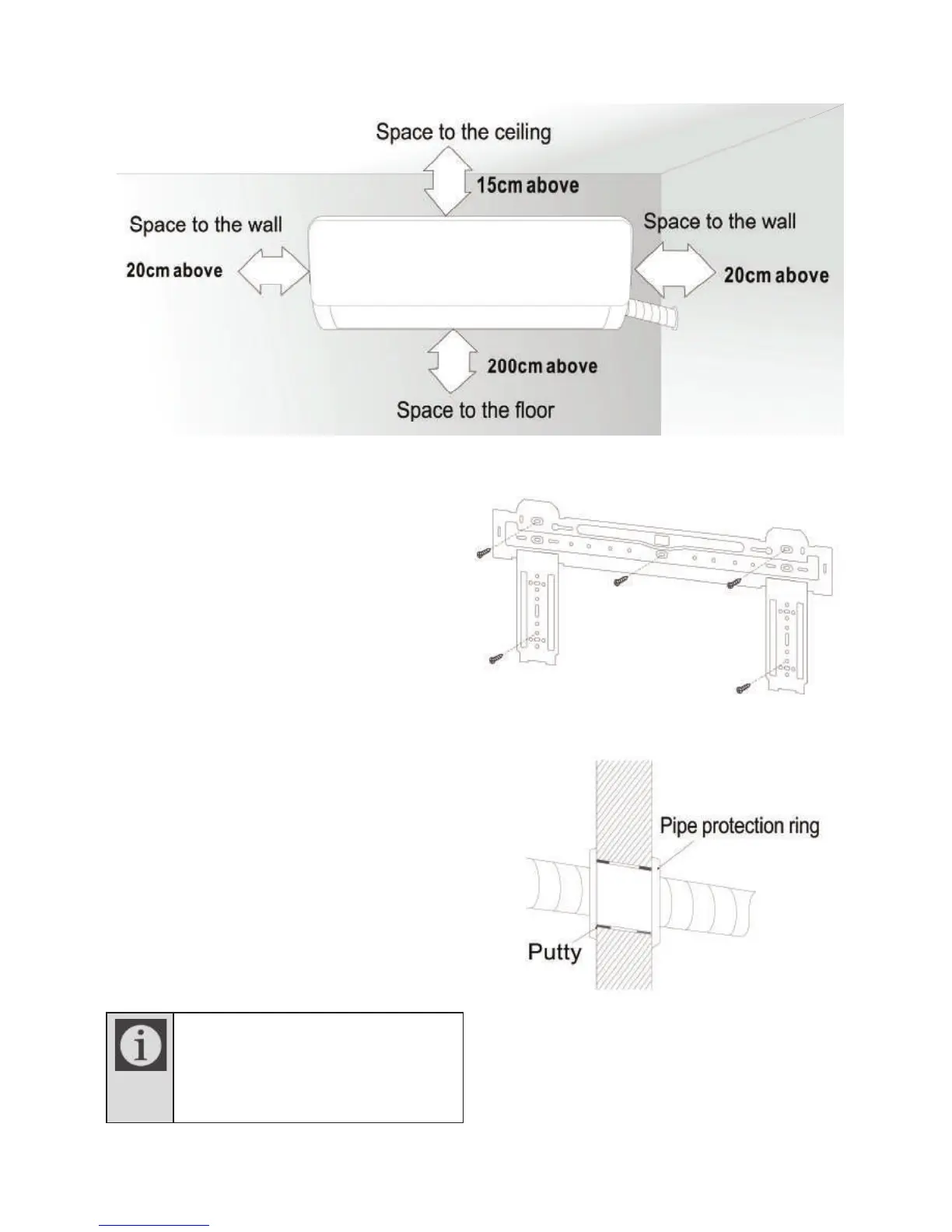

1. The wall for installation of the indoor unit
shall be hard and firm, so as to prevent
vibration.
2. Use the "+" type screw to fasten the peg
board. Horizontally mount the peg board on
the wall and ensure that it is mounted
squarely.
3. Check the peg board by hand after the
installation and check whether it has been
securely mounted.
Installation of indoor unit
Mounting plate
1. Make a hole with an electric hammer or a
water drill at the predetermined position on
the wall for piping. The hole must slant
outwardly by between 5°-10°.
2. To protect the piping and the cables from
being damaged running through the wall,
and from the rodent damage, a pipe
protecting ring shall be installed and sealed
with putty.
Wall - Through hole
Note: The wall hole should be
between Ø60mm ~ Ø80mm. Avoid
making contact with pre-buried
power wire and hard walling when
making the hole.
