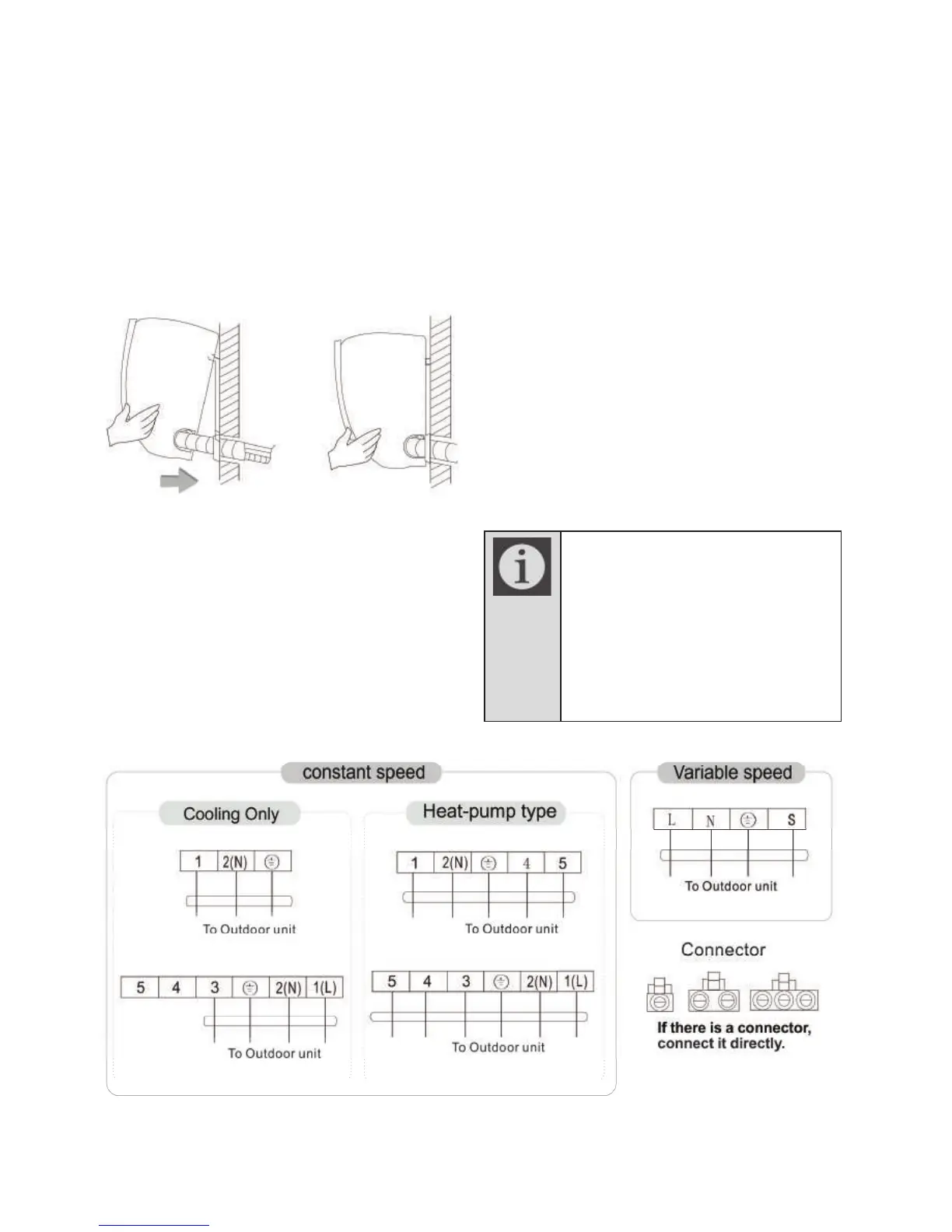

Page 20
1. Hang the indoor unit on the peg board,
and move the unit from left to right to ensure
that the hook is properly positioned in the
peg board.
2. Push toward the lower left side and the
upper right side of the unit toward the peg
board until the hook is embedded in the
slot and makes a "click" sound.
Mounting the indoor unit
x If your air conditioner is provided with a
power cable, the wiring of the indoor unit
has been connected in the factory, and
there is no need of connection. If the
power cable is not provided, connection is
needed in accordance with the wiring
diagram shown below.
Wiring diagram
This manual covers a variety of
models. Some speciality type
wiring diagrams may not be
included.
The diagram is for reference only,
there may be a slight difference
between the wiring diagram and
the unit you have purchased,
To Next Page
