Page 22

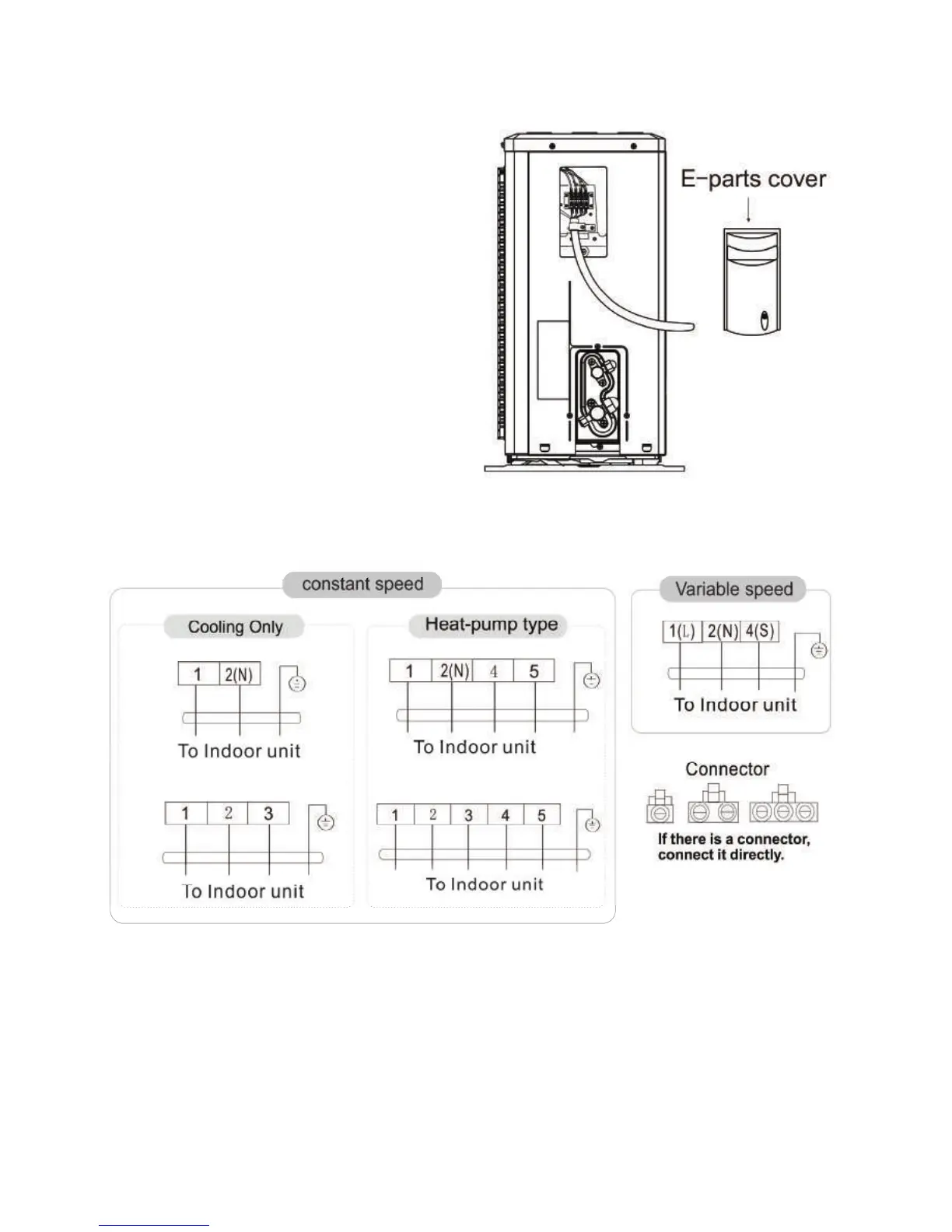

1. Loosen the screws and remove E-parts
cover from the unit.
2. Connect the cables respectively to the
corresponding terminals
of the terminal board of the outdoor unit (see
the wiring diagram), and if there are signals
connected to the plug, just conduct butt joint.
3. Ground wire: Remove the grounding
screw out of the electric bracket, cover the
grounding wire end onto the grounding
screw and screw it into the grounding hole.
4. Fix the cable reliably with fasteners
(Pressing board).
5. Put the E-parts cover back in its original
place and fasten
it with screws.
Wiring connection
Wiring diagram
