4.3 Operating the product

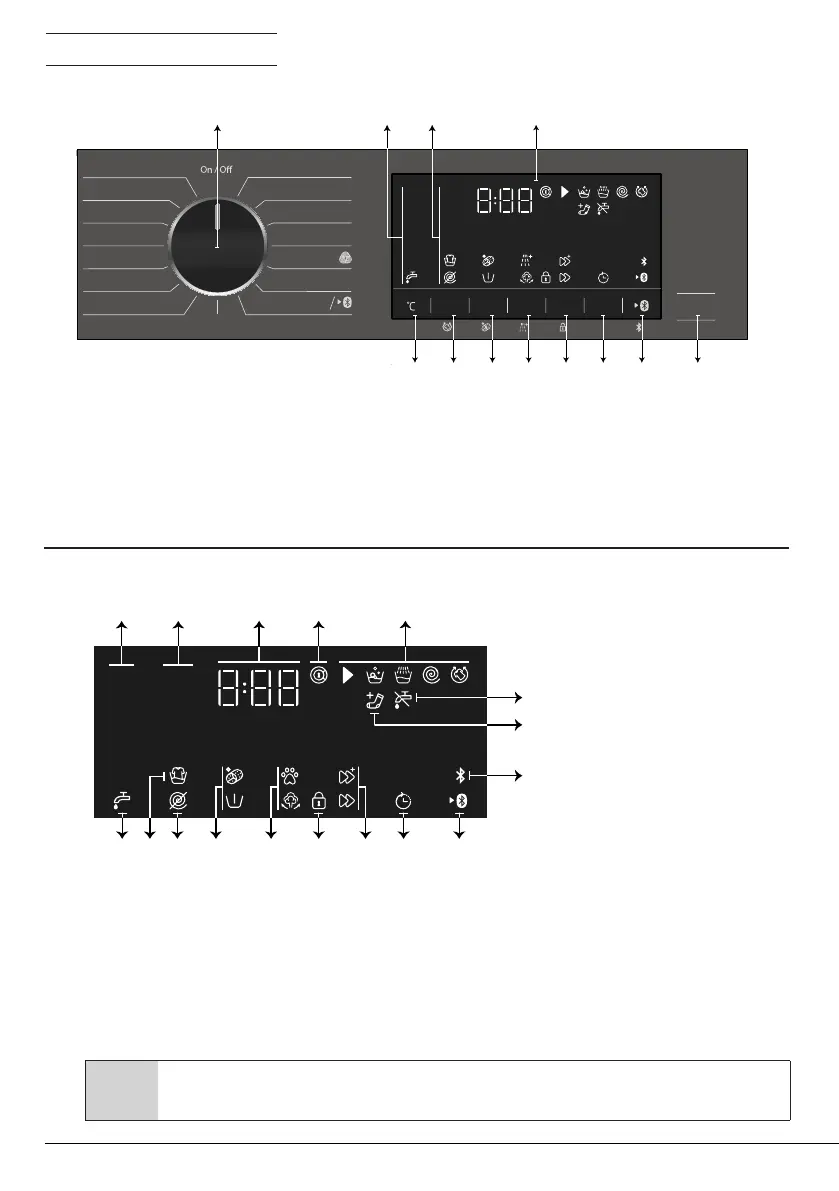

4.3.1 Control panel
1 - Programme Selection knob
2 - Temperature level lights
3 - Spin level indicator lights
4 - Display
5 - Start / Pause button
6 - Remote Control button.
7 - End Time Setting button
8 - Auxiliary Function button 3
9 - Auxiliary Function button 2
10 - Auxiliary Function button 1
11 - Spin speed adjustment button
12 - Temperature adjustment button
4.3.2 Display symbols
1200
1000
800
600
90
˚
60
˚
40
˚
30
˚
20
˚
a b c d e
f
h
g
ikl jno mpr
a- Temperature indicator
b- Spin speed indicator
c- Duration information
d - Door lock is engaged symbol
e- Programme follow-up indicator
f- No Water indicator
g - Add Garment indicator
h- Bluetooth Connection indicator
i- Remote Control indicator
j - Delayed Start Enabled indicator
k - Auxiliary Function indicators 3
l- Child Lock is Engaged symbol
m- Auxiliary Function indicators 2
n- Auxiliary Function indicators 1
o- No Spin Indicator
p- Rinse Hold Indicator
r- Cold Water indicator
C
The visuals used for machine description in this section are schematic and may not match exactly with the features of your
machine.
