Page 11
x

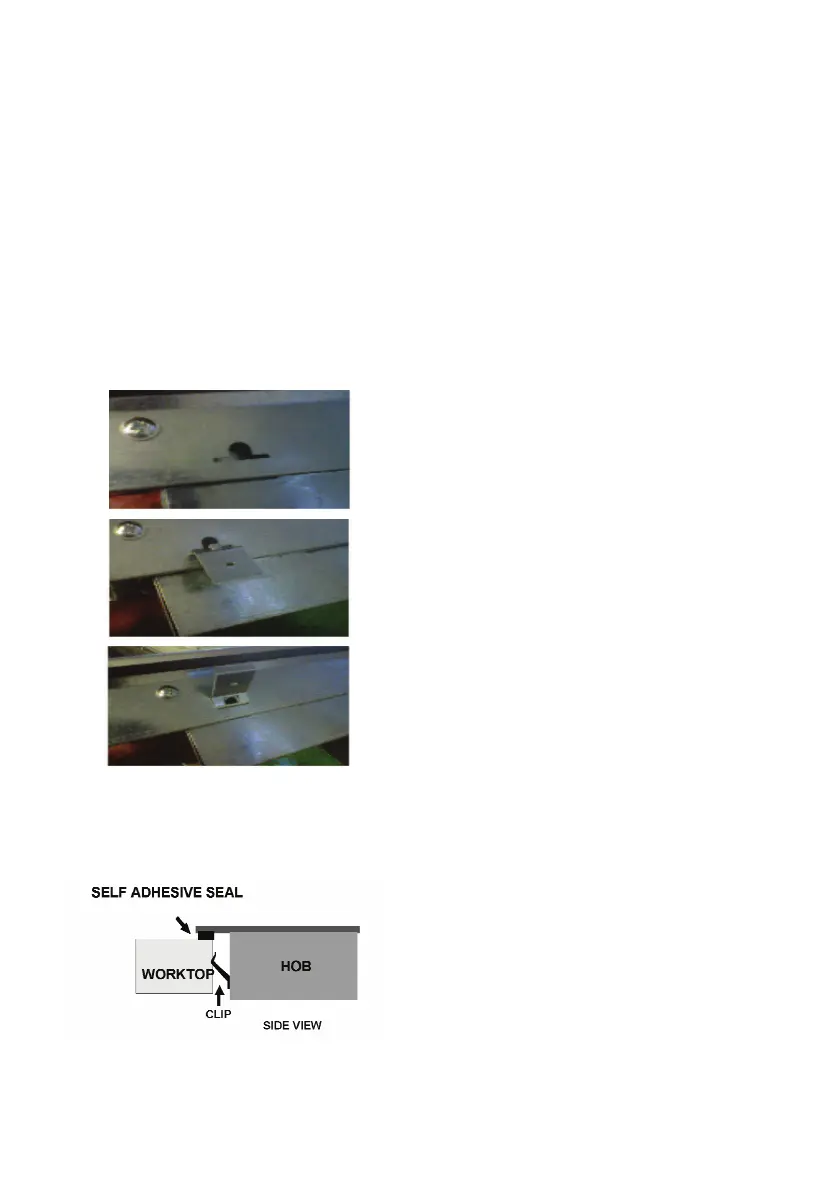

The hob is supplied with securing clips.
x These fit into dedicated slots around the
hob base . (see picture A)
x Insert the clips (as shown in picture B)
x Lift the clips up until they click into place.
(as shown in picture C)
x To avoid liquid spills penetrating between
the hob and the worktop, apply the
supplied self- adhesive seal to the
perimeter of the aperture. Do not use a
silicone sealer.
x Invert the hob on the worktop adjacent to
the aperture before making the electrical
connection. This will ensure sufficient
cable length for subsequent servicing.
A
B
C
x Position the hob into the aperture so that
the securing clips are compressed
between the hob base and the worktop.
(see Sketch below).
