INSTALLATION
• The hob should be installed in a ventilated cupboard fitted with a sturdy worktop and
must be secured using the fixing brackets provided.
• Invert the hob on the worktop adjacent to the aperture before making the electrical
connection. This will ensure sufficient cable length for subsequent servicing.
ELECTRICAL INSTALLATION
“This appliance must be earthed and the manufacturer and the seller do
not accept responsibility for any damage due to incorrect installation or
electrical connection.”
Earth leakage
This appliance should not be connected through an earth leakage system.
Refer to S.A.B.S. 0147.
Connection to the power supply must be carried out by a licensed electrician, who will
ensure that the oven is correctly connected and safely earthed. The rated current is printed
on the serial number label attached to the base cover.
The appliance must be connected to the mains through a double pole isolating switch
which has a minimum clearance between the contacts of 3 mm. in both poles.
A means for disconnection must be provided in the fixed wiring.

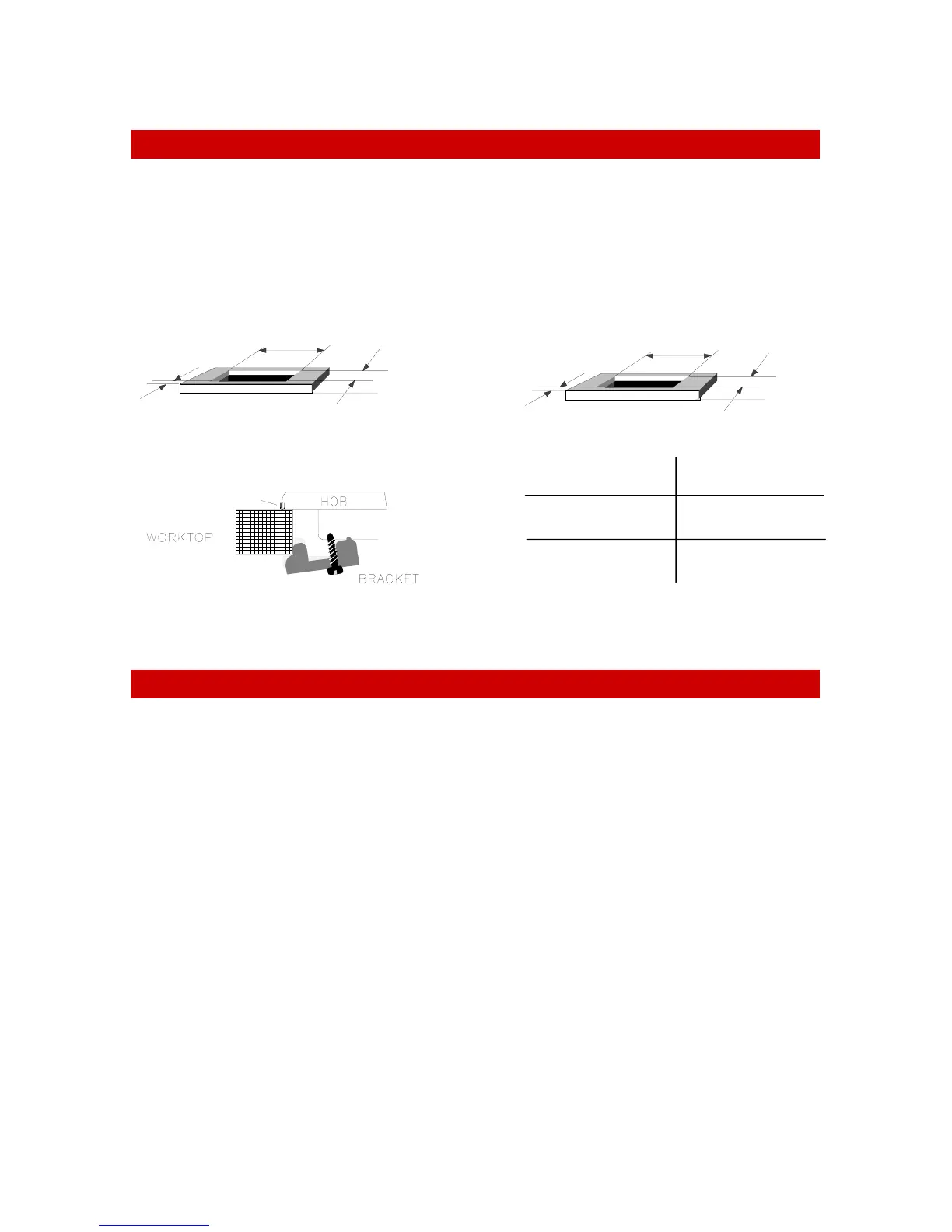

570
480
80
+ 3
- 0
+ 3
- 0
Slimline Aperture
803
470
70
+ 3
- 0
+ 3
- 0
Gemini Aperture
Hob fixing bracket
‘U’ SEAL FOR SOLID
PLATE HOB ONLY
Fixing bracket for solid plate hobs
Slimline Model Size of ‘X’
Solid Plate 570 mm
Ceran Smooth top 670 mm
+3
- 0
+3
- 0
To Next Page
