4. Terminal list
4.1 Overview of the terminals
Terminal
no.
Signal
symbol
Signal name
1
R (L1)
Busbar voltage
x
Not used
2
S (L2)
Busbar voltage
x
Not used
3
SYNC.
Relay output
4
SYNC.
Relay output
x
Not used
5
R (L1)
Generator voltage
x
Not used
6
S (L2)
Generator voltage
Only on marine version:
System status circuit off
= failure
+ open collector
- open collector

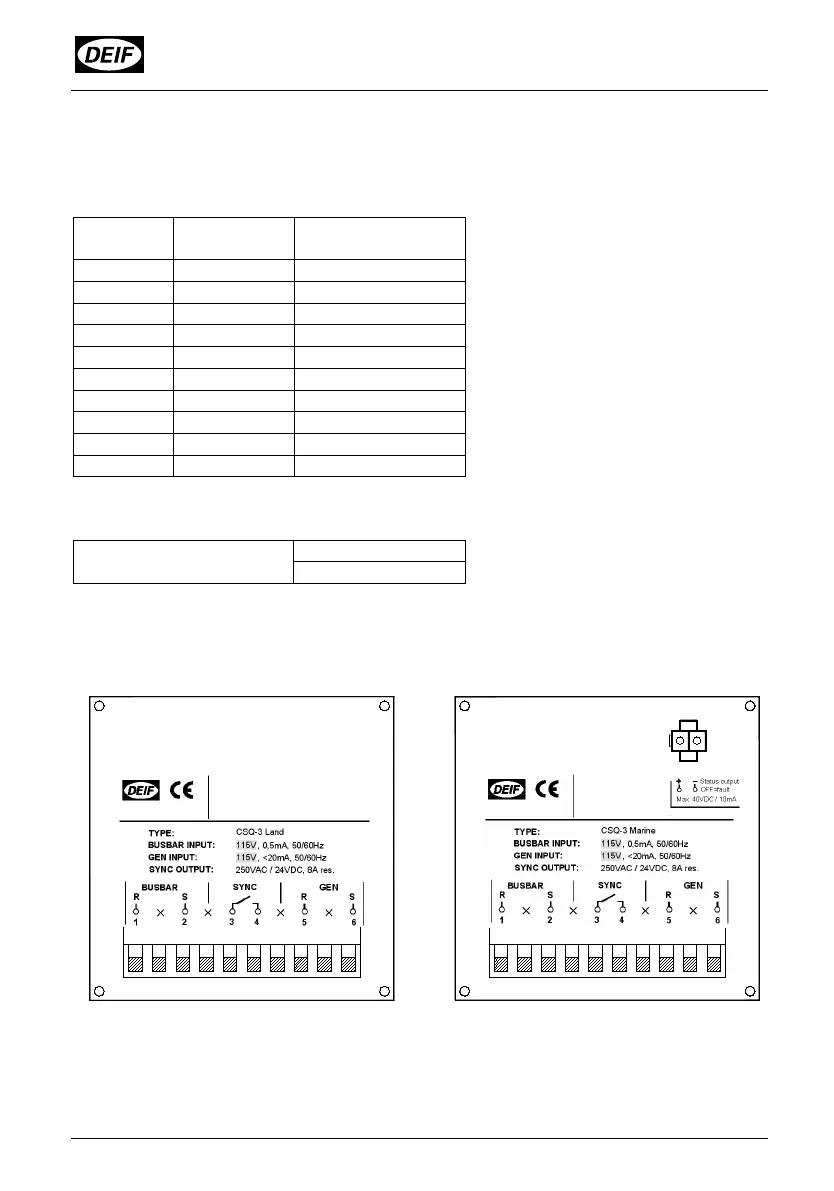

Rear view of the unit:
Land version Marine version
