Delfield F18BC - Door Assembly: Low Profile

F18 Series Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
12
Delfield
™
®
Door Assembly: Low Profile
DELFIELD

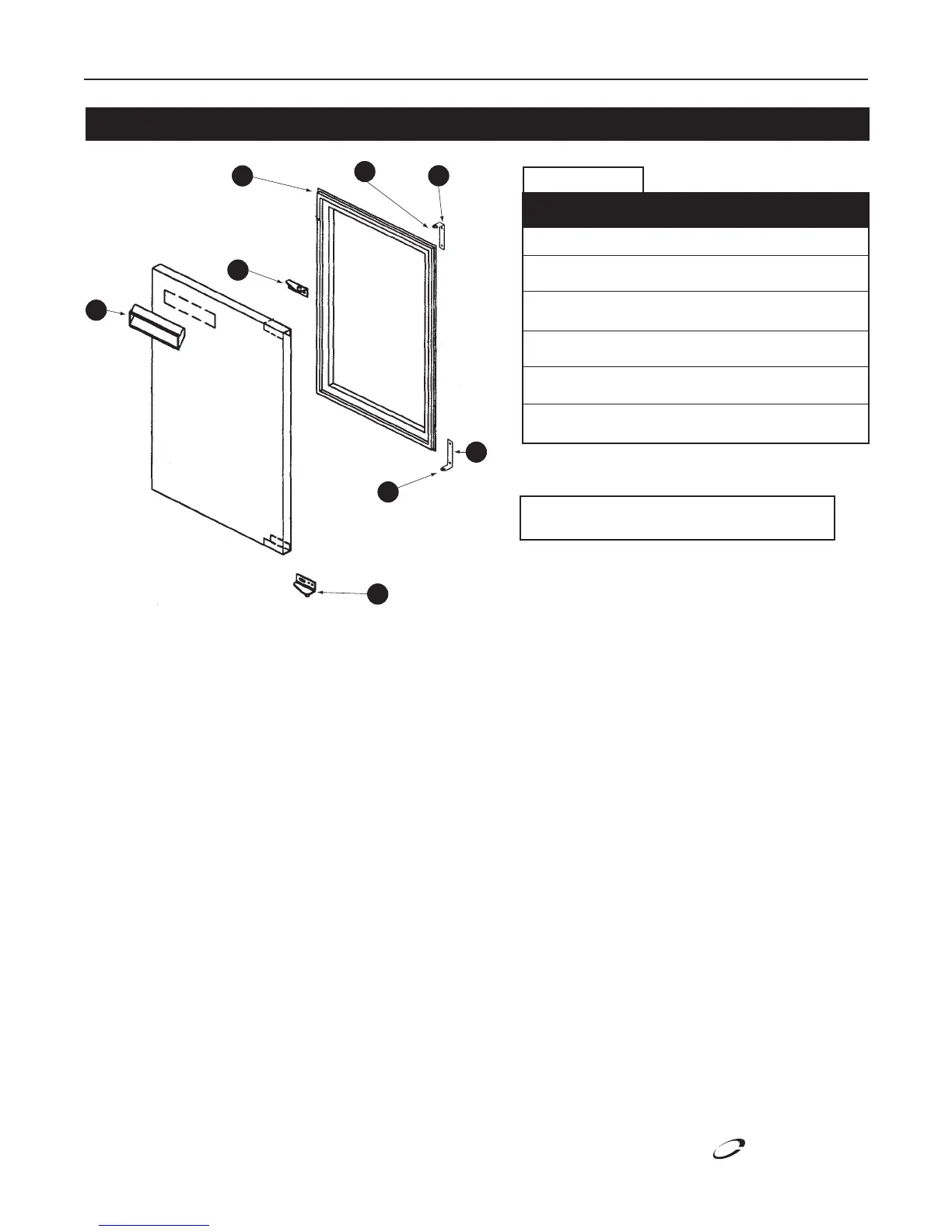

KEY PART# DESCRIPTION
XMK00005 complete door assy. 19”, 18.75” x 15.72”
XMK00006 complete door assy. 24", 23.75" x 15.72"
XMK00007 complete door assy. 27”, 26.75” x 15.72”
1 1701187 gasket, door, 19”
1701188 gasket, door 24"
1701189 gasket, door, 27”
2 handle, snap-in, 7” (not replaceable)
3 3234214 hinge, door, top/LH, bottom/RH
4 3234218 hinge, door, top/RH, bottom/LH
5 3234391 hinge, door, L-shaped
6 9321107 bushing, nylon, hinge pin
NOTE: Indicate if door is left or right hinged when
ordering.
6
6
1
4
2
3
5
5
Used on: F18SC, F18SR, F18MC & F18MR
Low Profile
