Delfield F18BC - Mullion Coil Assembly (Freezer)

9
F18 Series Service and Installation Manual
9
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Delfield
™
®

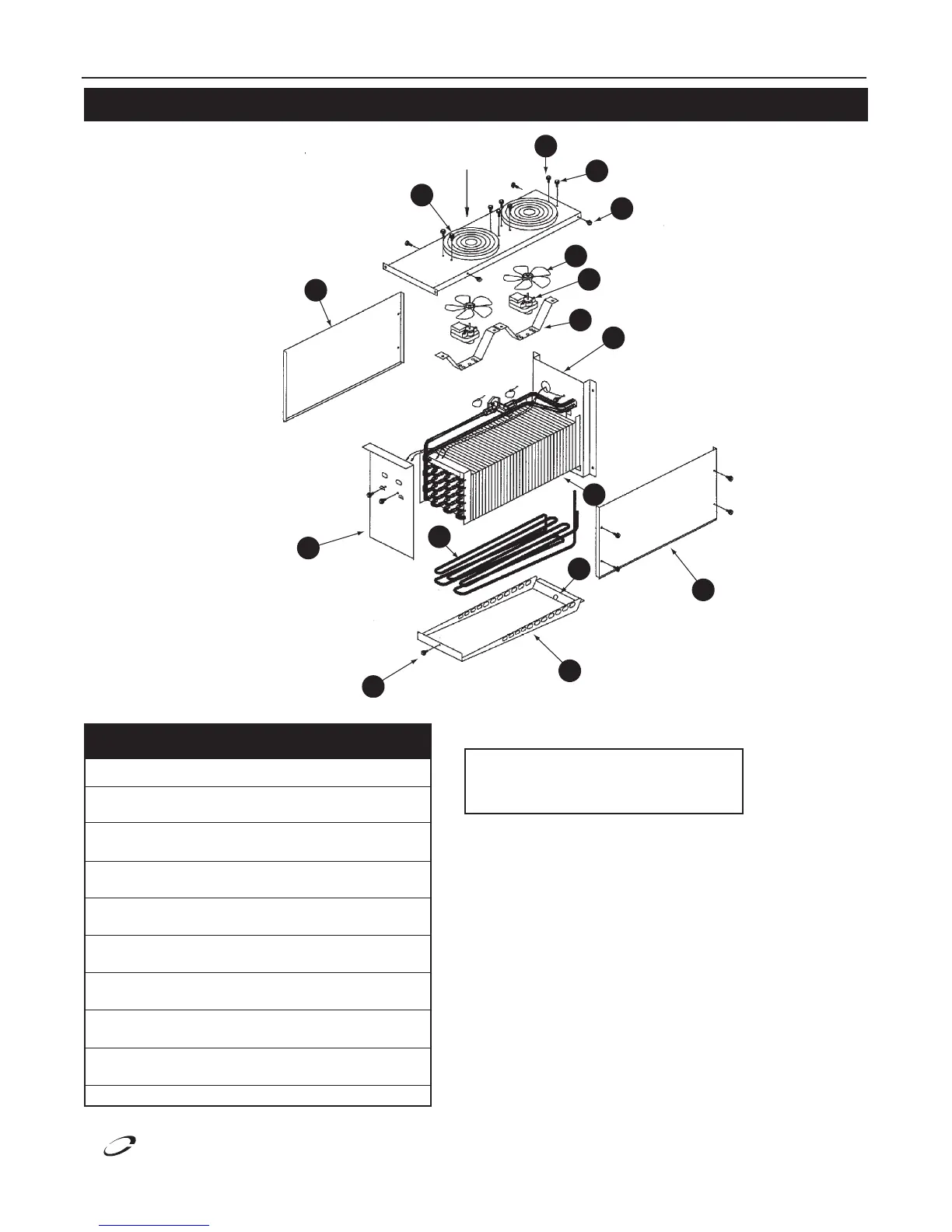

Mullion Coil Assembly: Freezers
DELFIELD
KEY PART# DESCRIPTION
1 SMK00162 pan, drip, freezer mullion coil
‡ AMK00004 back, evap housing
2 AMK00002 side, evap. hsng., LH
3 AMK00005 bracket, fan motor, blower coil
4 3516073 coil, evap., freezer
5 2194034 heater, defrost
‡ AMK00000 front, evap housing
6 2183310 harness, coil, freezer, male
7 2162691 motor, fan, 115V, 50/60
8 3516173 guard, fan, 6.38” dia, lexan
9 3516172 blade, fan, 5.56, CCW, lexan
10 9321353 screw, #10x0.50
11 9321353 screw, machine, #10
12 9321238 screw, #8x.75
13 9321131 screw #10 x .50
14 3516271 valve, expansion, 1/4, low, R-4040A
15 2194046 control, limit, fan delay/defrst (not shown)
16 Need to order drip pan to get 1” s/s drain (not shown)
Used on: F18FC and F18FR
NOTE: Non-numbered items with ”‡” not
sold separately — available only with com-
plete assembly — XMK00061.
9
7
10
11
12
4
2
1
13
2
8
‡
‡
16
5
3
AIR
FLOW
