Delfield F18BC - Door Assembly: Mark 7; Louvered Door Assembly

13
F18 Series Service and Installation Manual
13
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Delfield
™
®
Mark 7

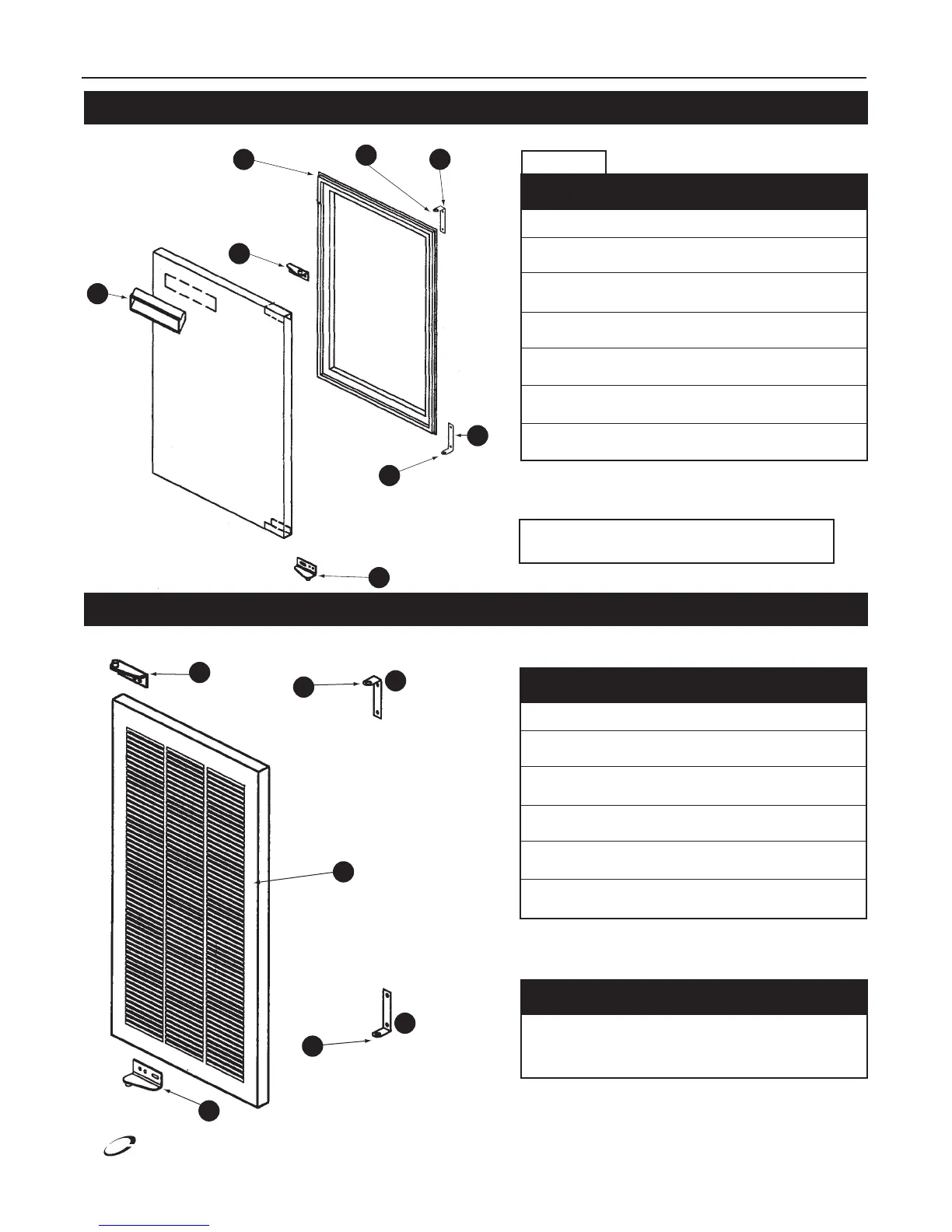

Door Assembly: Mark 7
DELFIELD
KEY PART# DESCRIPTION
XMK00001 complete door assy. 19”, 18.75” x 25.72”
XMK00002 complee door assy. 24", 23.75” x 25.72”
XMK00003 complete door assy. 27”, 26.75” x 25.72”
XMK00004 complete door assy. 32”, 31.75” x 25.72”
1 1701183 gasket, door, 19”
1701184 gasket, door 24"
1701185 gasket, door, 27”
1701186 gasket, door, 32”
2 3234255 handle, snap-in, 7”
3 3234072 hinge, door, top/LH, bottom/RH
4 3234073 hinge, door, top/RH, bottom/LH
5 3234391 hinge, door, L-shaped
6 9321107 bushing, nylon, hinge pin
NOTE: Indicate if door is left or right hinged when
ordering.
6
6
1
4
2
3
5
5
Used on: F18WR, F18WC, F18FC, F18FR, F18DR, F18RC &
F18RR
Louvered Door Assembly
4
3
5
4
5
2
1
DELFIELD
KEY PART# DESCRIPTION
XMK00118 complete louvered door assembly, 14”
XMK00120 complete louvered door assembly, 18”
1 SMK00507 front, door, 14”
SMK00446 front, door, 18”
2 3234073 hinge, door, top/RH, bottom/LH
3 3234072 hinge, door, top/LH, bottom/RH
4 3234391 hinge, door, L-shaped
5 9321107 bushing, nylon, hinge pin
6 SMK00771 bracket, magnetic catch (not shown)
7 3234156 catch, magnetic, snap-in (not shown)
8 3234191 strike, steel (not shown)
Used on: F18SC, F18SR, F18MC, F18MR, F18DC, F18DR,
F18RC & F18RR
DELFIELD
KEY PART# DESCRIPTION
NOT SHOWN - Clip on style louver
SMK00039 13.94" x 26.34"
SMK00041 17.94" x 26.34"
Used on: F18FC, F18WR,
