The APC 2Mi has label with following information:

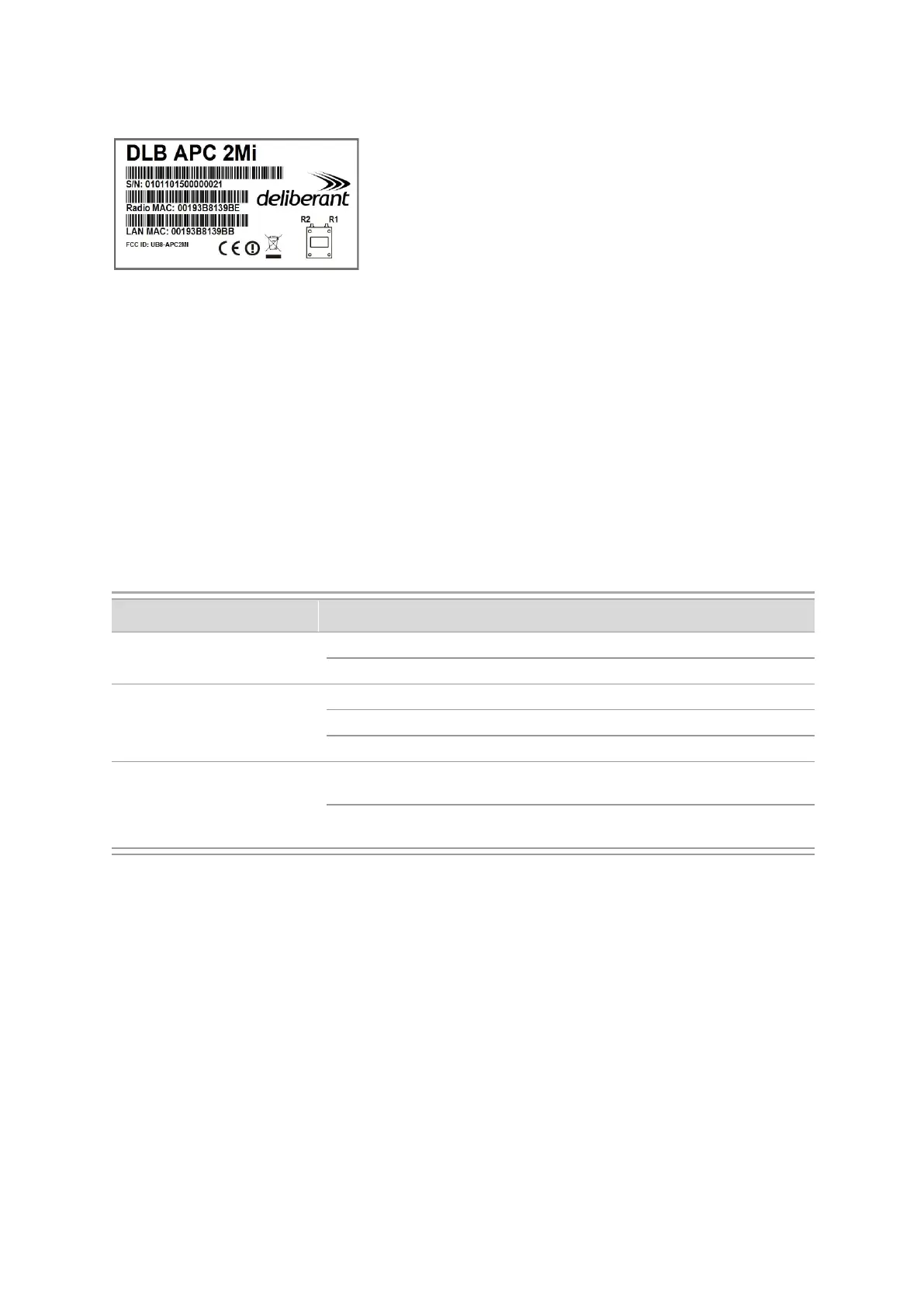

Figure 3 – APC 2Mi Label
The label of the APC 2Mi contains:
 Model name. The official model name is APC 2Mi.
 Serial Number
 Radio MAC address
 LAN MAC address
 FCC ID: UB8-APC2Mi
 IC ID: 6607-APC2Mi
LEDs
The APC 2Mi has 6 LEDs located on the side panel: power, LAN and 4 RSSI LEDs (refer at the
Figure 2 – APC 2Mi Overview for details). The various states of the LEDs indicate different connection
operations as follows:
LED
Color
Status Indication
Power
Green
On APC 2Mi is active/working
Off No power on APC 2Mi
LAN
Green
On LAN connection exists.
Blinking
Indicates the traffic on LAN interface.
Off
No LAN connection.
RSSI (1, 2, 3, 4)
Yellow
On
The RSSI level has reached the appropriate threshold
level (default RSSI threshold levels: 10, 25, 35, 50)
Off
The RSSI level has not reached the appropriate
threshold level
