Getting Started Guide 9

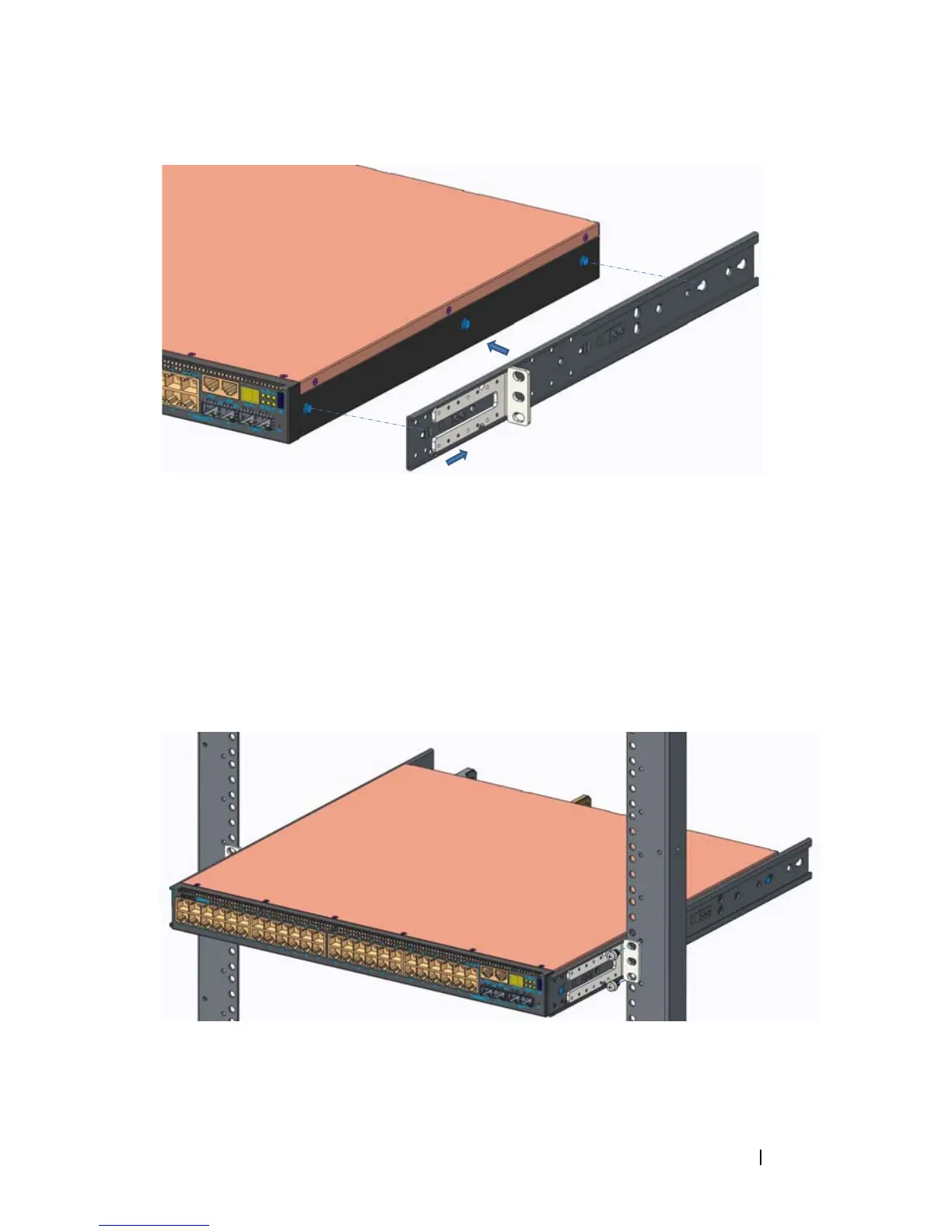

Figure 1-1. Aligning the Brackets
2
Push the rack-mounting bracket towards the back to secure the bracket in
a locked position.
3
Repeat the process for the rack-mounting bracket on the other side of the
switch.
4
Insert the switch into the 48.26 cm (19 inch) rack, ensuring that the rack-
mounting holes on the bracket line up with the mounting holes in the
rack.
Figure 1-2. Securing the Bracket to the Rack
5
Secure the bracket to the rack with either the rack bolts or cage nuts and
cage-nut bolts with washers (depending on the kind of rack you have).
Fasten the bolts on the bottom before fastening the bolts on the top.
