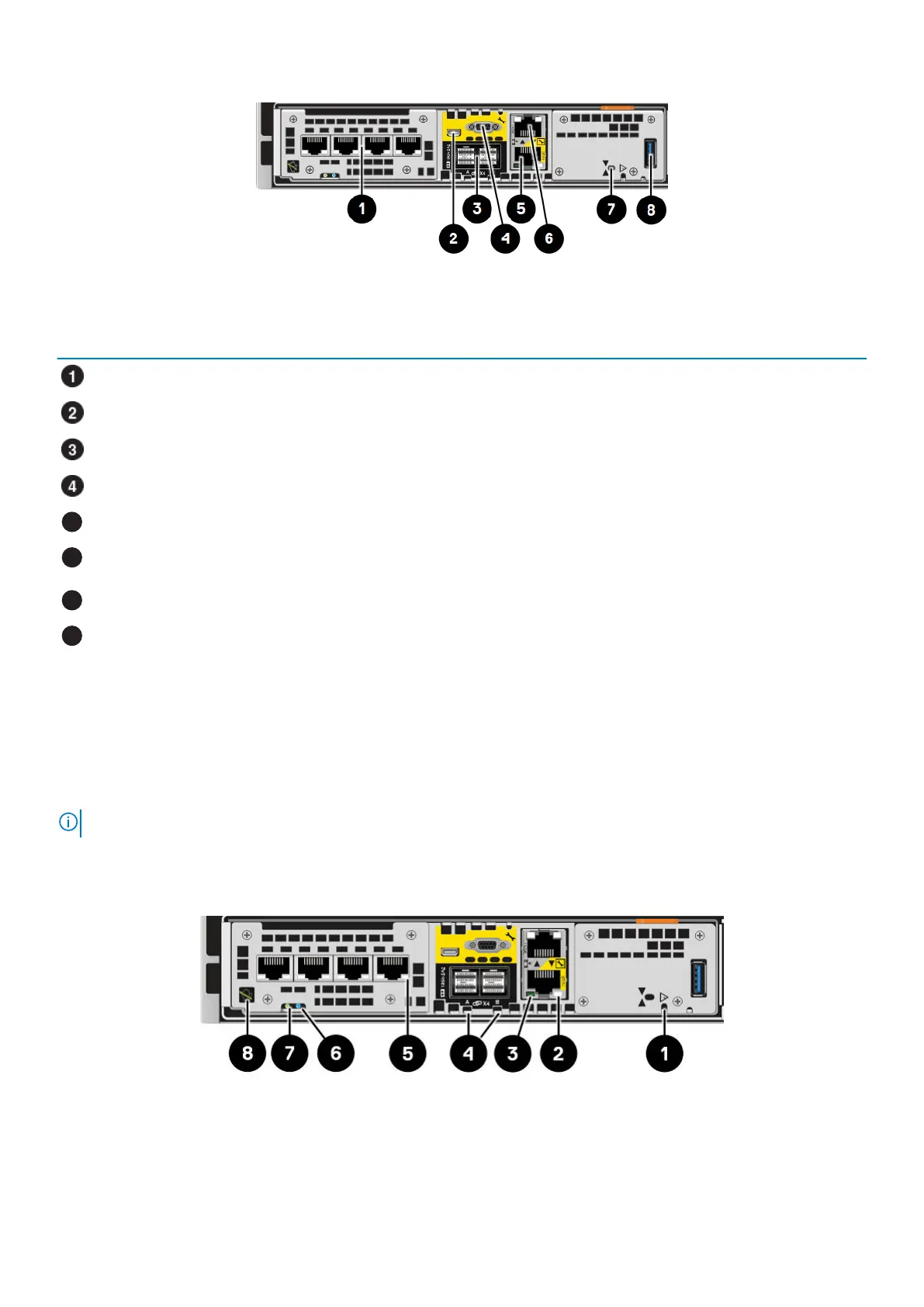

Figure 6. Embedded module rear view with component locations
Table 4. Embedded module component locations
Location Description
4-port card
Mini serial port (unused)
Mini-SAS HD back-end ports
DB9 serial port (service)
5
RJ-45 LAN connector - service port
6
RJ 45 LAN connector - system management port. Only used on PowerStore T model. Not
used on PowerStore X model.
7
Non-maskable interrupt (NMI) button
8
USB port
About 4-port cards
The 4-port card is an optional component located within the embedded module. There are two supported 4-port cards: the 4-port 25GbE
SFP based embedded module and the 4-port 10GBaseT embedded module.
The 4-port 25GbE SFP based embedded module supports 1GbE SFP to RJ45, 10GbE or 25GbE SFP28, 25GbE passive TwinAx, and
10GbE active or passive TwinAx. Depending on the installed SFP or TwinAx cable, the following speeds are supported: 1GbE, 10GbE, and
25GbE. The ports may be configured individually with TwinAx or any of the supported SFPs.
NOTE: 25GbE SFPs only support 25GbE speeds.
The 4-port 10GBaseT embedded module serves Ethernet traffic and iSCSI block protocol. Speeds of 1GbE and 10 GbE are supported.
Embedded module and 4-port card LED status
Figure 7. Embedded module LEDs
10
Base enclosure component descriptions

Dell EMC PowerStore Series Specifications

General

Processor	Intel Xeon Scalable Processors
Operating System	PowerStoreOS
Drive Types	NVMe SSD
Network Connectivity	10GbE, 25GbE, 32Gb Fibre Channel
Form Factor	2U
Data Reduction	Inline compression and deduplication
Management	PowerStore Manager
Power Supply	Redundant power supplies
Model	PowerStore Series
Warranty	ProSupport
