Dell 2208WFP - Universal Serial Bus (USB) Interface

6
DDC Clock
7
DDC Data
8
No connector
9
T.M.D.S. Data 1-
10
T.M.D.S. Data 1+
11
T.M.D.S. Data 1 Shield
12
No connector
13
No connector
14
+5V power
15
Selftest
16
Hot Plug Detect
17
T.M.D.S. Data 0-
18
T.M.D.S. Data 0 Shield
19
T.M.D.S. Data
20
No connector
21
No connector
22
T.M.D.S.Clock Shield
23
T.M.D.S. Clock+
24
T.M.D.S. Clock-

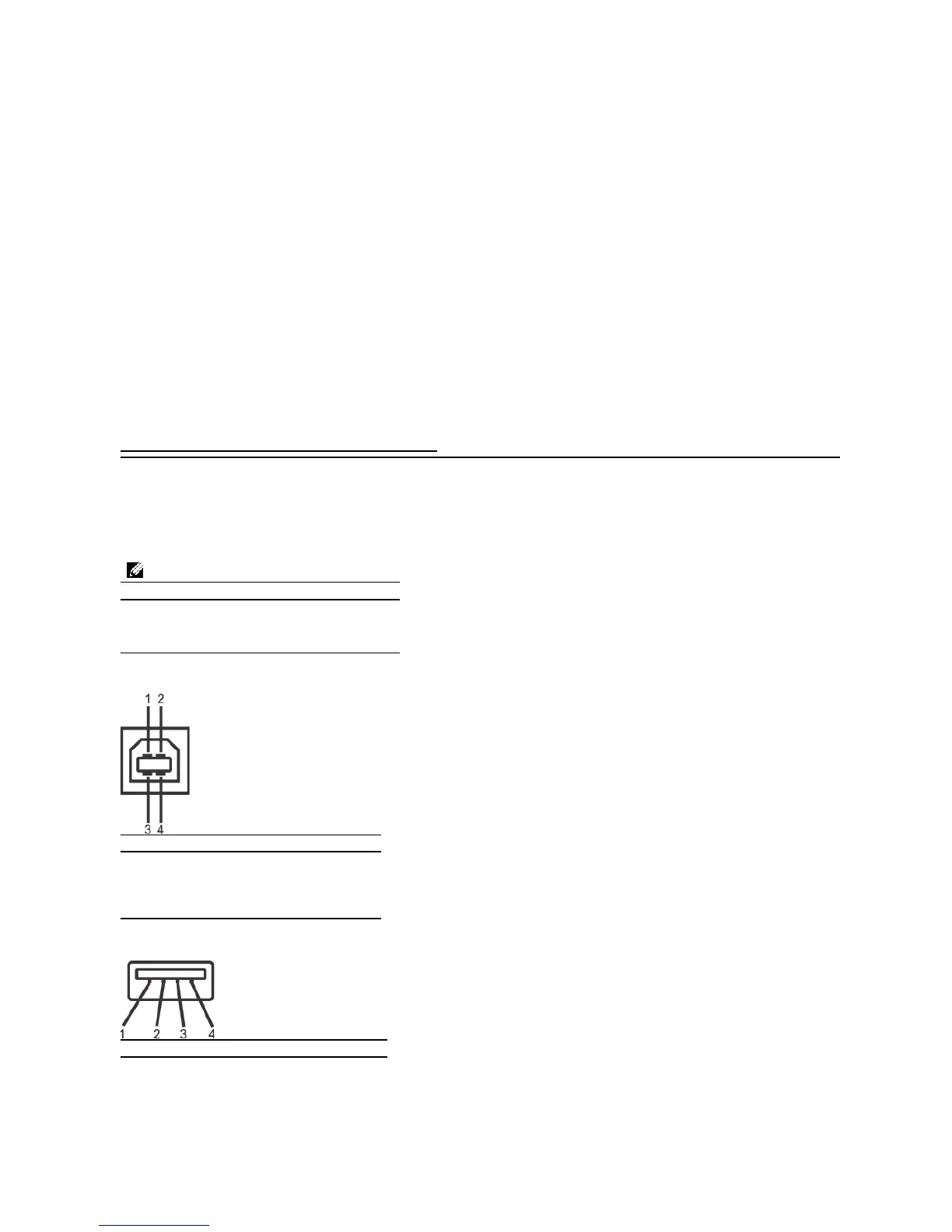

Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the left side of your monitor.
USB Upstream Connector
USB Downstream Connector

NOTE: This monitor supports High-Speed Certified USB 2.0 interface
Transfer speed
Data Rate
Power Consumption
High speed
480 Mbps
2.5W(Max.,eachport)
Full speed
12 Mbps
2.5W(Max.,eachport)
Low speed
1.5 Mbps
2.5W(Max.,eachport)
Pin Number
4-pin Side of the connector
1
DMU
2
VCC
3
DPU
4
GND
Pin Number
4-Pin Side of the Signal Cable
1
VCC
2
DMD
3
DPD
4
GND
