Using the Dell Soundbar (Optional)
The Dell Soundbar is a four-speaker, two-channelspeakerthatcanbeattachedtoyourmonitor.LocatedontheSoundbararea:Rotaryvolumeandon/off
control to adjust the overall system level, a green LED for power indication, and two audio headset jacks.

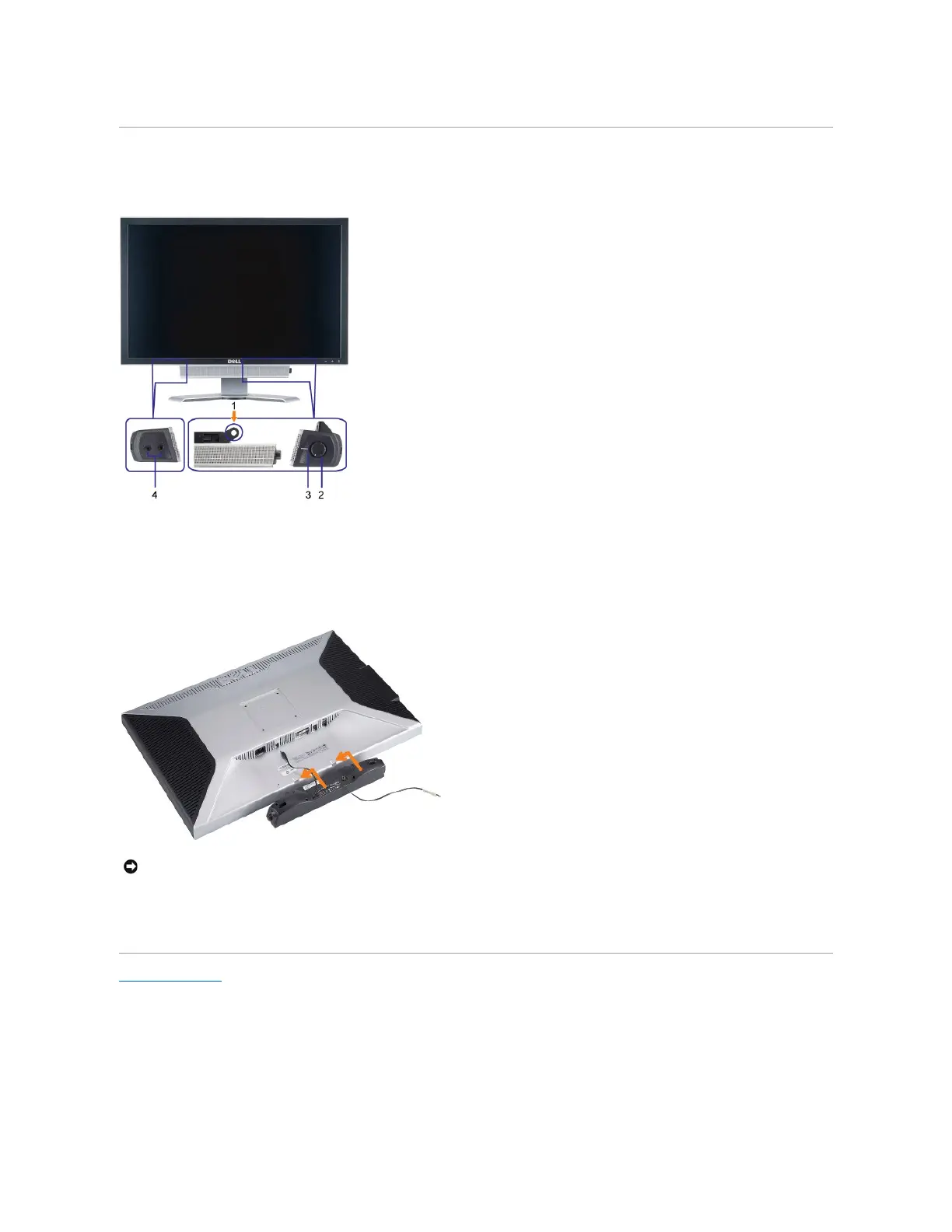

Soundbar Attachment to the Monitor
Back to Contents Page

1.
Attach mechanism
2.
Power/volume control
3.
Power indicator
4.
Headphone connectors
NOTICE: Do not use the soundbar power connector with any other device.
1.
Attach the Soundbar by aligning the two slots on the Soundbar with the two tabs on the bottom of the monitor.
2.
Slide the Soundbar to the left until it snaps in to place.
3.
Plug in the power cord from the Soundbar in to the connector on the back of the monitor.
4.
Insert the green stereo plug from the Soundbar in to your computer's audio output connector.
