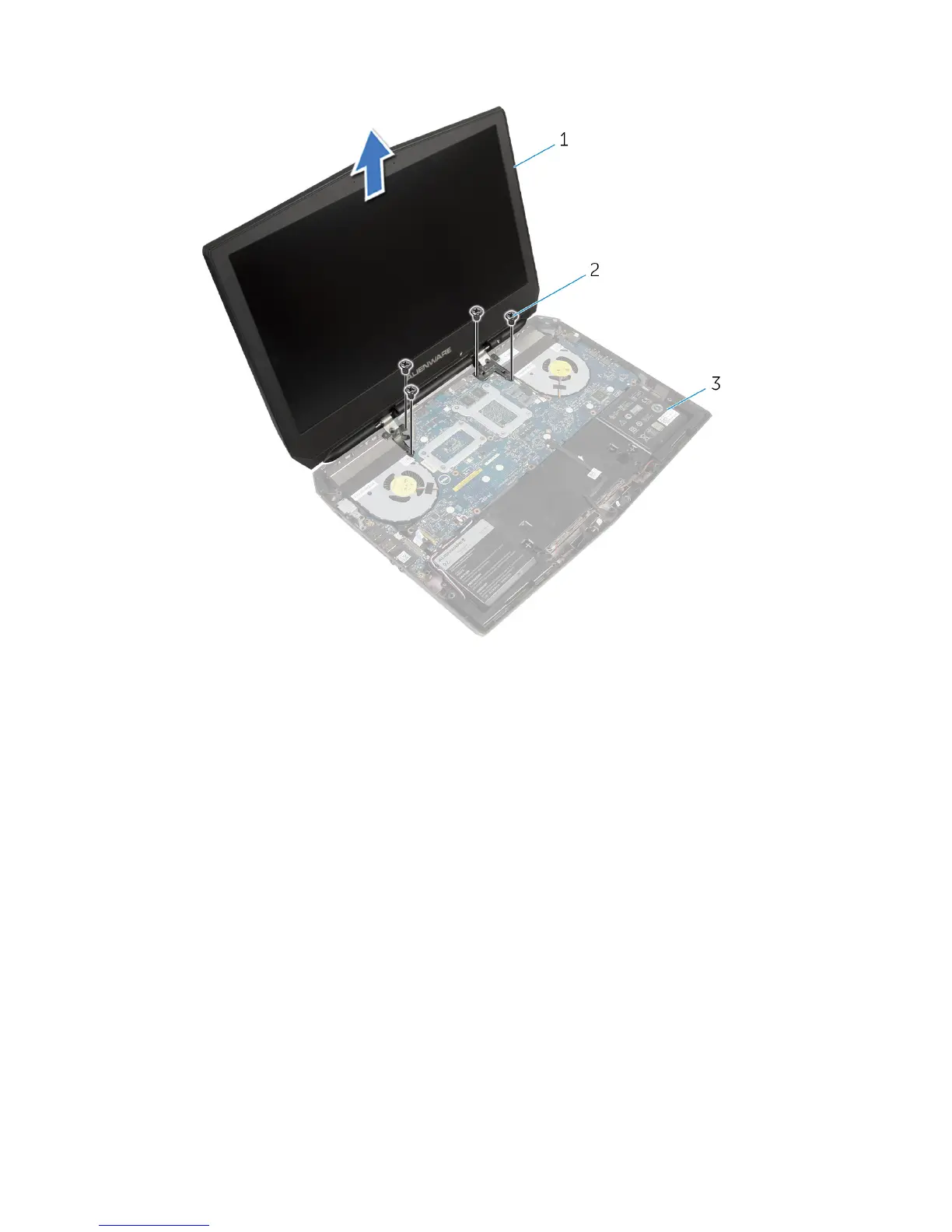

11 Lift the display assembly off the computer base.

1 display assembly 2 screws (4)

3 computer base
