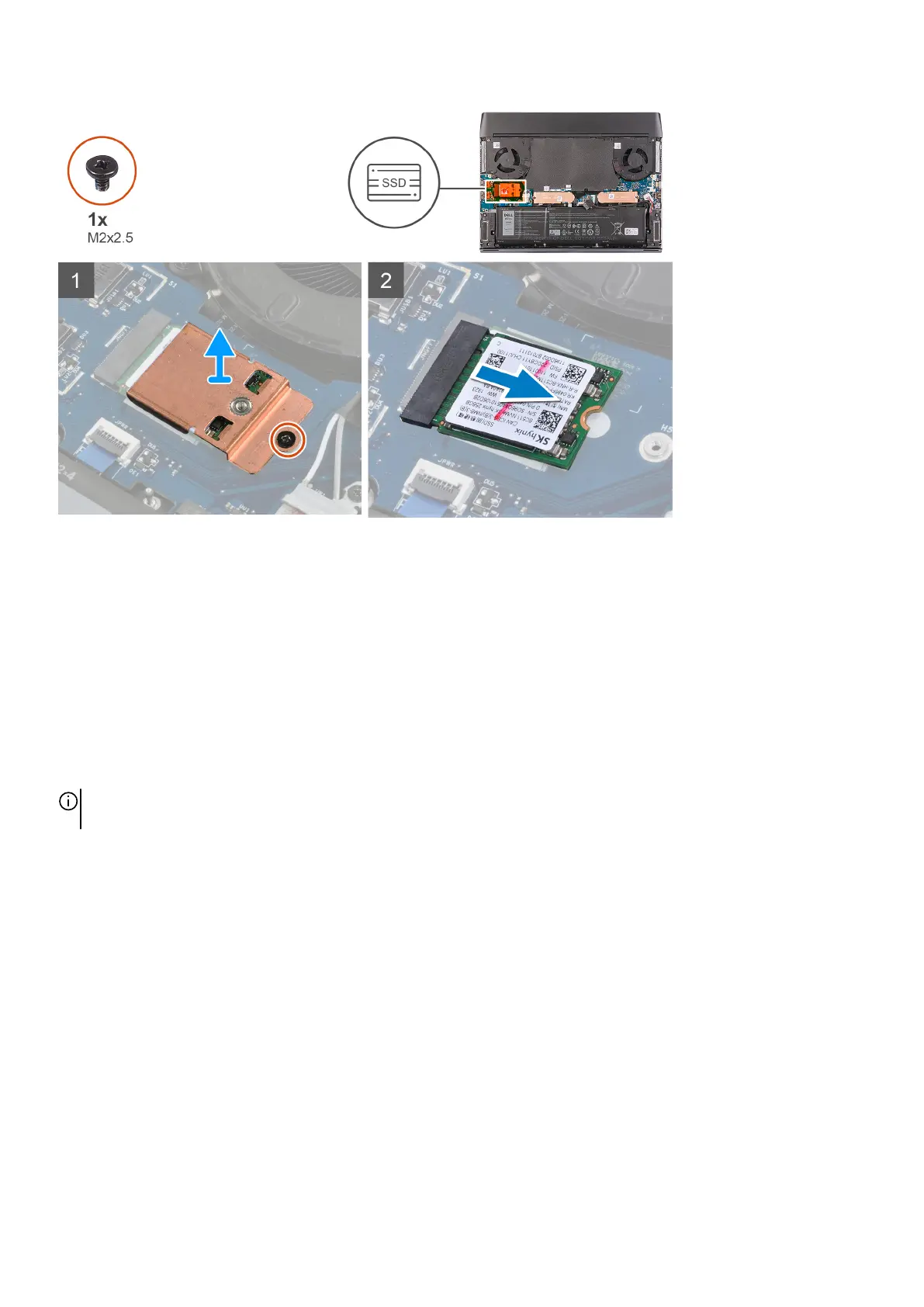

Steps
1. Remove the screw (M2x2.5) that secures the M.2 2230 thermal shield to the left I/O-board.
2. Remove the M.2 2230 thermal shield from the M.2 2230 WWAN/solid-state drive.
3. Lift and remove the M.2 2230 WWAN/solid-state drive from the M.2 card slot on the left I/O-board.
Installing the M.2 2230 WWAN/solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
NOTE: This procedure applies if you are installing a M.2 2230 solid-state drive or M.2 2230 WWAN card in M.2 card slot
3.
The following image(s) indicate the location of the M.2 2230 WWAN/solid-state drive and provides a visual representation of the
installation procedure.
25
