Dell Alienware m15 R3 - Page 27

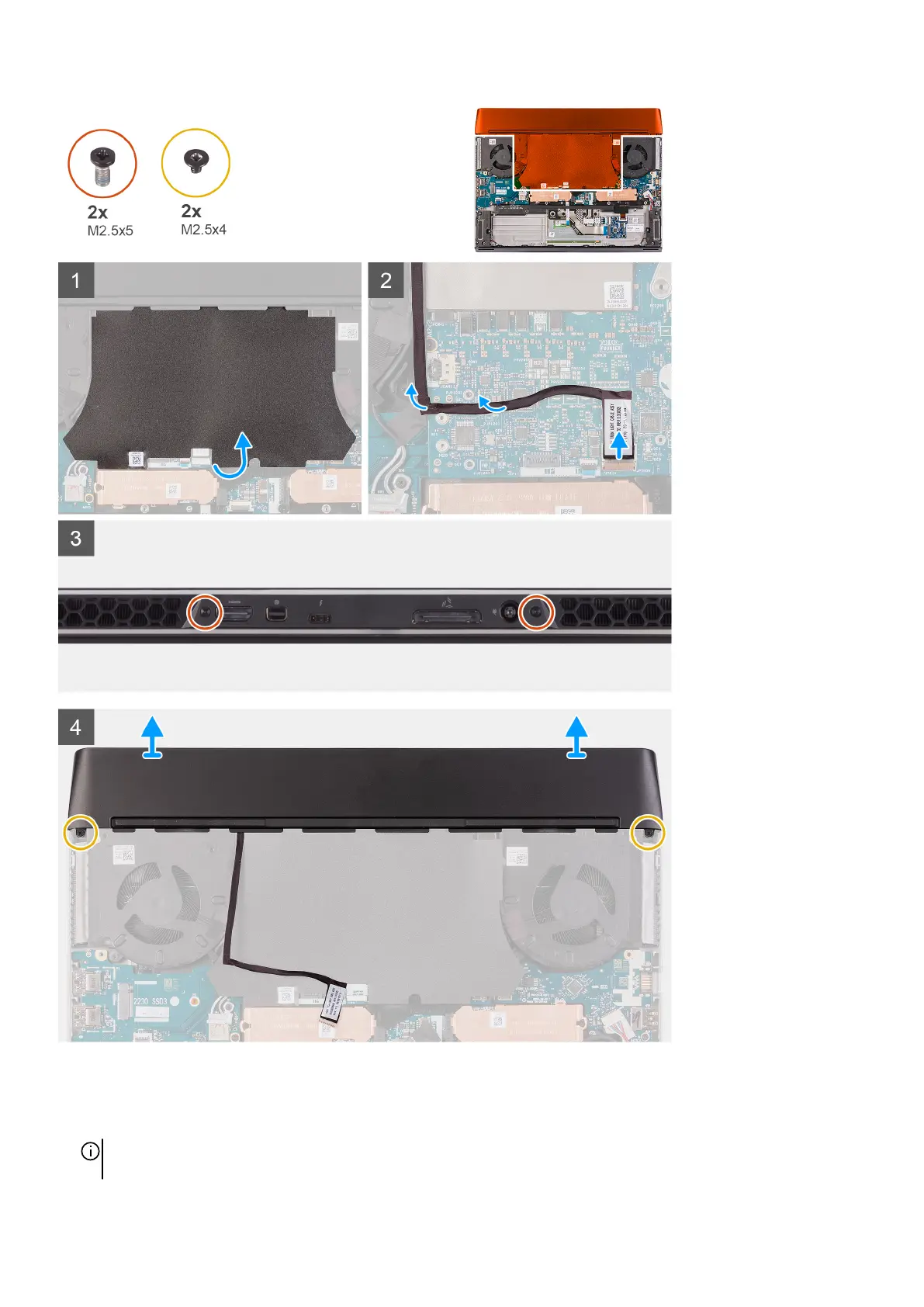

Steps
1. Peel and lift the Mylar covering the system board.
2. Disconnect and peel the Tron light cable from the system board.
NOTE: To prevent damaging your computer ensure the Tron light cable has been disconnected from the system board
before removing the rear I/O-cover.
27
