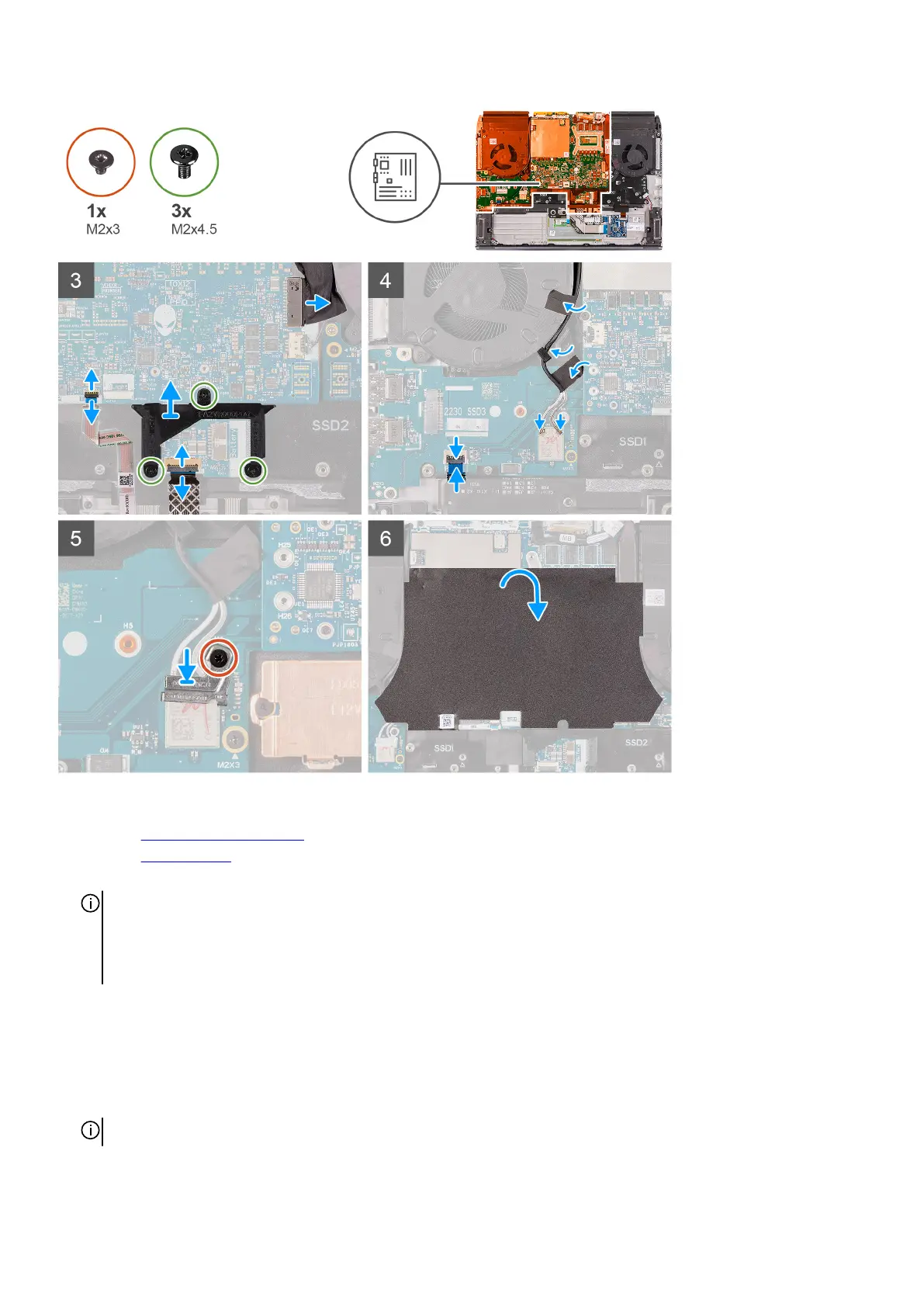

Steps
1. Install the fan and heat-sink assembly.
2. Install the left I/O-board.
3. Turn the system-board assembly over and place the system-board assembly on the palm-rest assembly.
NOTE: When the system board is installed it is removed as an assembly consisting of:
• system board
• left I/O-board
• fan and heat-sink assembly
4. Align the screw holes on the system board with the screw holes on the palm-rest assembly.
5. Replace the two (M2x3) screws that secure the left I/O-board to the palm-rest assembly.
6. Replace the eight (M2x3) screws that secure the system board to the palm-rest assembly.
7. Replace the three (M2x3) screws that secure the fan and heat-sink assembly to the palm-rest assembly.
8. Replace the two (M2x4.5) screws that secure the fan and heat-sink assembly to the palm-rest assembly.
9. Connect the G-sensor cable to the connector on the system board.
NOTE: Ensure that you connect the G-sensor cable before you connect the display cable.
10.Connect the Tobii eye tracker cable to the connector on the system board.
47
