Dell D11S004 - M.2 Pcie Solid State Drive -SSD; Removing the M.2 Pcie Solid State Drive -SSD

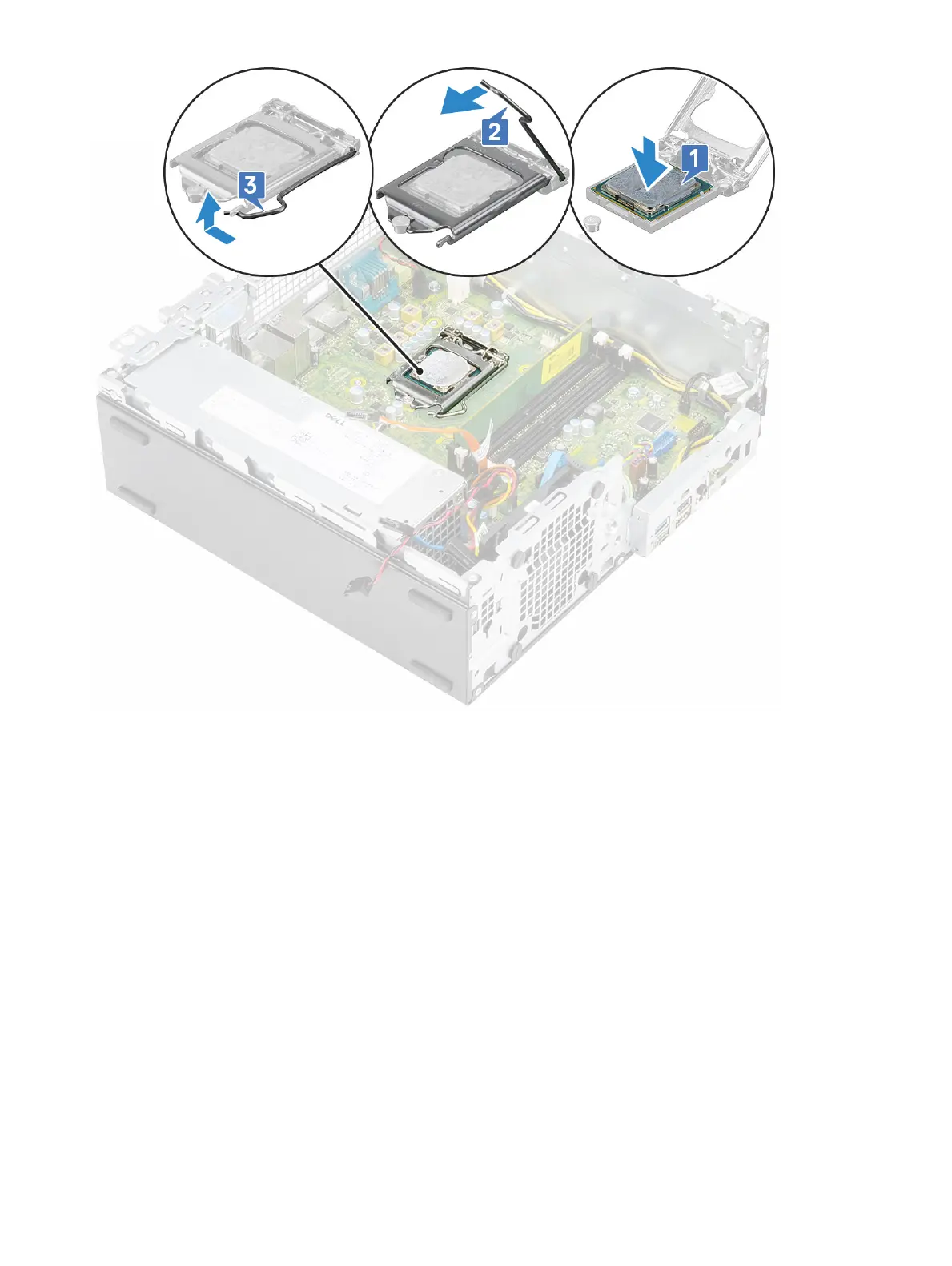

4 Install the:
a Heat sink and heat sink fan
b Hard drive and optical drive module
c Front bezel
d Side cover
5 Follow the procedure in After working inside your computer.
M.2 PCIe Solid State Drive -SSD
Removing the M.2 PCIe Solid State Drive -SSD
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a Side cover
b Front bezel
c Hard drive and optical drive module
3 To remove the M.2 PCIe SSD card:
a Remove the single (M2 x 3.5) screw that secures the M.2 PCIe SSD card to the system board [1].
b Lift and pull out the SSD card from its connector on the system board [2].
Removing and Installing components
49
