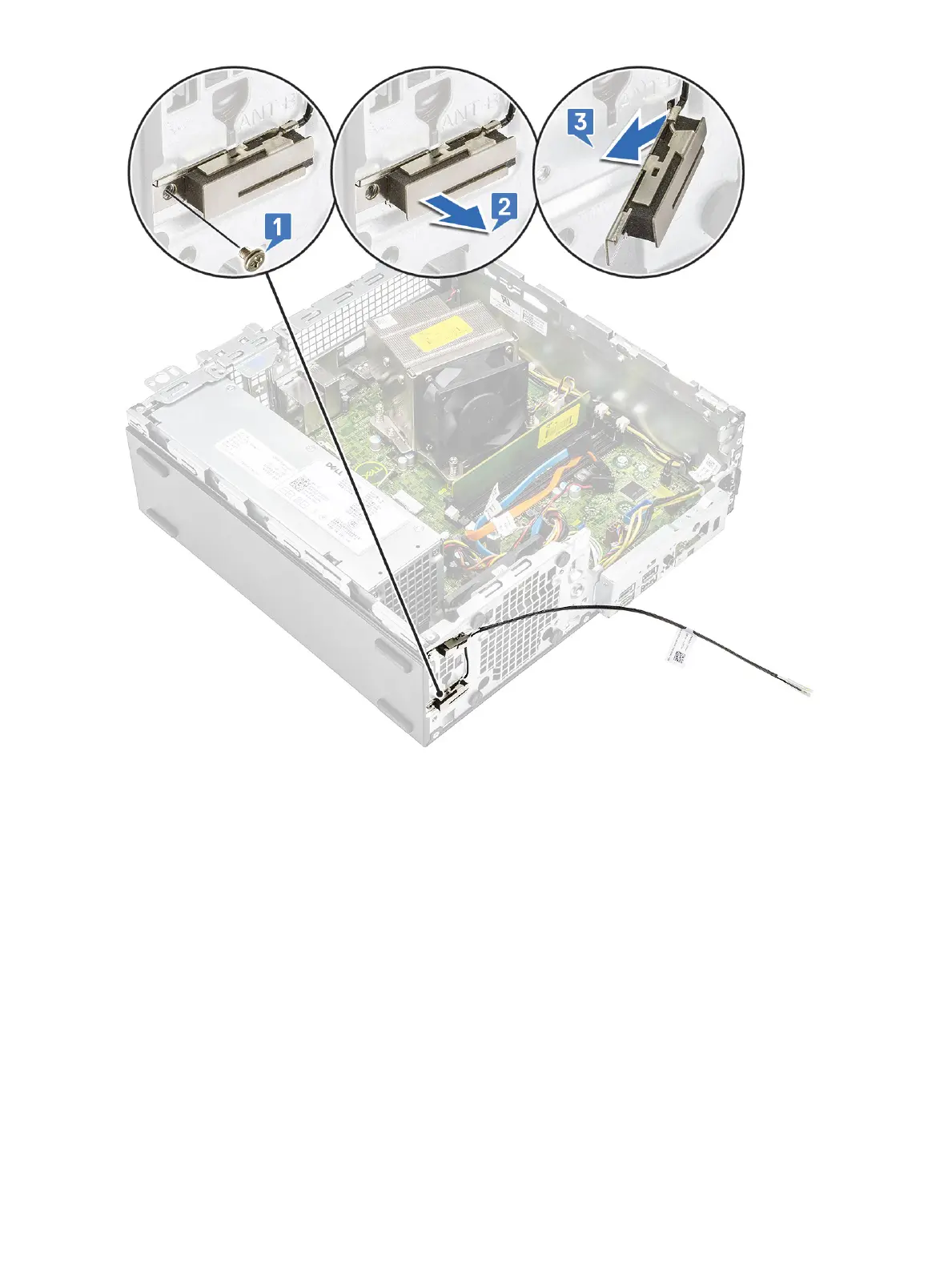

e Remove the single screw that secures the antenna to the chassis [1].

f Remove the white antenna cable from the ANT-W slot on the chassis [2,3].

Removing and Installing components
