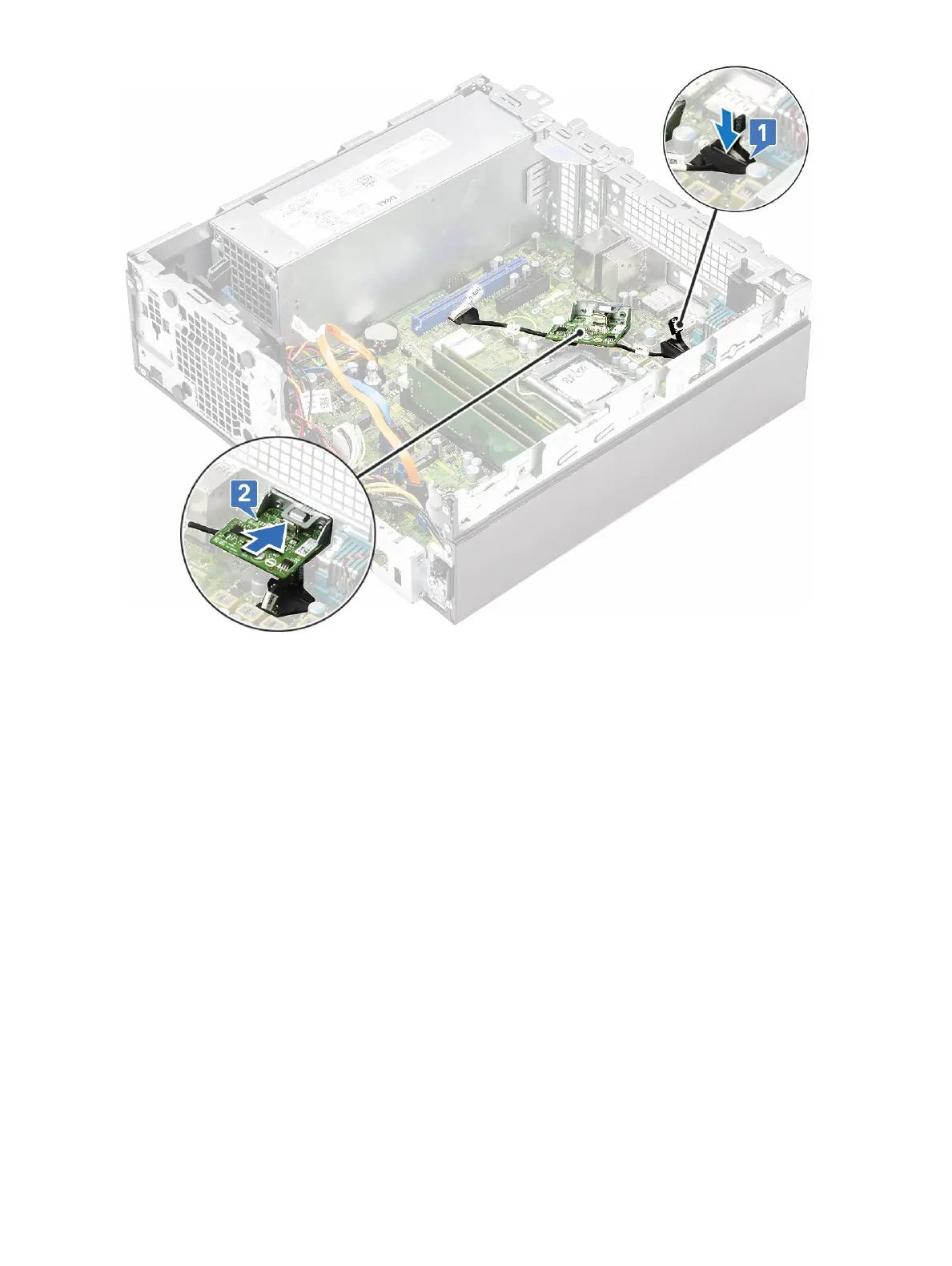

d Connect the USB Type-C card cable to the connector on the system board [1].

e Fasten the two screws to secure the USB Type-C card to the system chassis [2].

Installing the USB Type-C card
