Dell D19M Service Manual

Removing and installing components
Recommended tools
The procedures in this document require the following tools:
• Phillips #0 screwdriver
• Phillips #1 screwdriver
• Plastic scribe
NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4

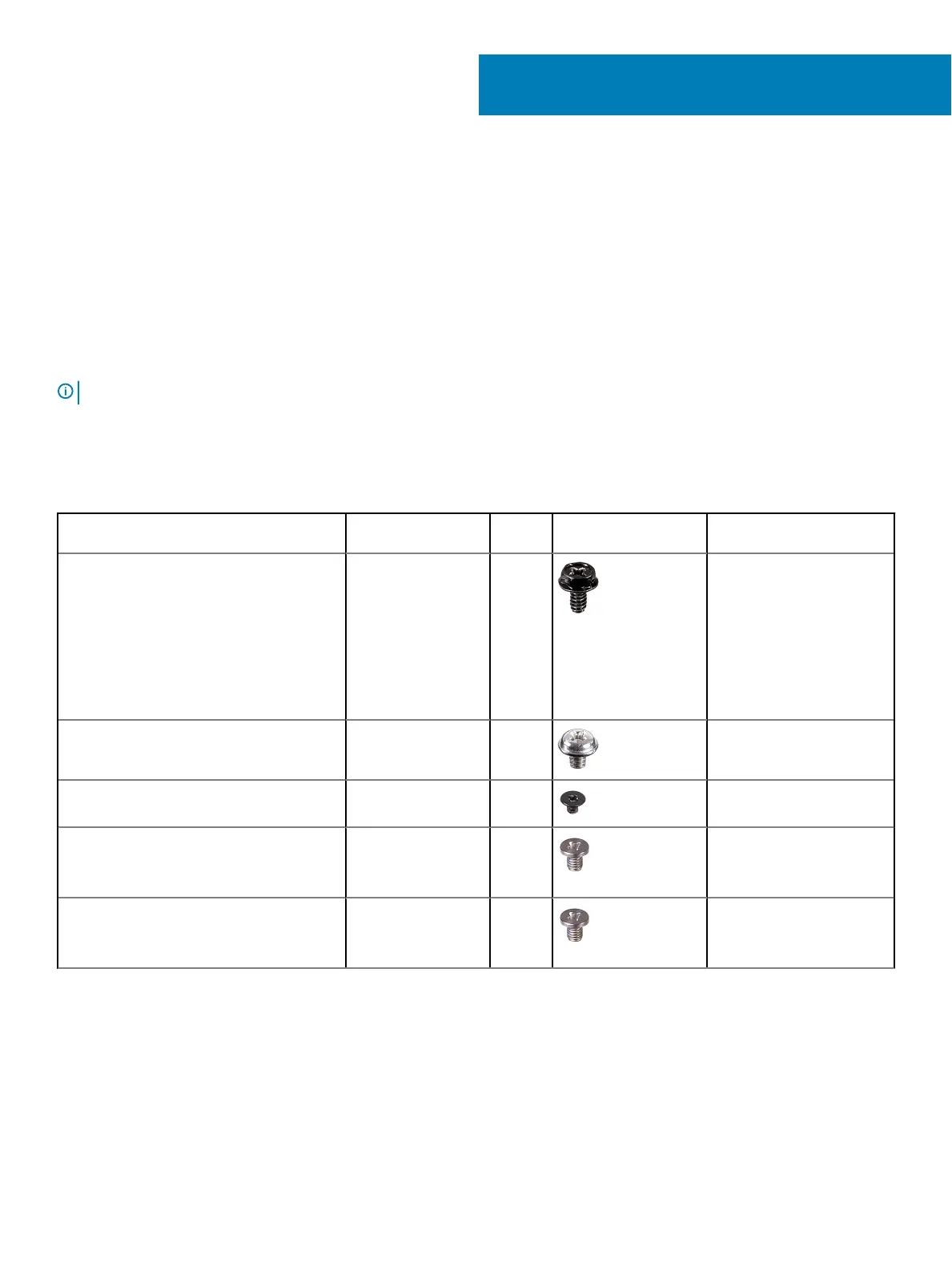

Screw list and images
Table 2. Vostro 3670 screw size list
Component Screw type Quantit
y
Image Color
PSU
Side cover
FIO bracket
Motherboard
PCI bracket
#6.32xL6.35
4
2
1
8
1
Black
3.5 HDD (Optional)
#6.32UNCx3.6
4
Silver
Slim ODD M2x2
2
Black
M.2 SSD card
NGFF card
M2x3.5
1
1
Silver
2.5 HDD (optional 1 pcs)
2.5 HDD (optional 2 pcs)
M3x3.5
2
4
Silver
3
Removing and installing components 11
