Steps
1. Route the cables through the slot on the front panel and align and clip the front bezel into place.
2. Align the screw hole of the cable management cover with the screw hole on the chassis.
3. Replace the two screws (#6-32) that secure the cable management cover to the chassis.
4. Connect the USB cables, LED controller cable and audio cable to the system board and route the cables through the routing
guides on the inside of the chassis.
5. Place the computer in an upright position.

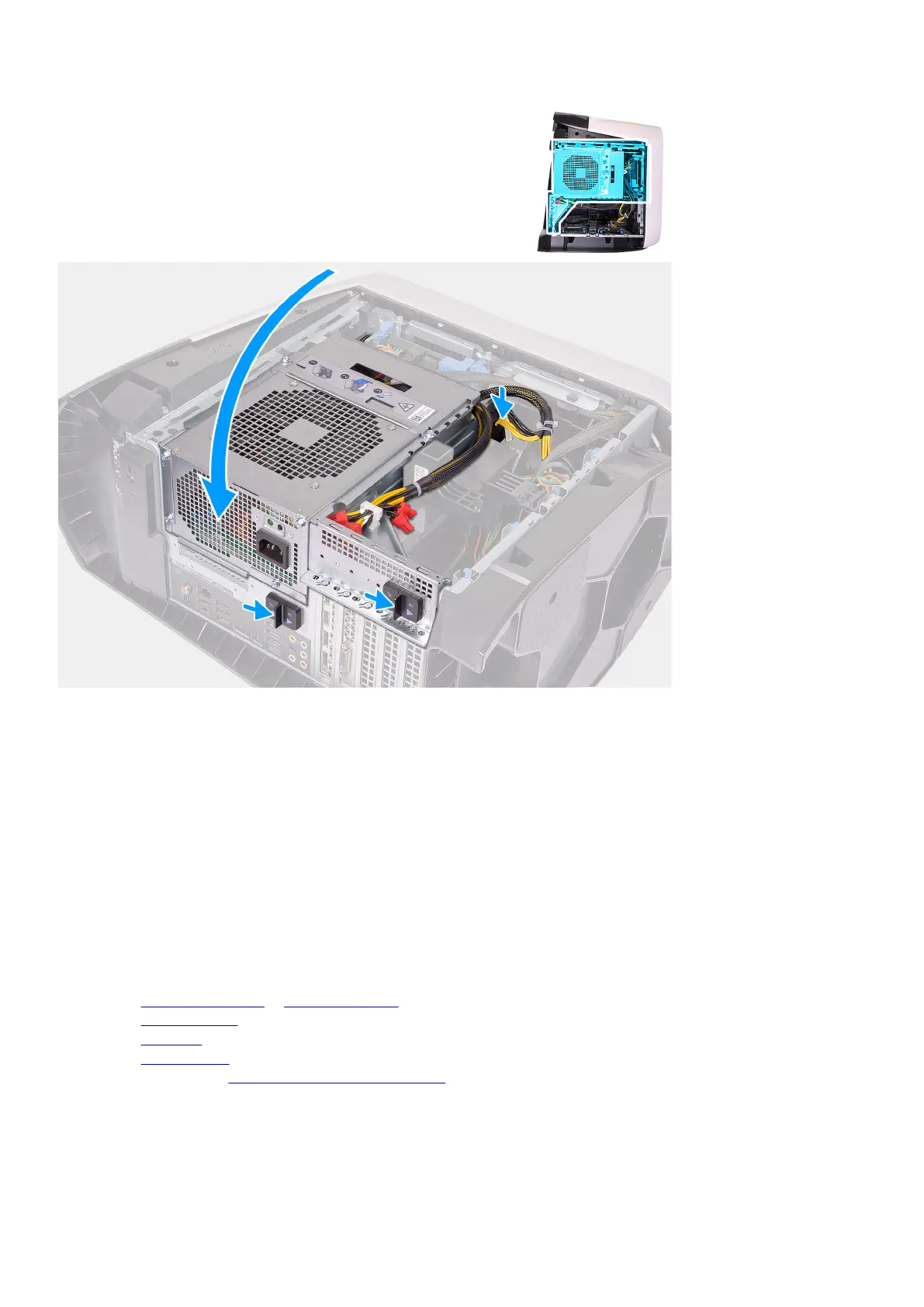

6. Rotate the power-supply unit cage towards the chassis.
7. Connect the power cables to the graphics card.
8. Slide the power-supply unit cage release latches towards the locked position.
9. Route the tron-light cable through the routing guides on the chassis and connect the tron-light cable.
Next steps
1. Install the
single-graphics card or dual-graphics card, as applicable.
2. Install the right-side cover.
3. Install the top-cover.
4. Install the left-side cover.
5. Follow the procedure in After working inside your computer.
