Steps

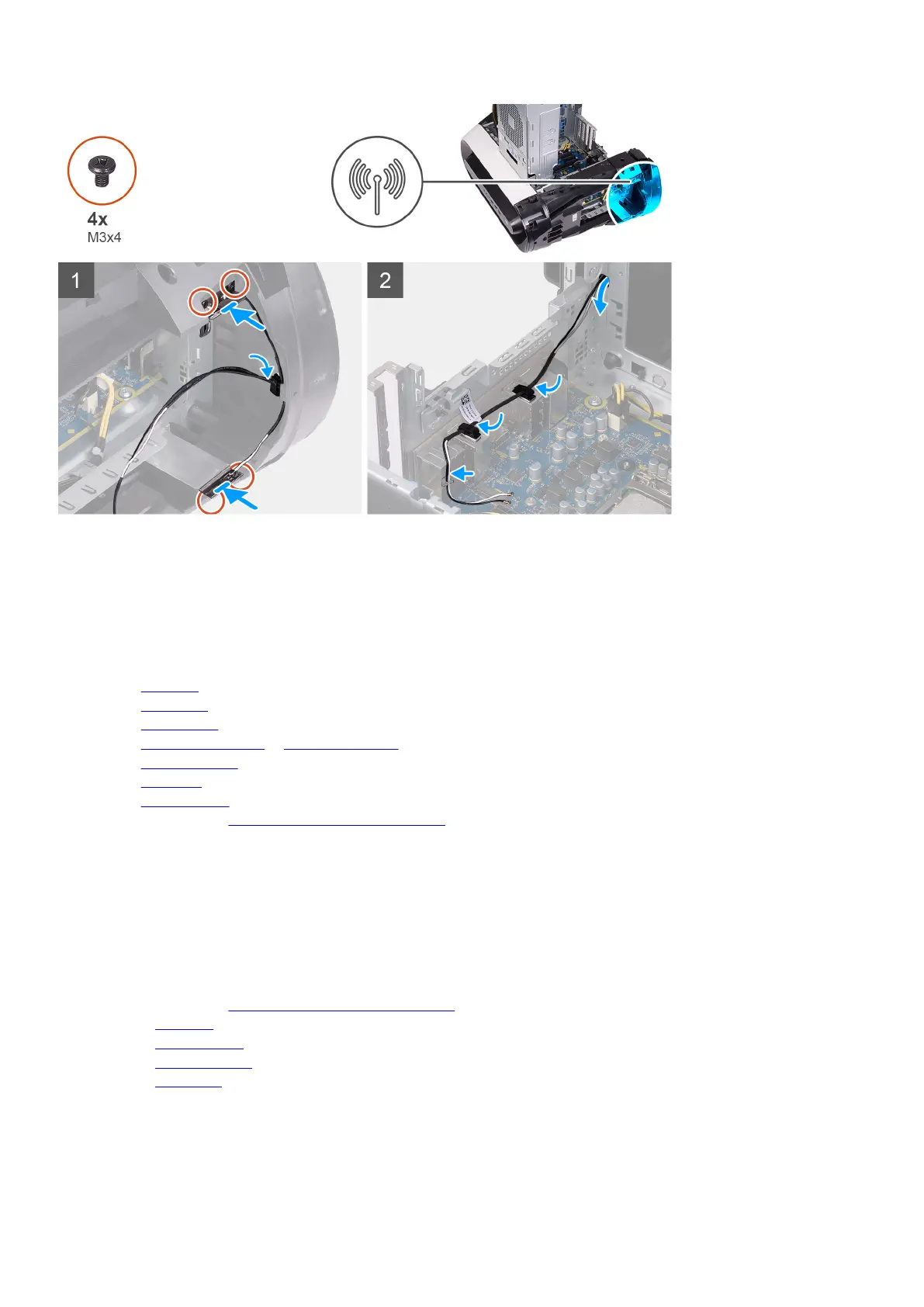

1. Adhere the antenna to the chassis.
2. Replace the four screws (M3x4t) that secures the antennas to the chassis.
3. Route the antenna cables through the routing guides on the top bezel.
Next steps
1. Install the
top bezel.
2. Install the front bezel.
3. Install the wireless card.
4. Install the
single-graphics card or dual-graphics card, as applicable.
5. Install the right-side cover.
6. Install the top-cover.
7. Install the left-side cover.
8. Follow the procedure in
After working inside your computer.
Front I/O-panel
Removing the front I/O panel
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the top cover.
3. Remove the left-side cover.
4. Remove the right-side cover.
5. Remove the front bezel.
About this task
The following images indicate the location of the front I/O-panel and provides a visual representation of the removal procedure.
