Installing the top bezel
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

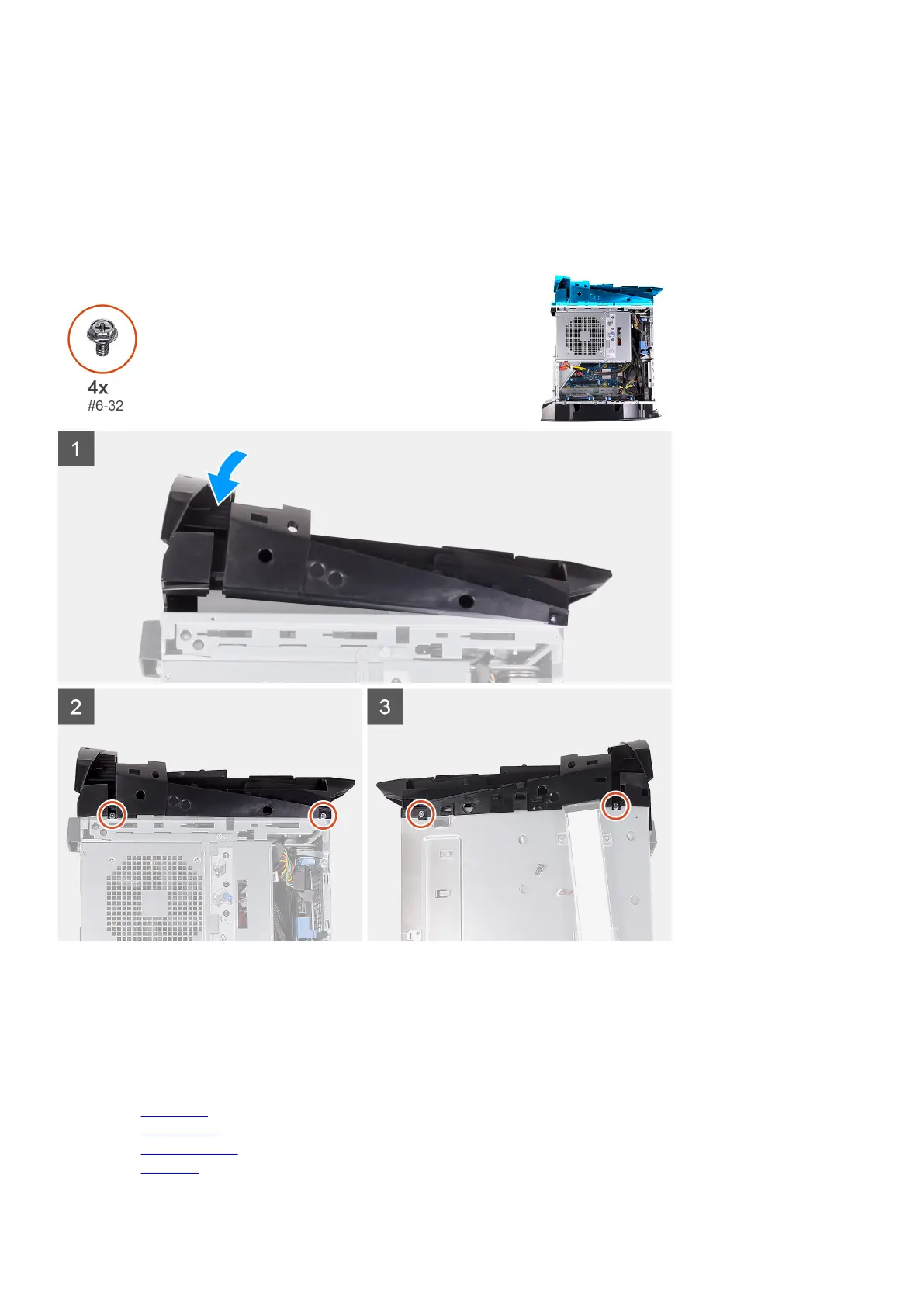

The following images indicate the location of the top bezel and provides a visual representation of the installation procedure.
Steps
1. Route the antenna cable through the slots on the chassis.
2. Align the tabs on the top cover with the slots on the chassis and snap the top cover into place.
3. Replace the four screws (#6-32) that secure the top bezel to the right and left of the chassis.
Next steps
1. Install the front bezel.
2. Install the wireless card.
3. Install the right-side cover.
4. Install the
top cover.
