Removing and Installing Parts 53
Ensure that the card is fully seated and that its bracket is within the card slot.
9
Secure the filler bracket onto the end of the card with the screw you removed in step 7.
10
Connect any cables that should be attached to the card.
See the documentation for the card for information about the card’s cable connections.
NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can cause
damage to the equipment.

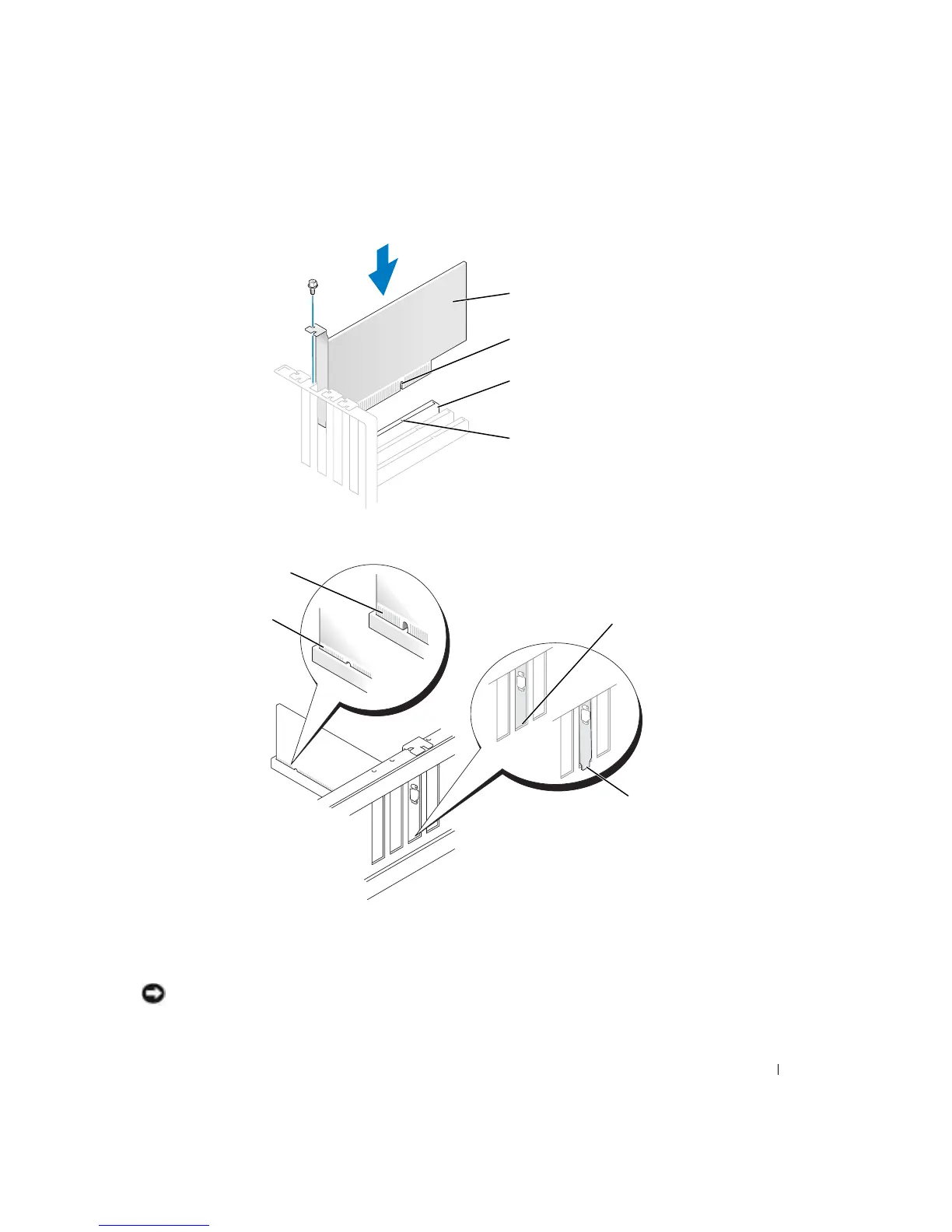

card cutout
card
card connector
on system board
crossbar
fully seated card
not fully seated card
bracket caught
outside of slot
b
r
a
c
k
e
t
w
i
t
h
i
n
s
l
o
t
