15" LCD Color Monitor
Dell
E157FPc
26

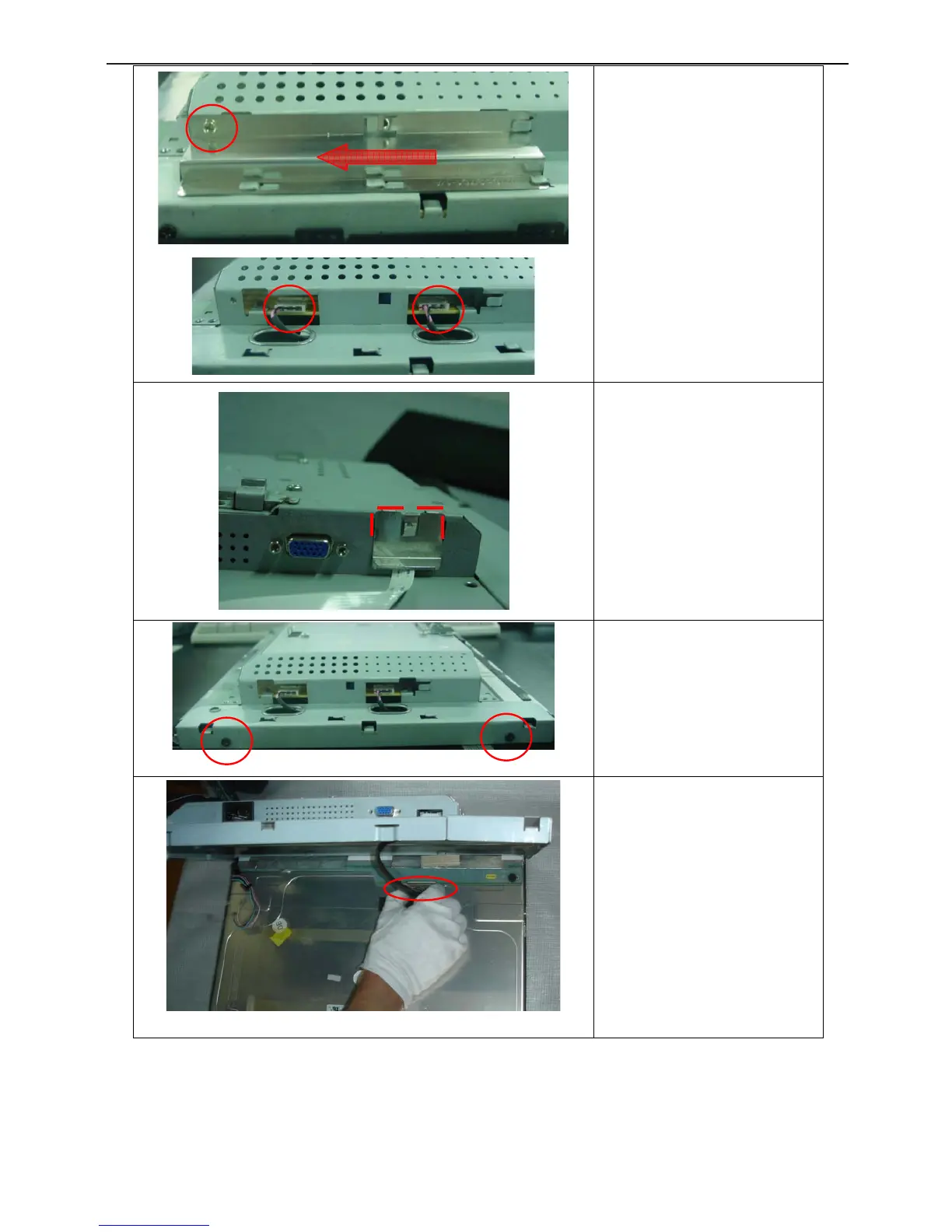

Remove the shield
:
1. Remove the screw by
T
orque
B or by manual
and remove the
shield ,then remove the back
light connec
tor
Remove the co
nnector
Remove the two screws by
manual or torque = 3kgF
.Cm
and
remove the main frame
Remove the main frame and at
the same time disconnect the
L
VDS connector
25
27
Table of Contents
Default Chapter
1
Table of Contents
1
Revision List
2
Important Safety Notice
3
1 Monitor Specifications
4
2 LCD Monitor Description
5
3 Operation Instructions
6
General Instructions
6
Control Buttons
6
On Screen Menu/Display (OSD)
7
Adjusting the Picture
8
4 Input/Output Specification
13
Input Signal Connector
13
Factory Preset Display Modes
13
Power Supply Requirements
14
Panel Specification
15
Definition of Pixel Defects
16
5 Block Diagram
19
Monitor Exploded View
19
Software Flow Chart
20
Electrical Block Diagram
22
6 Mechanical Instruction
24
7 Schematic Diagram
29
Main Board
29
Panel Interface
32
Power Board
34
8 PCB Layout
36
Main Board
36
Power Board
38
Key Board
40
9 Maintainability
41
Equipments and Tools Requirement
41
Trouble Shooting
42
10 White-Balance, Luminance Adjustment
48
11 ISP Instruction
50
12 Check List
56
13 BOM List
59
14 Different Parts List
82
