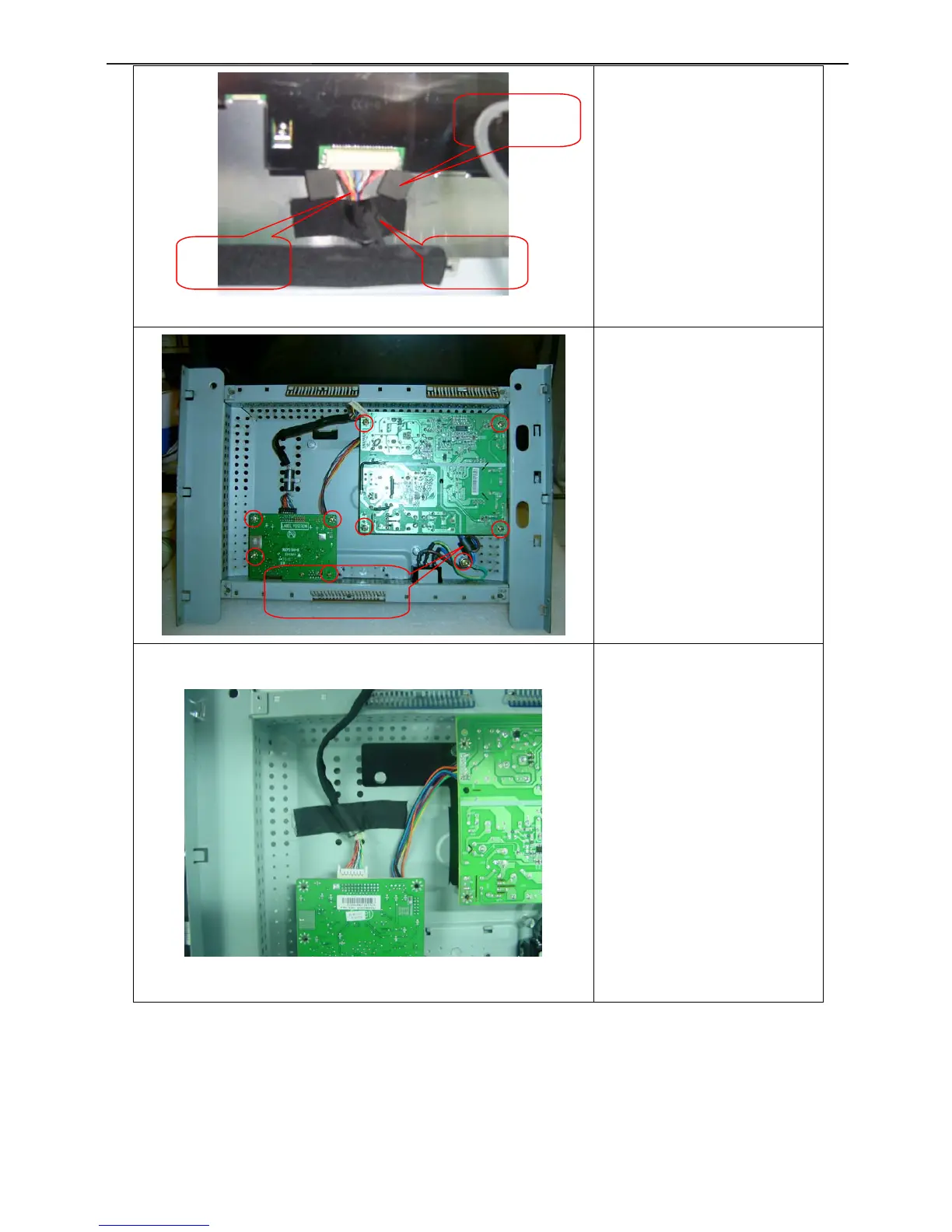

Install:
Fix the LVDS connector by black
tape and EVA washers.
Remove the nine screws by
Torque B and remove the power
board and main board.
Note: Magnetism ring should be
laid at the right of power board
Fix the LVDS cable by black tape
as the figure.
Magnetism ring
Black tape
LVDS Cable
EVA washers
