DELL E173FP Service Manual
6
3. OPERATING INSTRUCTIONS
3.1 GENERAL INSTRUCTIONS
Press the power button to turn the monitor on or off. The other control buttons are located at front panel of
the monitor. By changing these settings, the picture can be adjusted to your personal preferences.
-
The power cord should be connected.
-
Connect the video cable from the monitor to the video card.
-
Press the power button to turn on the monitor, the power indicator will light up.
3.2 CONTROL BUTTONS
- Power Button:
When pressed, the monitor enters the off mode, and the LED turns blank. Press again to restore normal
status.
- Brightness Button:
The Brightness Button is used to select the Brightness/Contrast adjust functions. Press to switch functions
or adjust settings.
- Auto Adjust Key:
The Auto Adjust Key is used to automatically set the H Position, V Position, Clock and Phase.
- Power Indicator:
Green — Power On mode.
Orange — Power Saving mode.
Blank —Power Off Mode.

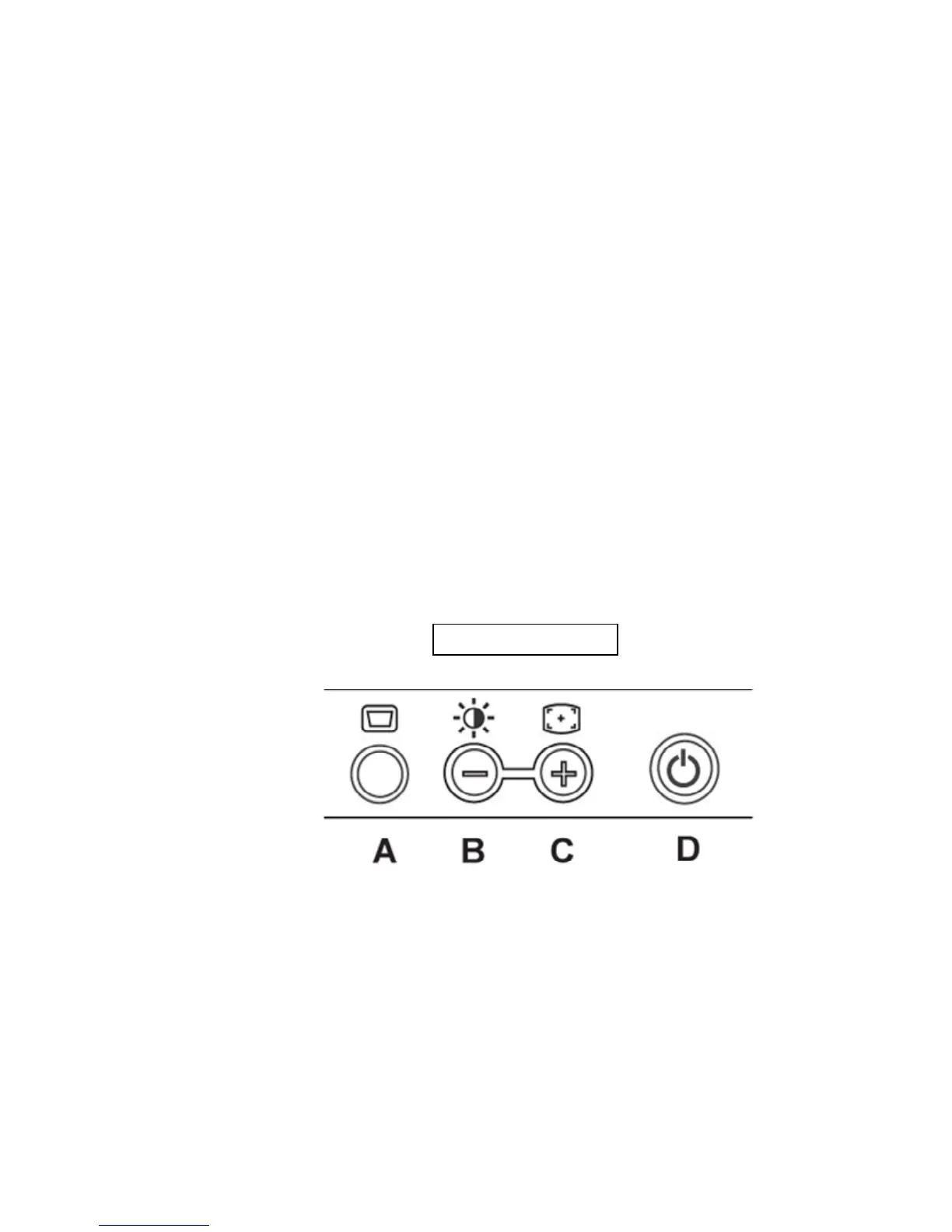

A. Buttons for the OSD menu
(On-Screen-display)
B. Brightness Button
C. Auto Adjust Button
D. Power On/Off Button and indicator
Control Buttons
