Disassembly and reassembly 25
Installing the interface board
Steps

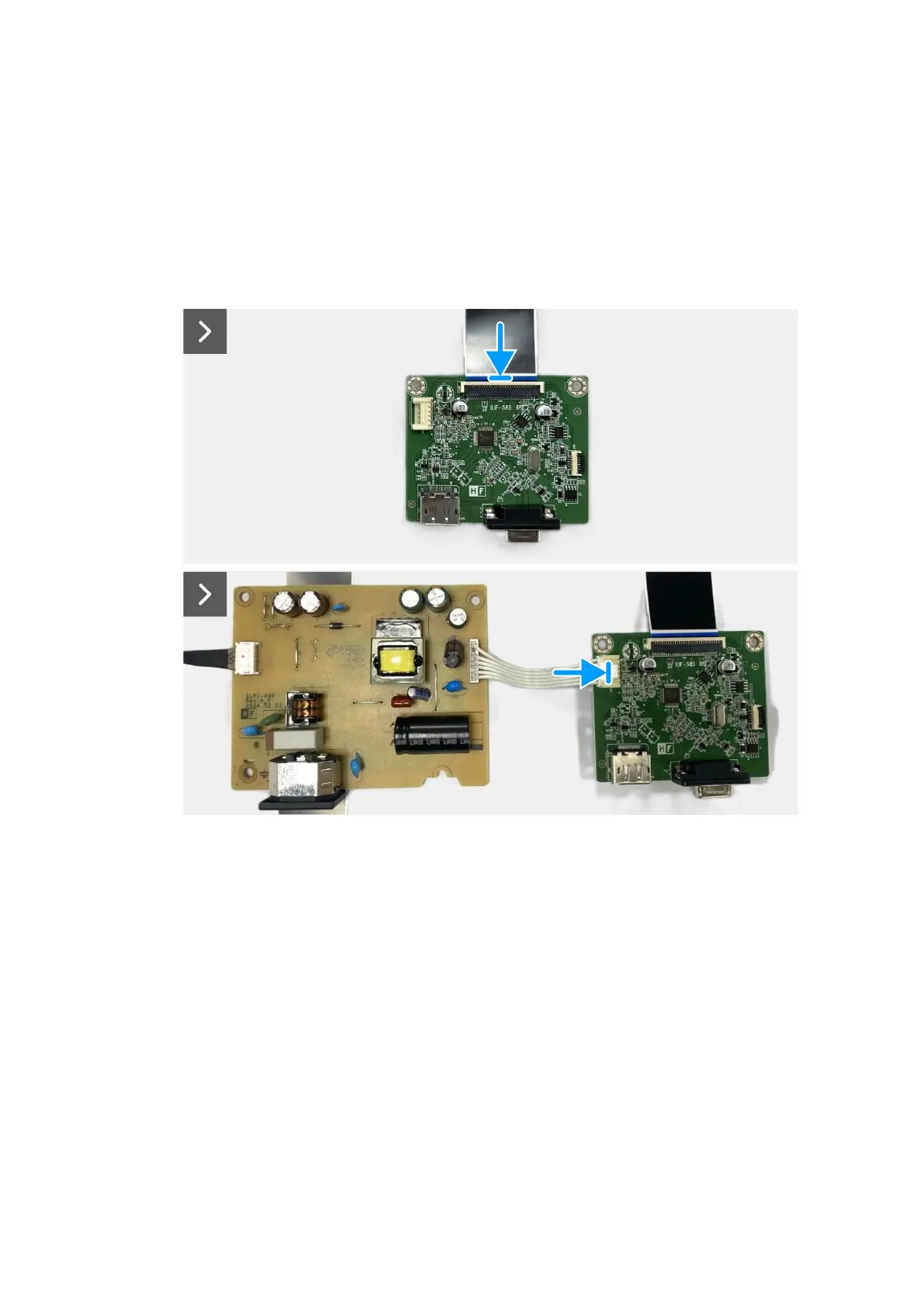

1. Connect the LVDS cable to the connector on the interface board.
2. Connect the power cable to the connector on the interface board.
3. Assemble the interface board and power board to the chassis.
4. Replace the four screws (M3x6) to secure the interface board and power board with the chassis.
5. Replace the screws (M4x9) to secure the power board with the chassis.
6. Replace the two hex screws (#4-40x11.8) to secure the VGA port.
Figure 22. Installing the interface board
