28 Disassembly and reassembly
Installing the power board
Steps
1. Connect the lightbar cable to the connector on the power board.

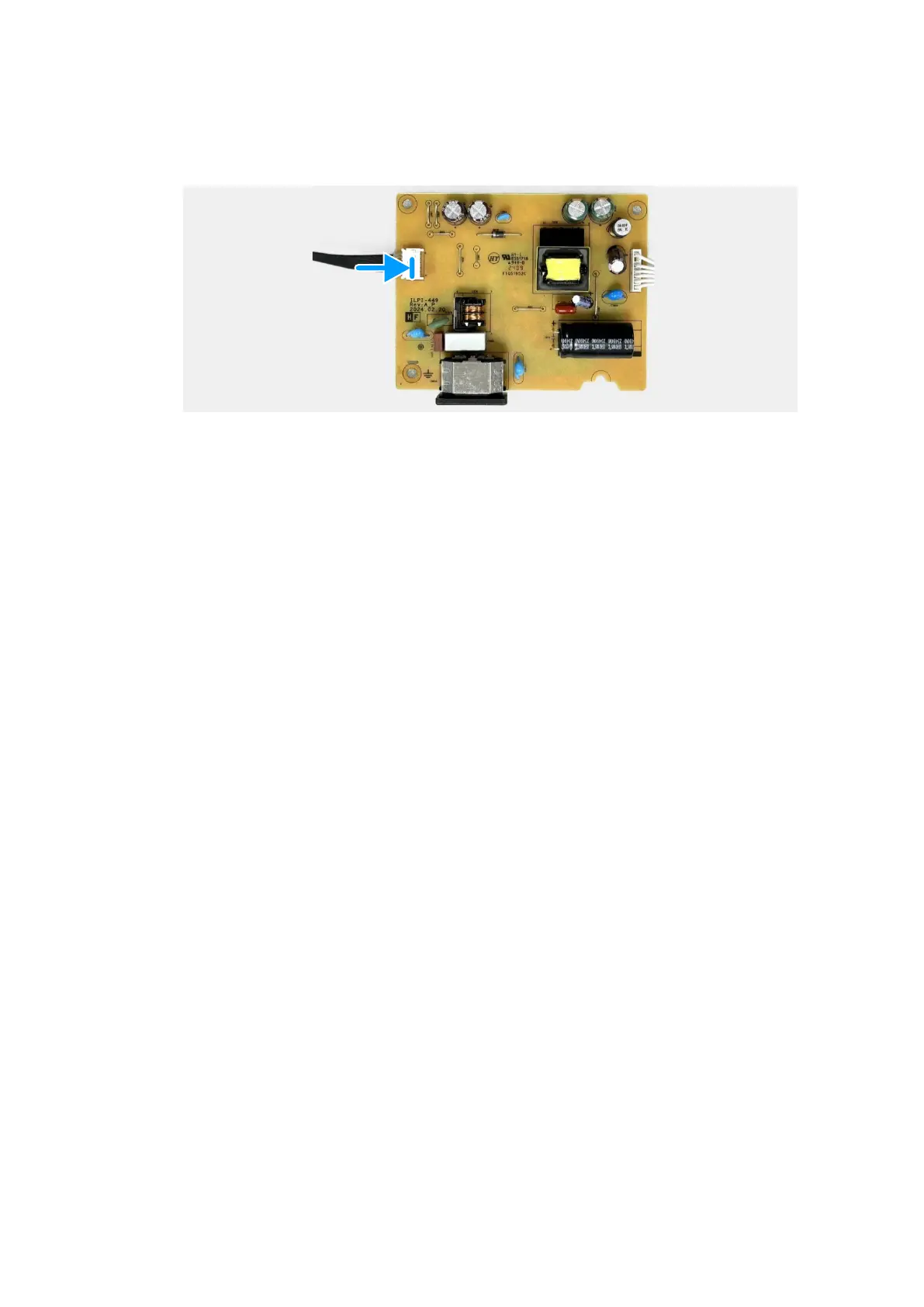

Figure 25. I
nstalling the power board
Next steps
1. Install the interface board.
2. Install the chassis assembly.
3. Install the keypad board.
4. Install the back cover.
5. Install the VESA cover.
6. Install the stand.
7. Follow the procedure in After working inside your monitor.
