Dell E2723HN - Assembly Procedures; Assembling Power and Main Boards; Assembling the Mainframe Component

16

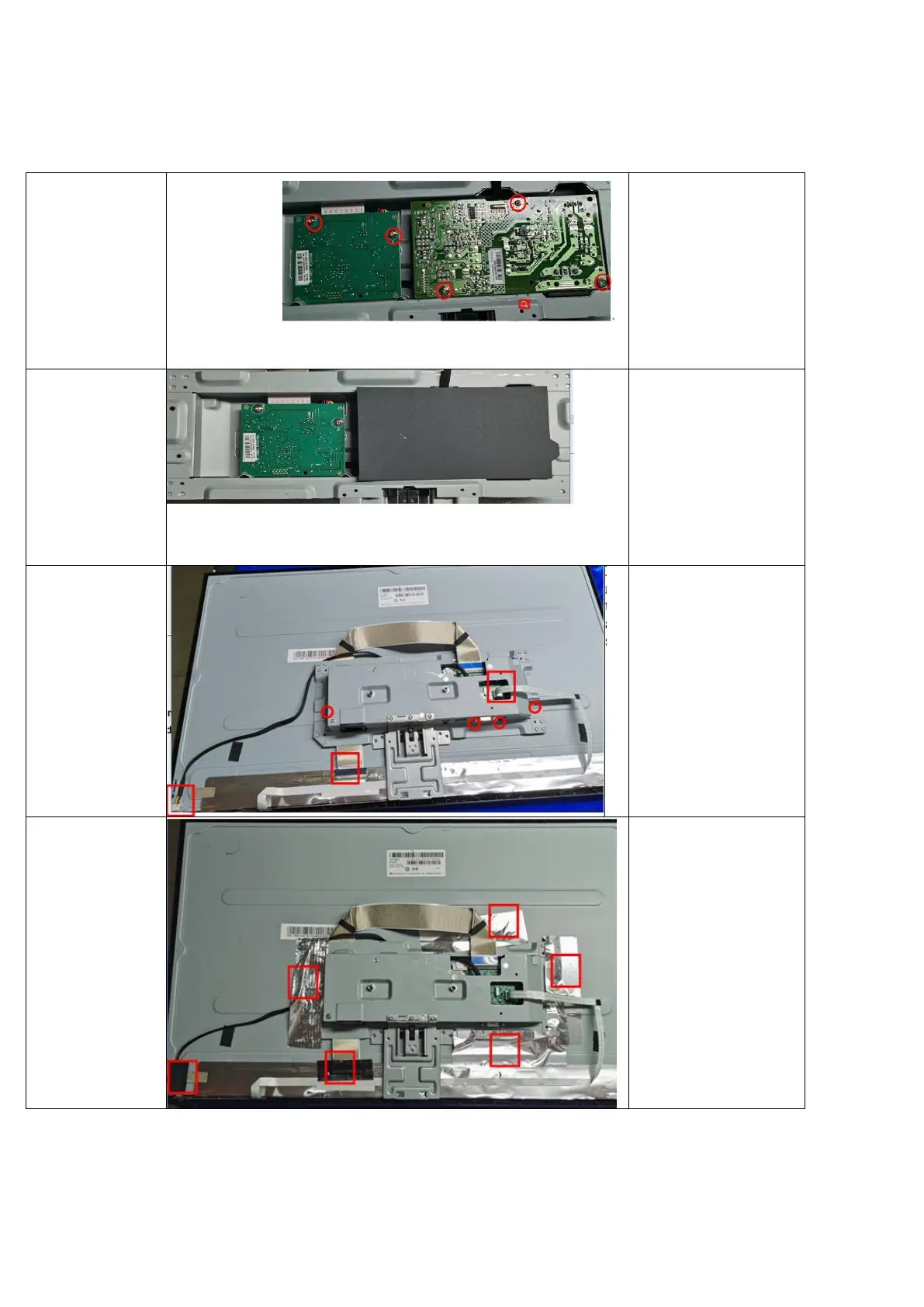

5.2 Assembly Procedures
Assemble
the
powerbard
and
mainboard
Tighten the screws on
the boards
Assemble maylar
connect the cables and
tighten the 2 pcs screws
on the site of the
mainframe and 2 pcs of
hexagon screws
assemble the
mainframe
Re-stick the tapes
