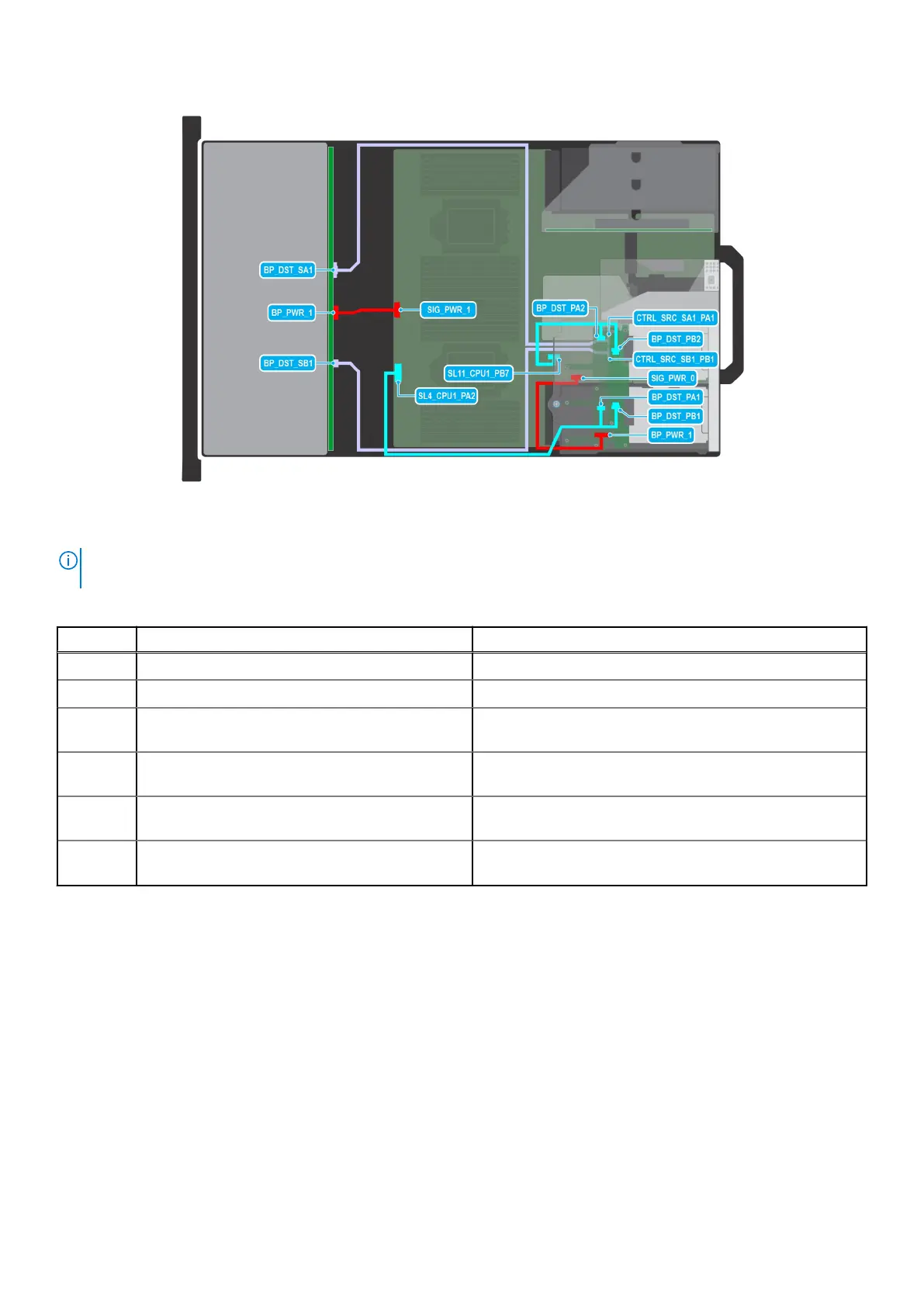

Figure 83. Configuration 7: 12 x 3.5-inch SAS/SATA + 4 x 2.5-inch NVMe with APERC in Riser 2
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 86. 12 x 3.5-inch SAS/SATA + 4 x 2.5-inch NVMe with APERC in Riser 2
Order From To
1 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
2 SIG_PWR_0 (system board power connector) BP_PWR_1 (rear backplane power connector)
3 SL4_CPU1_PA2 (signal connector on system
board)
BP_DST_PA1 (rear backplane signal connector) and
BP_DST_PB1 (rear backplane signal connector)
4 SL11_CPU1_PB7 (signal connector on system
board)
BP_DST_PA2 (rear backplane signal connector) and
BP_DST_PB2 (rear backplane signal connector)
5 CTRL_SRC_SB1_PB1 (adapter PERC controller
connector)
BP_DST_SB1 (backplane signal connector)
6 CTRL_SRC_SA1_PA1 (adapter PERC controller
connector)
BP_DST_SA1 (backplane signal connector)
