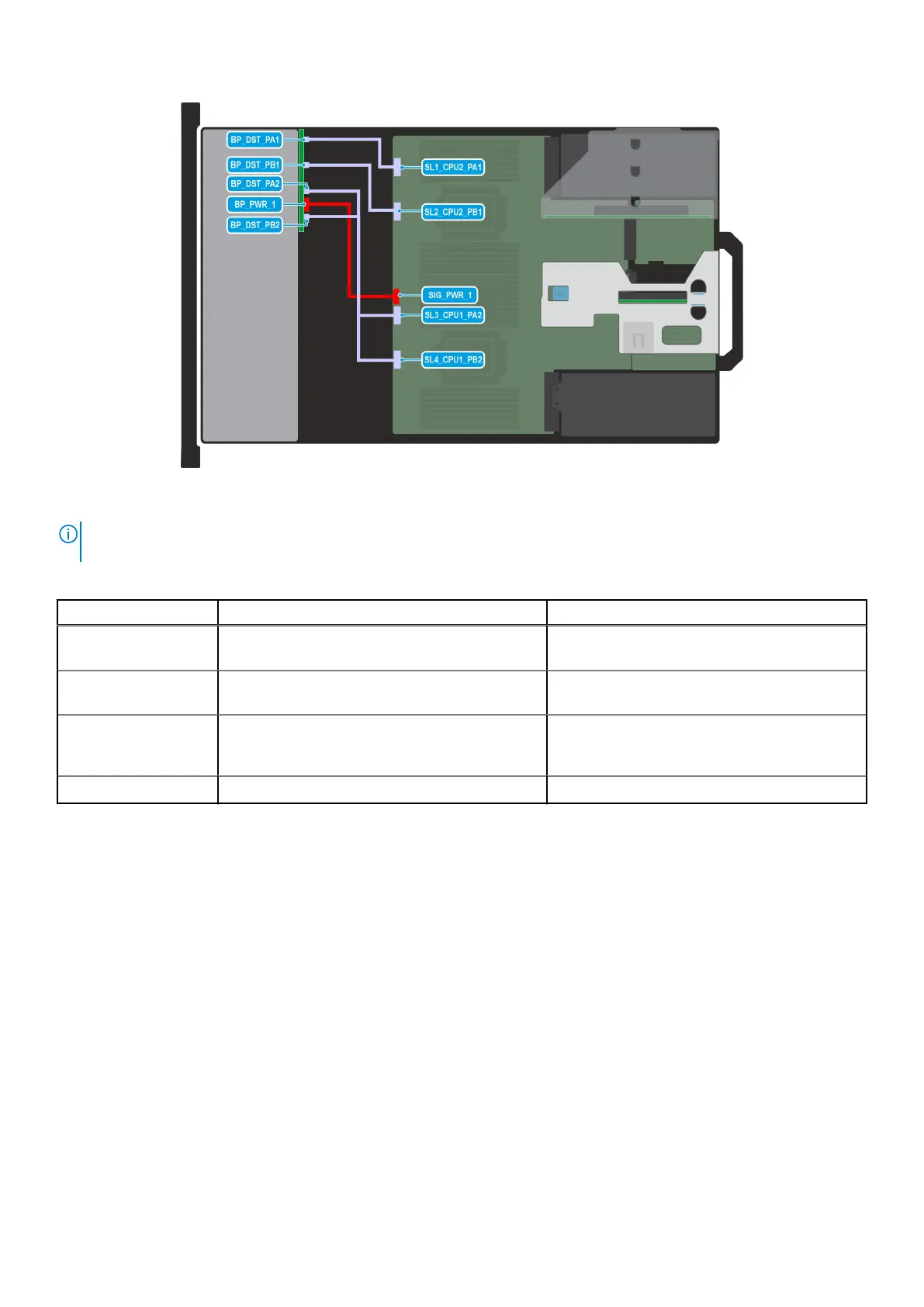

Figure 84. Configuration 8: 8 x 2.5-inch NVMe
NOTE: Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 87. 8 x 2.5-inch NVMe
Order From To
1 SL1_CPU2_PA1 (signal connector on system
board)
BP_DST_PA1 (backplane signal connector)
2 SL2_CPU2_PB1 (signal connector on system
board)
BP_DST_PB1 (backplane signal connector)
3 SL3_CPU1_PA2 (signal connector on system
board) and SL4_CPU1_PB2 (signal connector on
system board)
BP_DST_PA2 (backplane signal connector) and
BP_DST_PB2 (backplane signal connector)
4 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
